ESS Connection Solution - Microtech Plus, Your Connection Solution Expert.

ESS cable assemblies and connectors are used for battery Energy Storage Systems. They connect the positive and negative electrodes of each battery module in the system.

For ESS connection cable assemblies, there are several types in the market. And our ESS connection solutions have all been proven to be reliable and good quality by many customers.

If you are in the ESS field and need someone to solve your connection solution, we will be one of your most trustworthy parters !

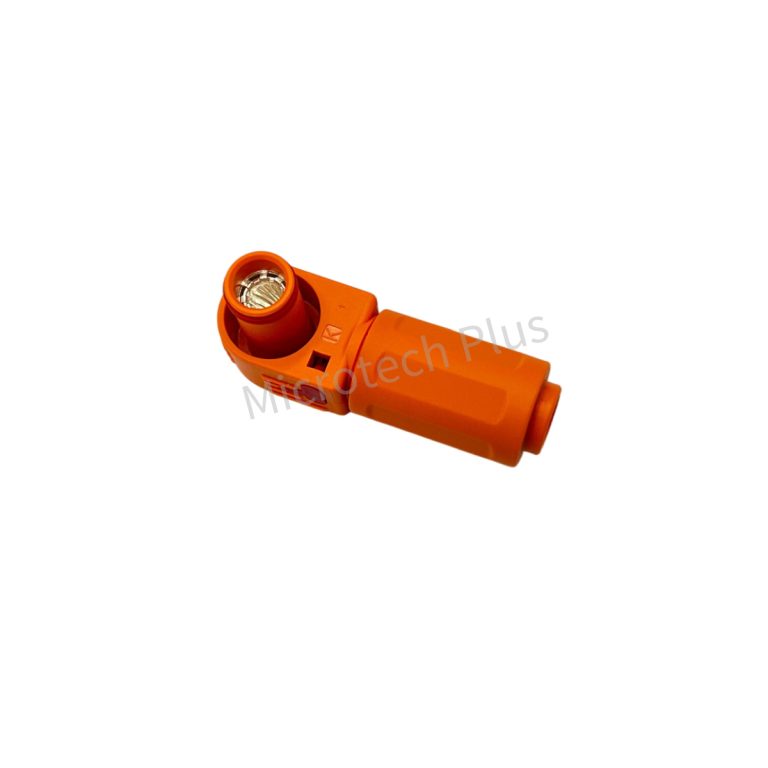

Quick plug ESS connector. The currents cover 60A (10mm² wire), 80A (16mm² wire), 120A (25mm² wire), 150A (35mm² wire), 200A (50mm² wire), 250A (70mm² wire), 310A (95mm² wire), 350A (120mm² wire), 420A (150mm² wire), 450A (150mm² wire), 500A (185mm² wire).
Stacked Connector for Home Use ESS. The currents cover 60A (10mm² wire), 100A (25mm² wire). The connector’s structure includes 3 power plus 12 signals, 3 power plus 14 signals, 5 power plus 12 signal etc.
Bolt Connector for ESS. The current can be from 250A to 600A.
Manual Service Disconnector(MSD), from 200A-630A.

High Voltage / High Current Becoming the Norm. The voltage platform for energy storage systems is generally evolving from 1000V toward 1500V, even 2000V. Meanwhile current ratings are increasing from the previous 120A and 200A levels to 300A, 500A, and even 600A.
Material and Process Upgrades. To address the heat generation issues associated with high power, connectors are beginning to adopt high-conductivity copper alloy spring contacts. These types of contacts can dramatically reduce contact resistance. Meanwhile, housing materials are being upgraded to high-grade engineering plastics. For example, people choose flame-retardant PA66/PC to meet the UL 94 V-0 flammability rating requirements.
Liquid Cooling Technology. In high-current applications exceeding 500A (such as commercial & industrial energy storage, and large containerized energy storage systems), traditional air cooling can no longer meet heat dissipation needs. Liquid-cooled energy storage connectors are becoming a key differentiating technology.
Rise of Flexible Busbar. Inside the compact space of battery packs, traditional bulky wiring harnesses are difficult to route. Flexible busbars are being increasingly used in large-scale energy storage systems, because they have obvious advantages such as customizable bending shapes, small footprint, and excellent heat dissipation performance.

Complete Models
