W1P 200A-630A MSD Plug

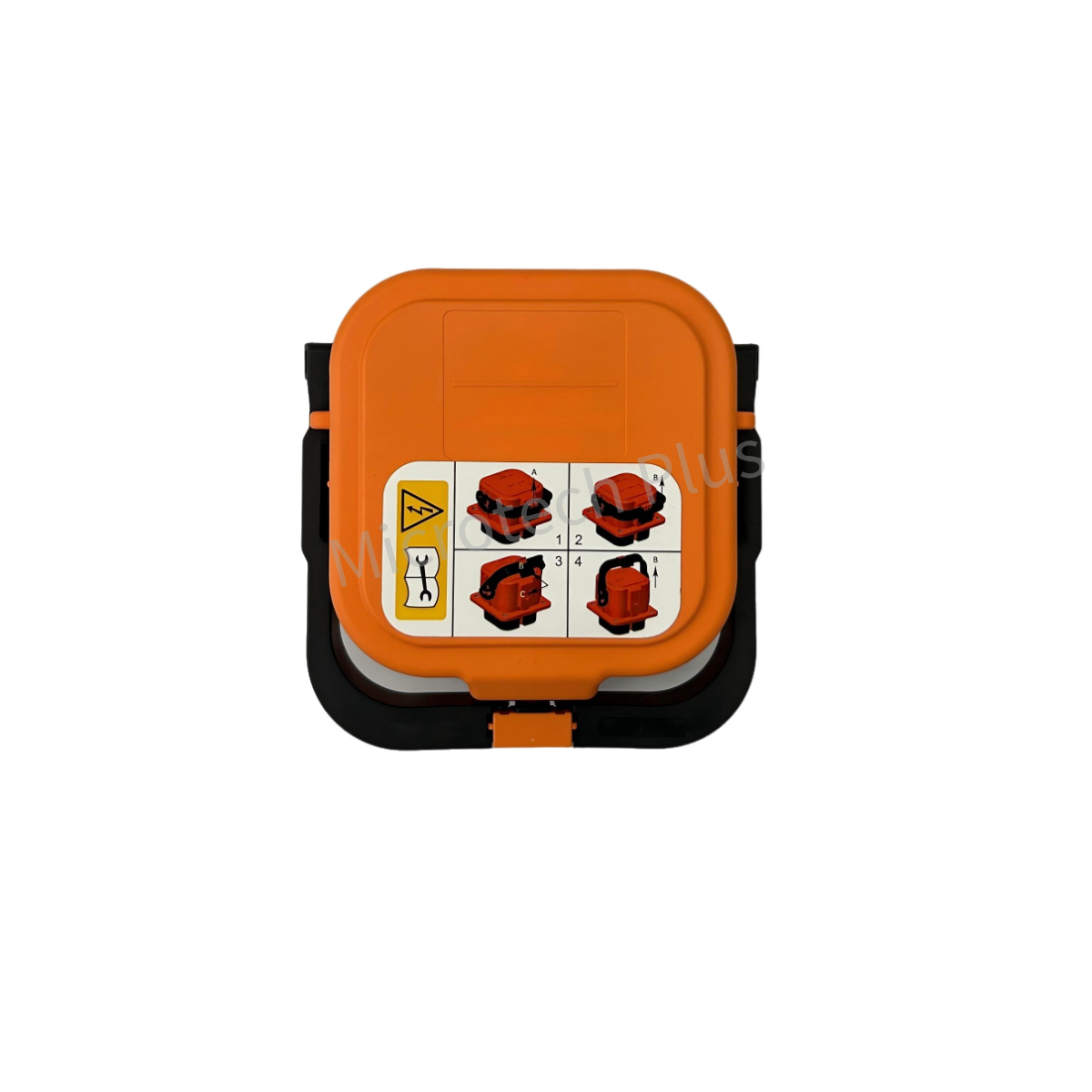

EV Plastic 200A-630A MSD(Manual Service Disconnector)-Plug 1-W

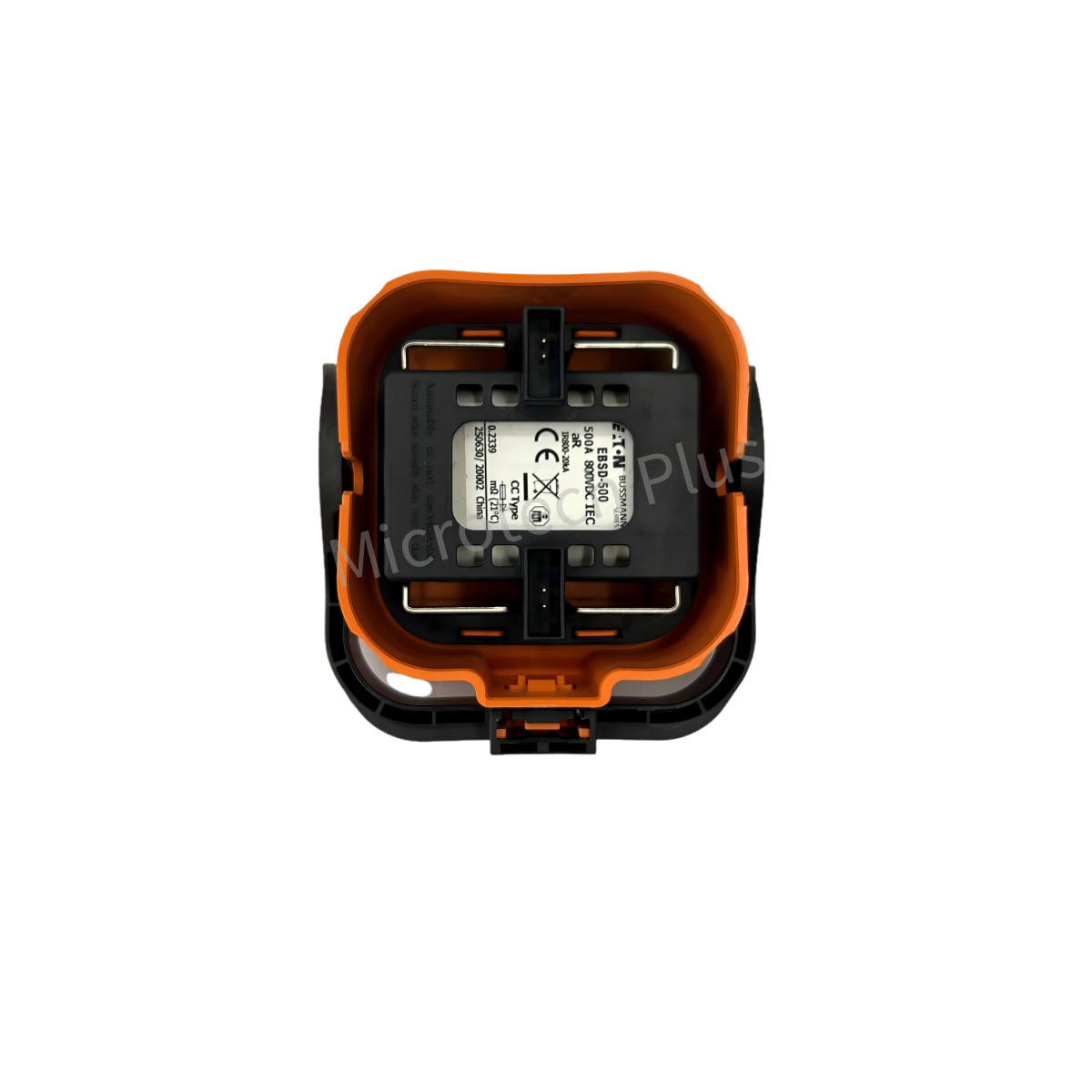

EV Plastic 200A-630A MSD(Manual Service Disconnector)-Plug 2-W

Categories EV Connector, MSD(Manual Service Disconnector) Tags 200A, 250A, 315A, 350A, 400A, 450A, 500A, 550A, 630A, MSD

This product (plug) is mainly applies to electric vehicles battery and high voltage switch box.

Additional information

Application	Electric Vehicle (EV)
Series Name	W1P
Standard	IEC
Material	Plastic
Voltage	800V
Current	200A, 250A, 315A, 350A, 400A, 450A, 500A, 550A, 630A
Plug/Receptacle	Plug
HVIL or Not	No HVIL
Shielding or Not	No Shield
IP Degree	IP67

Product Details：

The mated receptacle is as below.

General Information

This is an EV high-voltage manual service disconnector(plug). It mainly applies to electric vehicles battery and high voltage switch box.

Features and Advantages

Special heat dissipation of copper bar
Two poles unlock opening method
Multiple fuse specifications can be selected
IP67 sealing performance
Reliable manual power‑off for EV battery packs

Key Specifications

Rated Voltage: 800V DC
Rated Current @ambient temperature 30℃
Insulation resistance: 2000 MΩ Min.
Withstand Voltage: 2500 V AC
Protection Rating: IP67
Ambient Temperature: -40℃～+125℃
Fuse Protector Type: 200A-630A
Mechanical Life: ≥ 500 times/cycles
Housing and Insulator Material: PA66
Insulator Flame Retardant Rating: UL94 V-0
Copper bar and socket contact: Copper, Copper alloy, Silver-plated
Seals: Silicon rubber

Ordering Information

You can base on below information to choose the specification and ask quote from us.

Fuse Protector Type: 9 specifications
- 200A (Bussmann and Sinofuse fuses are optional)
- 250A (Bussmann and Sinofuse fuses are optional)
- 315A (Bussmann and Sinofuse fuses are optional)
- 350A (Bussmann and Sinofuse fuses are optional)
- 400A (Bussmann and Sinofuse fuses are optional)
- 450A (Bussmann fuse is optional)
- 500A (Bussmann and Sinofuse fuses are optional)
- 550A (Bussmann fuse is optional)
- 630A (Bussmann and Sinofuse fuses are optional)

Drawing

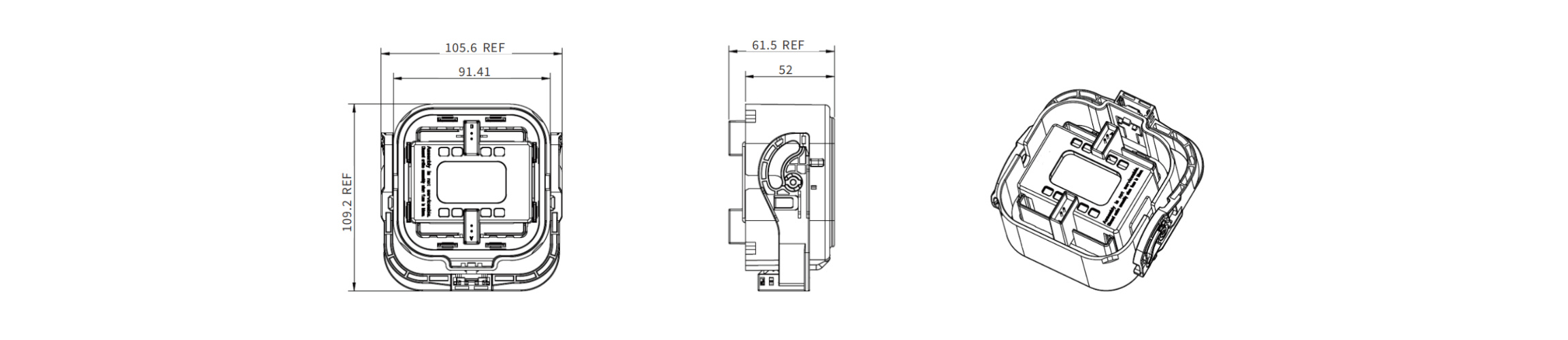

Overall Dimensions
