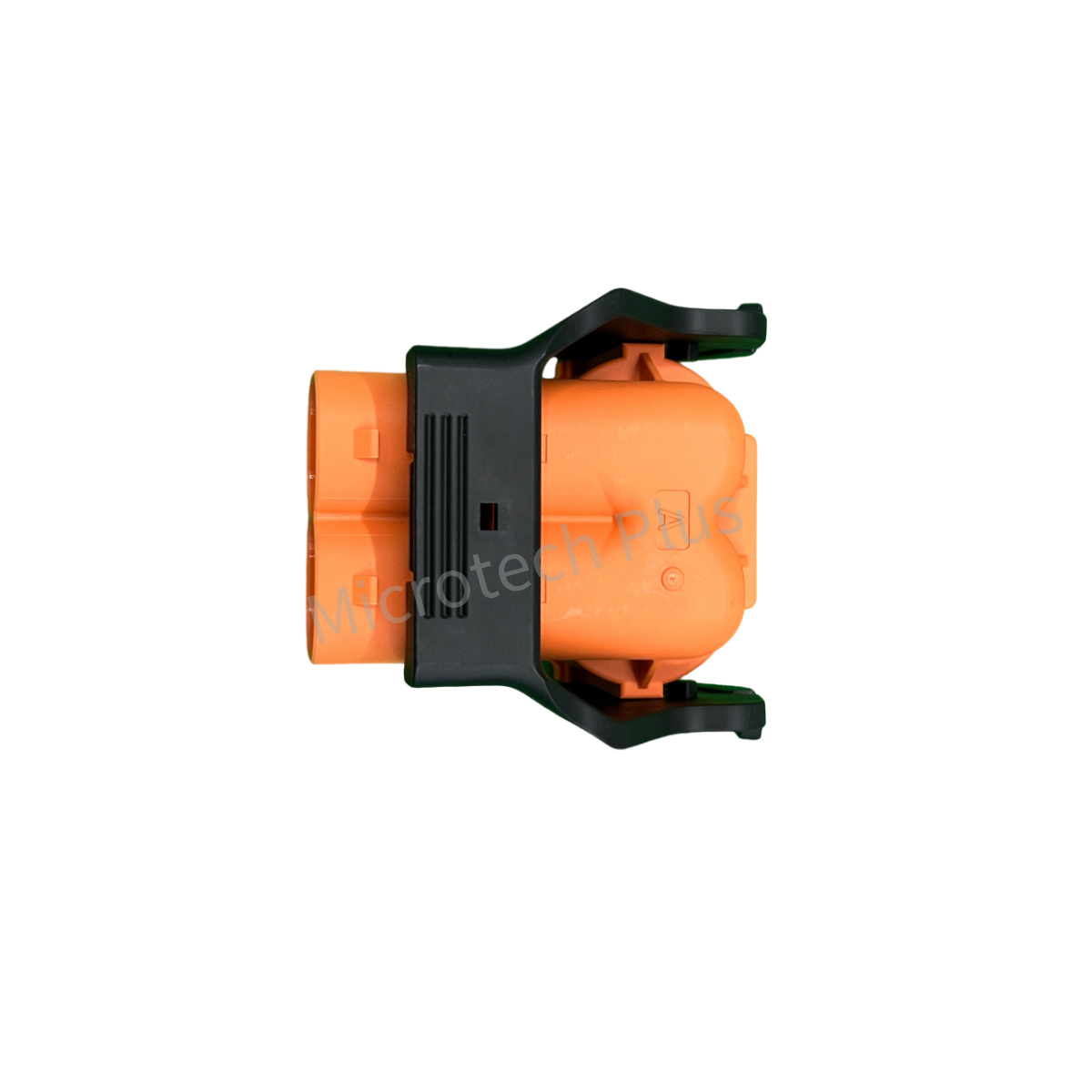

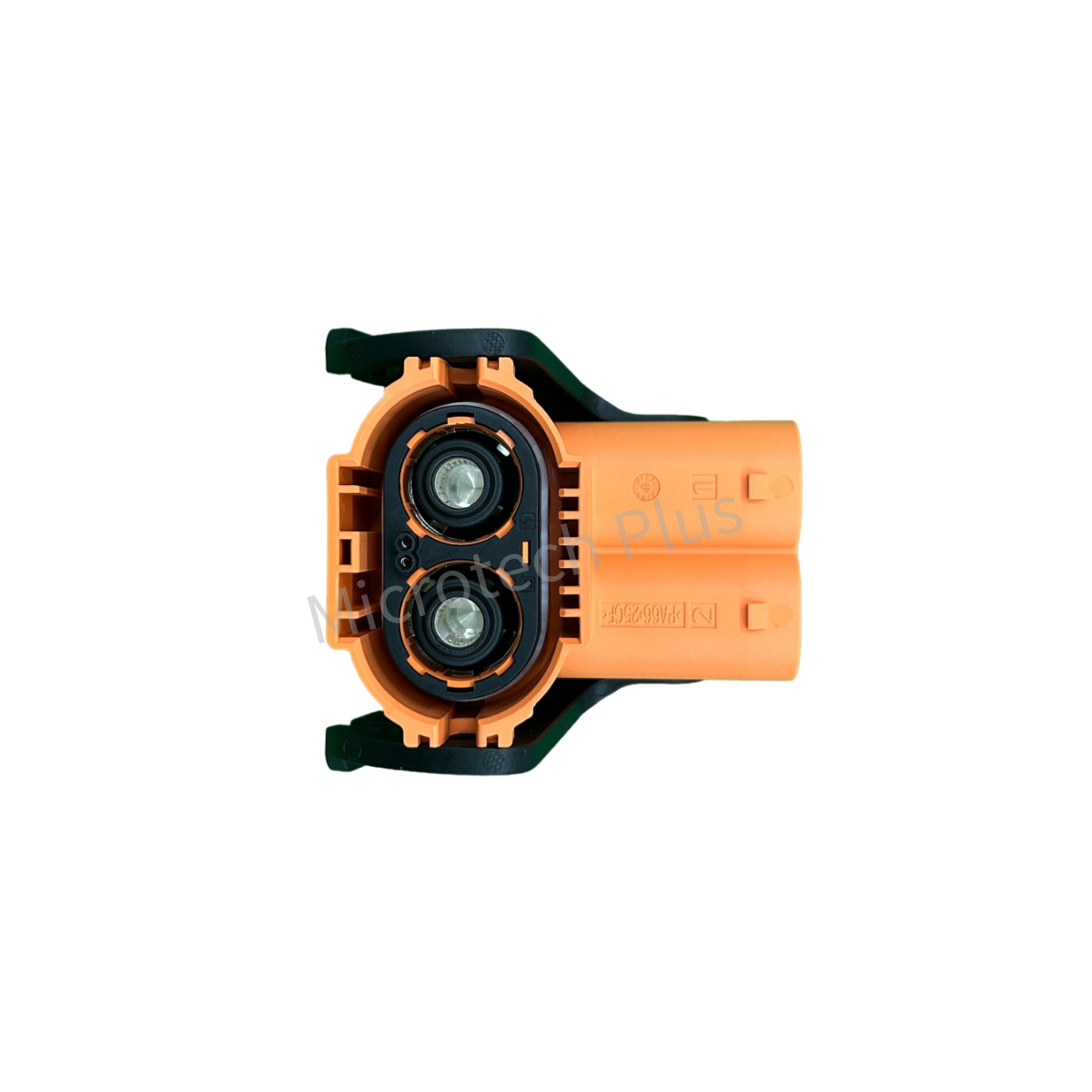

W1P 2 Pin 80A 120A 150A 200A Plastic Plug

This product (plug) is normally applied to high current units connection in the Electric Vehicle (EV), like battery pack, motor controller, PDU etc.

Additional information

This is an EV plastic 2 pins connector (Plug), and rated current can be 130A, 200A, 250A, and 300A. It mainly applied to battery positive(+), negtive(-), connection from PDU to MCU, MCU to Motor, charging inlet to battery system, and between different battery packs, etc.

Rated Voltage: DC 1000V
Rated Current: 80A, compatible with 16 mm² wire; 120A, compatible with 25 mm² wire; 150A, compatible with 35 mm²; 200A, compatible with 50 mm².
Withstand Voltage: AC 3000V
Insulation Resistance: ≥3000MΩ Min
Protection Rating: IP67
Flame Retardant Rating: UL94-V0
Vibration Rating: USCAR-2 V2
Mechanical Life: 500 times/cycles min.
Ambient Temperature: -40℃- +125℃
HVIL Function: Yes
Shielding: 360°
Salt Spray Resistance: 96 Hours

You can base on below information to choose the specification and ask quote from us.

Specification No. 1
- Rated current: 80A, compatible with 16mm² shielding cable.
- Shape: You can choose Straight Type or Right Angle Type.
- Keys: A, B, D, E(Just structure is different, same color)
- OD:
Specification No. 2
- Rated current: 120A, compatible with 25mm² shielding cable.
- Shape: You can choose Straight Type or Right Angle Type.
- Keys: A, B, D, E (Just structure is different, same color)
- OD:
Specification No. 3
- Rated current: 150A, compatible with 35mm² shielding cable.
- Shape: You can choose Straight Type or Right Angle Type.
- Keys: A, B, D, E (Just structure is different, same color)
- OD:

Specification No. 4
- Rated current: 200A, compatible with 50mm² shielding cable.
- Shape: You can choose Straight Type or Right Angle Type.
- Keys: A, B, D, E (Just structure is different, same color)
- OD:

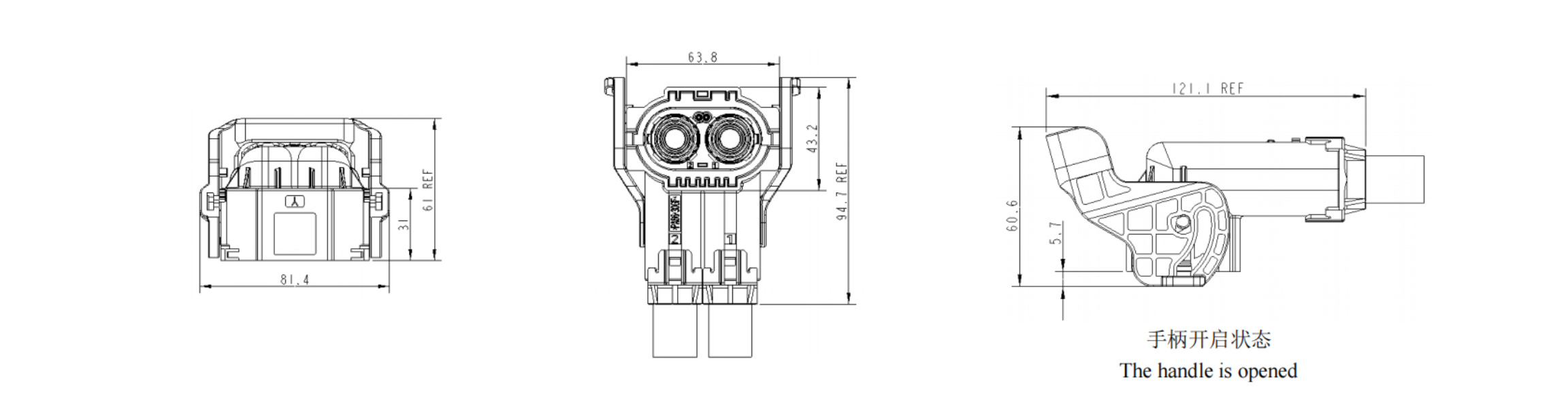

Overall Dimensions
