W1P 2 Pin 20A 25A 40A Plastic Plug

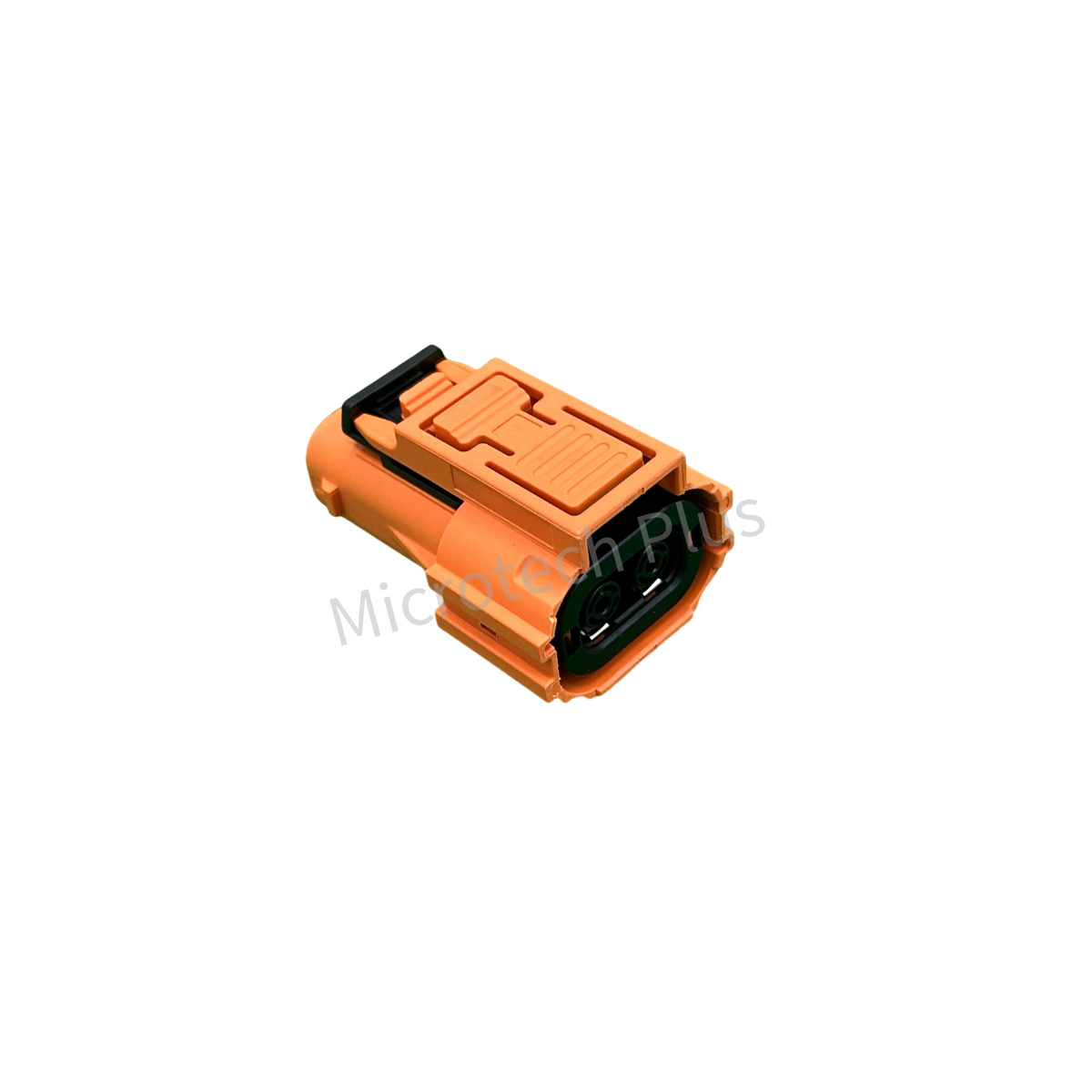

EV Plastic 2 Pin 20A 25A 40A Connector-Plug 1-W

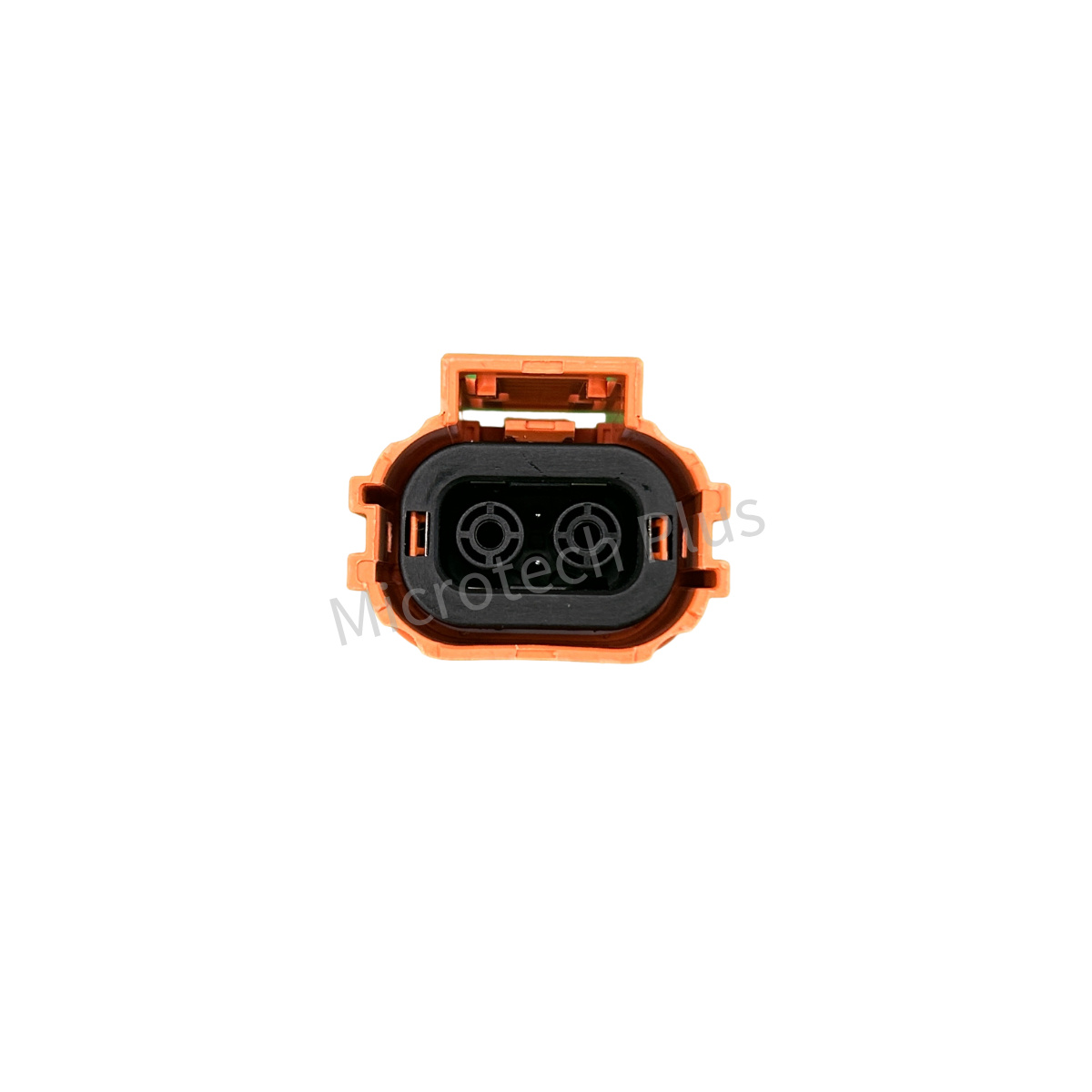

EV Plastic 2 Pin 20A 25A 40A Connector-Plug 2-W

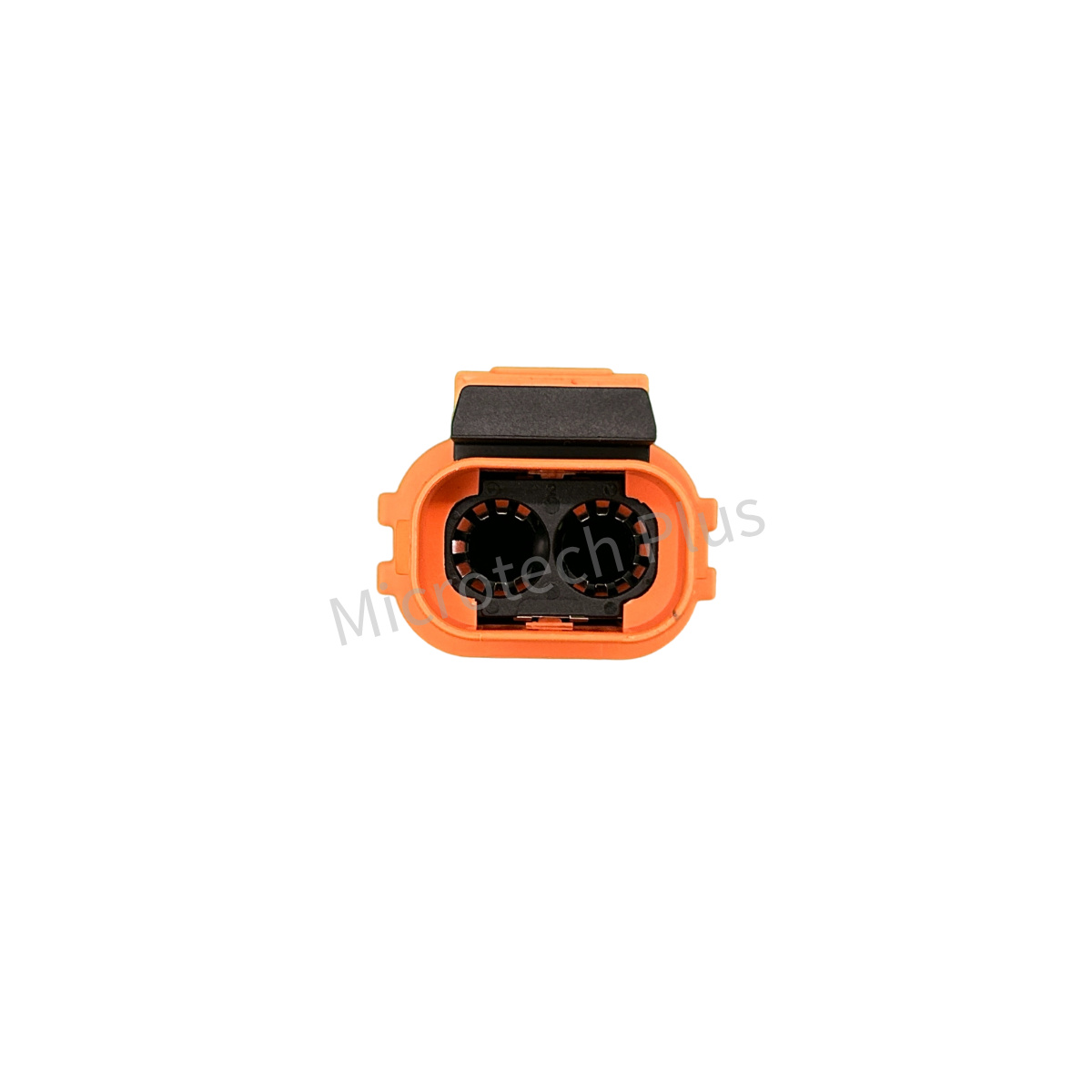

EV Plastic 2 Pin 20A 25A 40A Connector-Plug 3-W

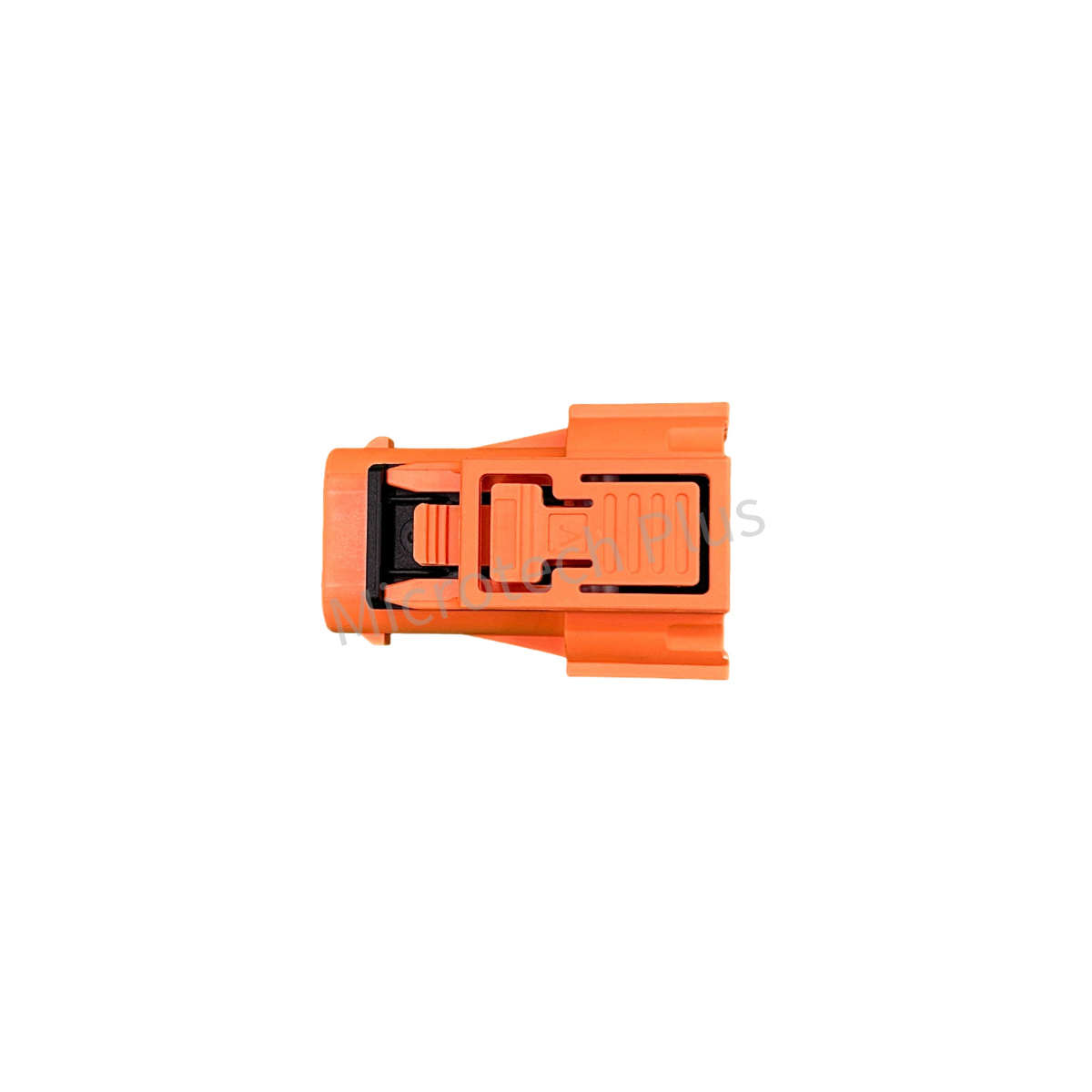

EV Plastic 2 Pin 20A 25A 40A Connector-Plug 4-W

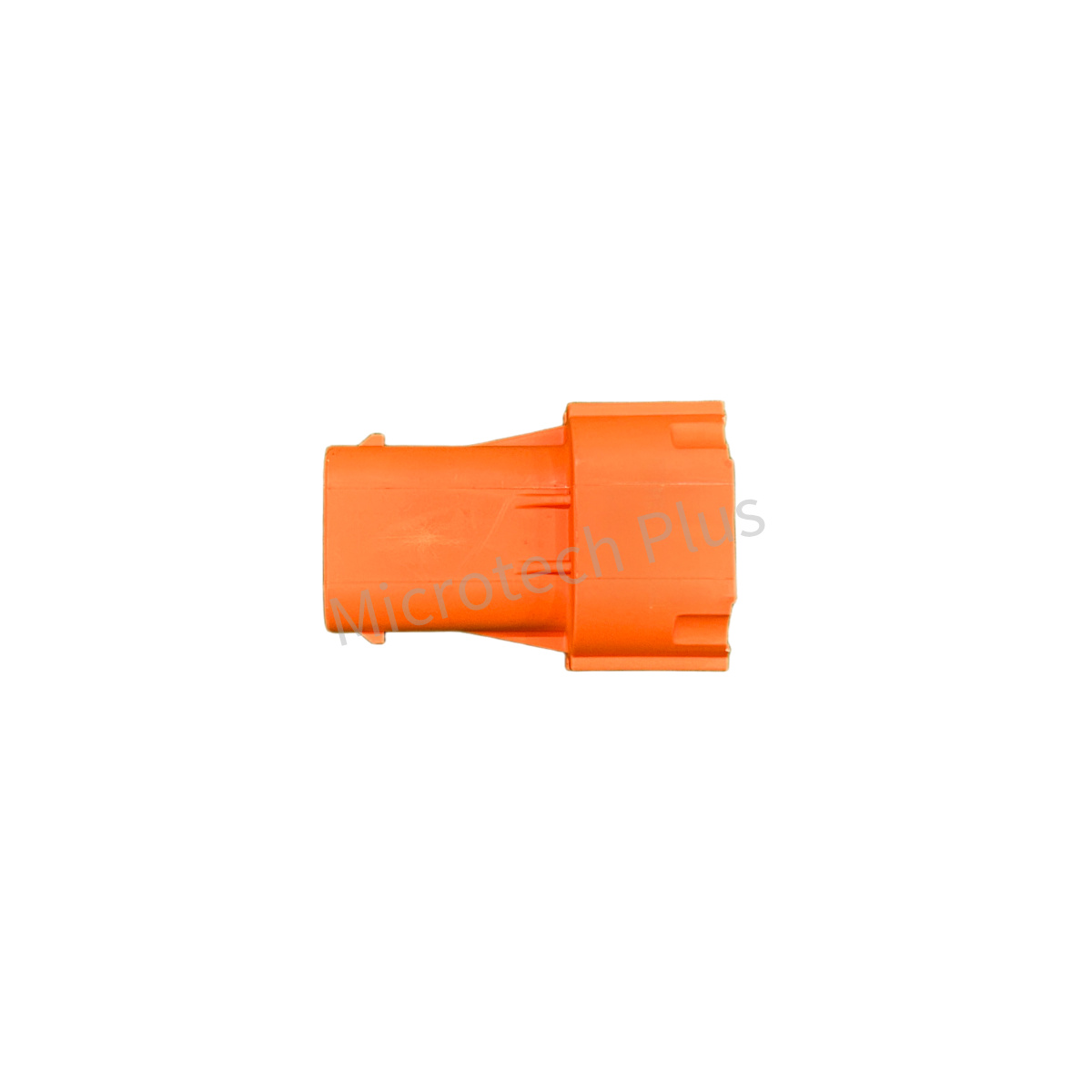

EV Plastic 2 Pin 20A 25A 40A Connector-Plug 5-W

Categories EV Connector, EV Plastic Power Connector Tags 2 pin, 20A, 25A, 40A, Power Connector

This is an EV plastic 2 pin connector (plug), which is specially designed for small and medium current applications in the EV. It can be used for PDU, AC charging inlet harness, Air Conditioner, DCDC, oil and air pump, and defroster in the Electric Vehicles.

Additional information

Application	Electric Vehicle (EV)
Series Name	W1P
Standard	IEC
Material	Plastic
Voltage	800V
Current	20A, 25A, 40A
Pin No.	2 Pins
Signal or Power	Power
Plug/Receptacle	Plug
Straight or Right Angle	Straight
HVIL or Not	HVIL or No HVIL
Shielding or Not	Shielding or No Shield
IP Degree	IP67

Product Details：

The mated receptacle is as below.

General Information

This is an EV plastic 2 pin connector (plug), which is specially designed for small and medium current applications in the EV. It can be used for PDU, AC charging inlet harness, Air Conditioner, DCDC, oil and air pump, and defroster in the Electric Vehicles.

Features and Advantages

Plastic high voltage connector, cost-effective
Compact structure, small size
CPA (Connector Position Assurance) function
Compatible with multiple cable gauges
High Voltage Interlock Loop (HVIL) function
IPXXB, finger-touch-proof design
360° electromagnetic shielding

Key Specifications

Pin Number: 2 Pins
Rated Voltage: 800V DC
Rated Current @ambient temperature 30℃:
- 20A compatible with 2.5 mm² cable
- 25A compatible with 4 mm² cable
- 40A compatible with 6 mm² cable
Insulation resistance: 1000 MΩ Min
Withstand Voltage: 2750 V AC
Protection Rating: IP67
Ambient Temperature: -40℃～+125℃
Electromagnetic Shielding: 2 options, with 360º shielding or without shielding
Mechanical Life: ≥ 500 times/cycles
Housing and Insulator Material: PA66/PBT
Insulator Flame Retardant Rating: UL94 V-0
Contacts Material: Brass, Silver plated
Gasket Material: Silicon rubber

Ordering Information

You can base on below information to choose the specification and ask quote from us.

Rated Current: 3 specifications
- 20A, compatible with 2.5 mm² wire
- 25A, compatible with 4 mm² wire;
- 40A, compatible with 6 mm2 wire.
Shielding: 2 options, Shielding or Not Shielding.

2.5 mm² shielded cable (2 cores), OD=5.9±0.15 mm

2.5 mm² unshielded cable (2 cores), OD= 3.7±0.15 mm

4 mm² shielded cable (2 cores), OD= 6.8±0.3 mm

4 mm² unshielded cable (2 cores), OD= 4.4±0.3 mm

6 mm² shielded cable (2 cores), OD= 8±0.3 mm

6 mm² unshielded cable (2 cores), OD= 5±0.3 mm

Key: 3 keys, A, B, D
HVIL: 2 options, with HVIL or without HVIL

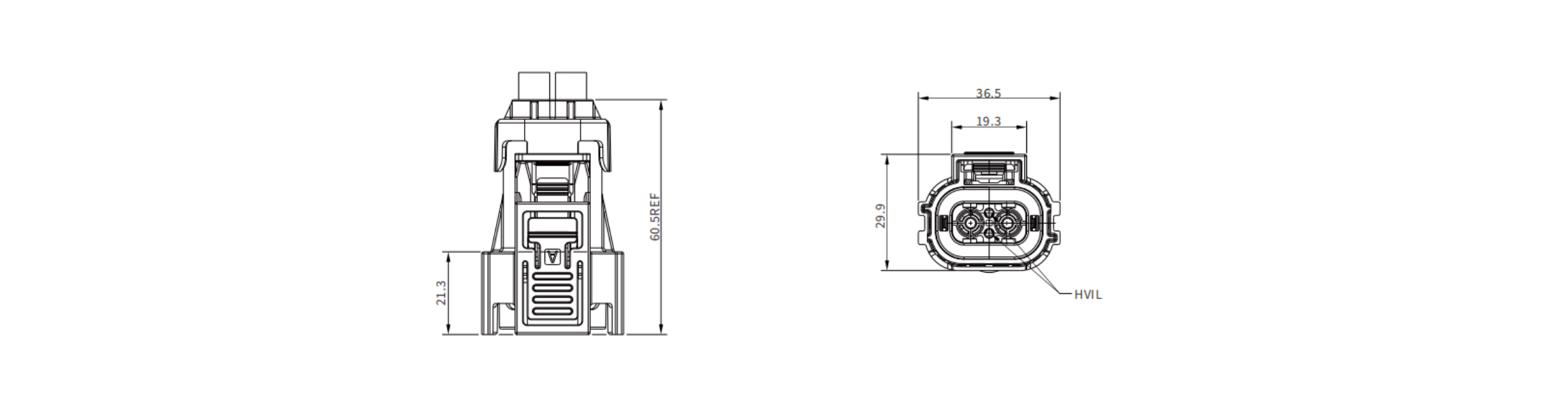

Drawing

Overall Dimensions
