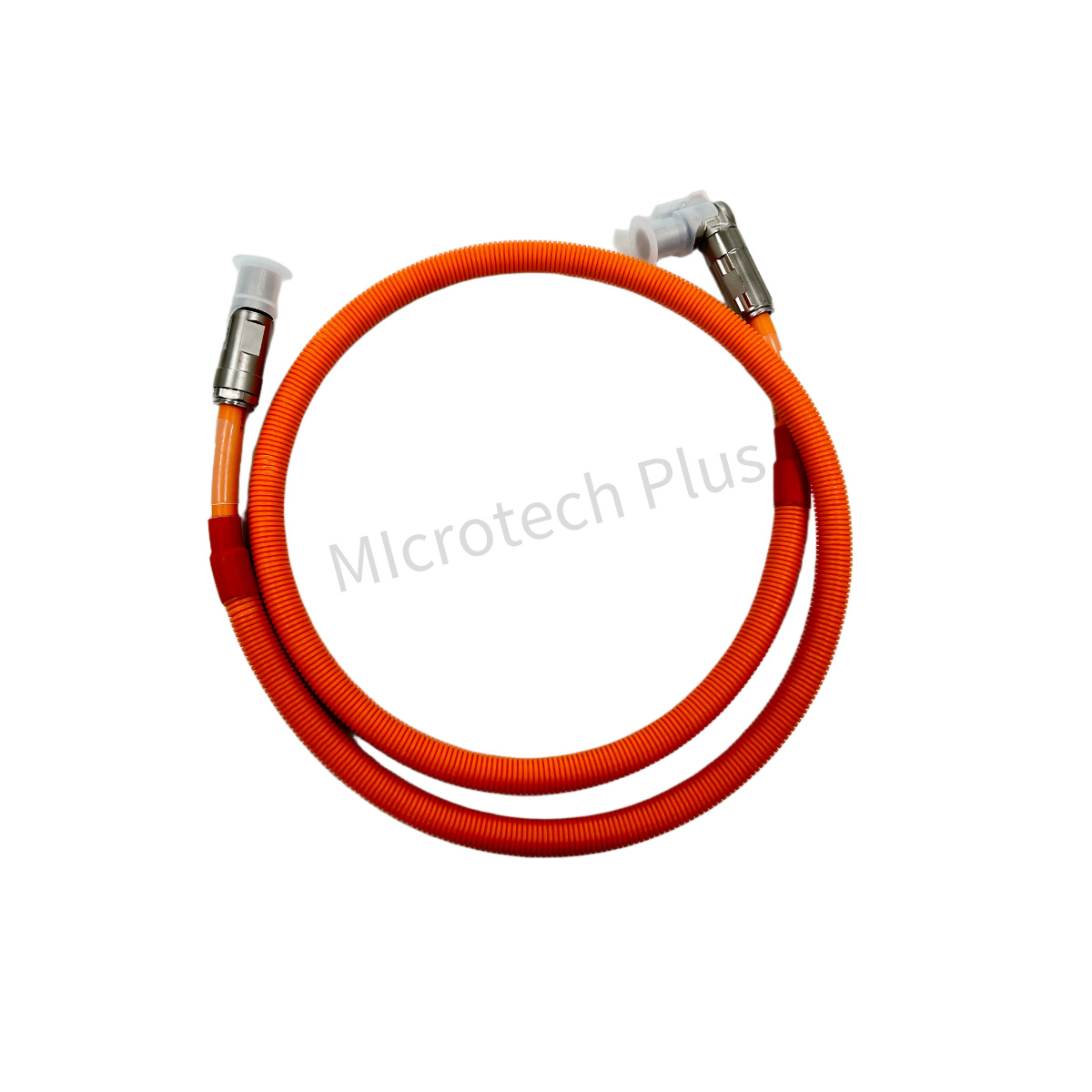

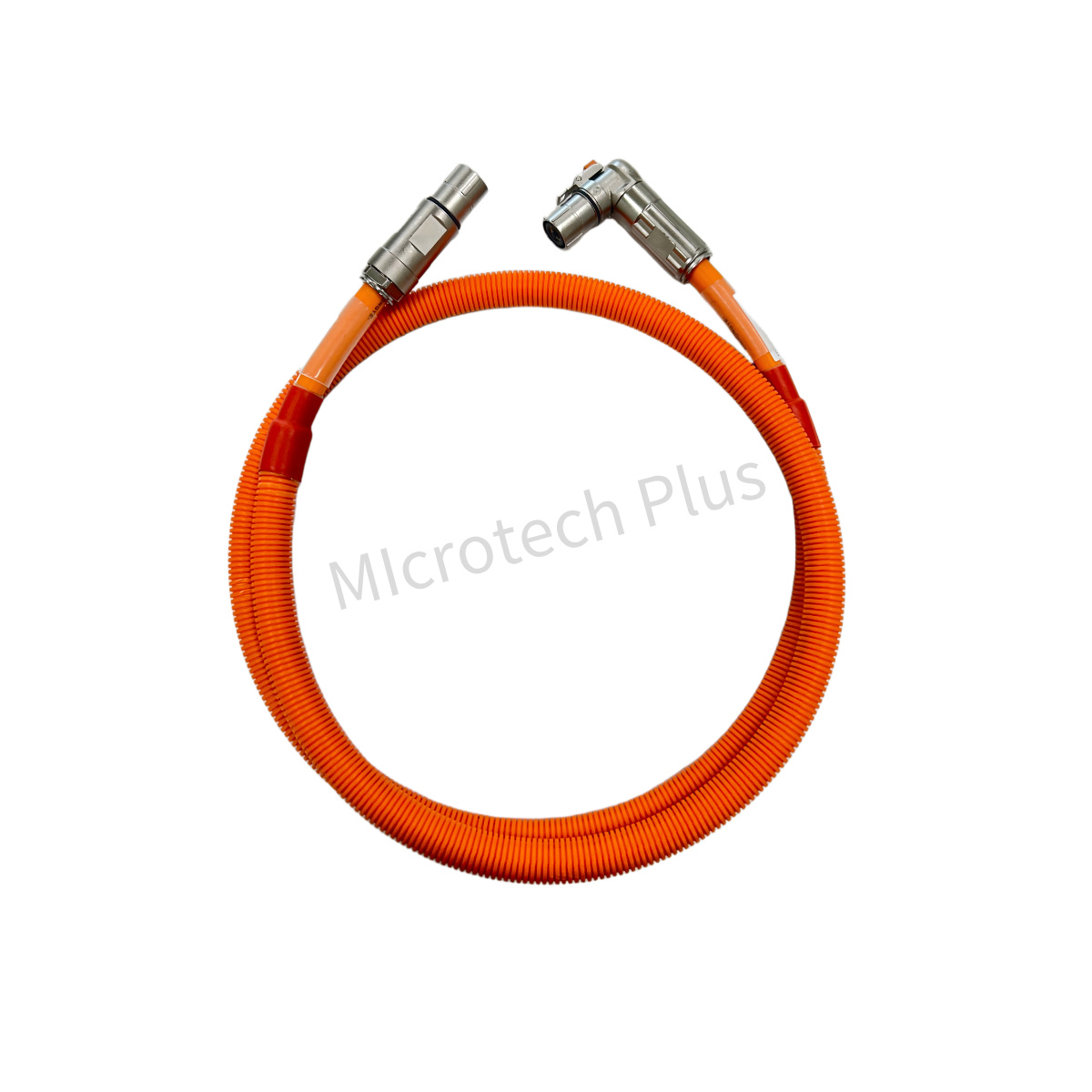

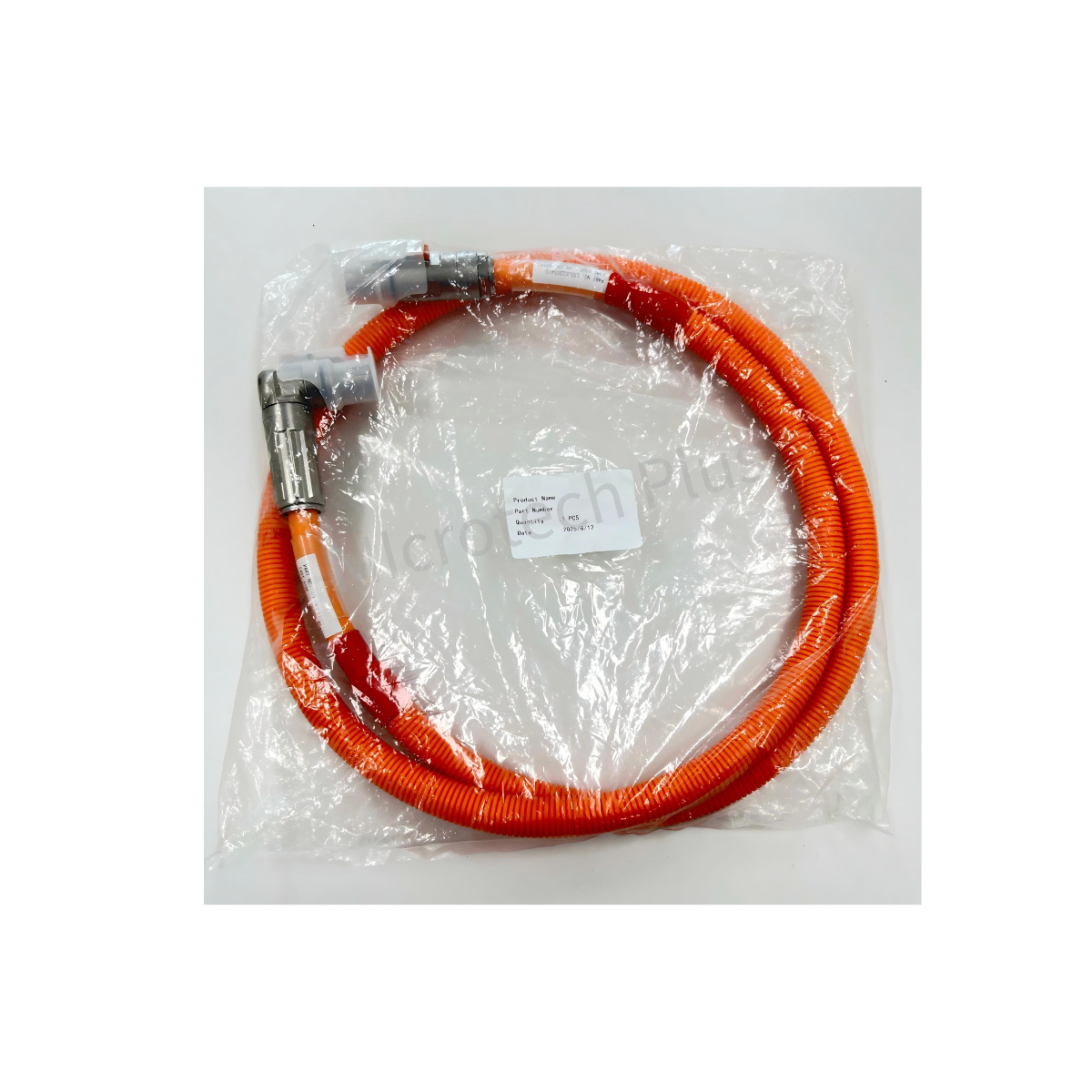

From Battery to Junction Box Harness, 50mm², 1.92m

Technical requirements:

This is battery harness, from battery to Junction box, it supplies the all system’s main power.

• Cable: 50mm² orange.
• The high voltage wire meets the rated voltage of DC1500V, withstand voltage 2500VAC, 1min, no breakdown.
• High voltage wire insulation resistance >200MΩ.
• Flame retardant:GB/T 2408HB GB/T2408V-0.
• Temperature:-40° C~120° C.
• There should be no short circuit and open circuit in high voltage circuit for power ontest.
• Main lable:60*30mm, external transparent heat shrink sleeve protection.
• Requestes not spesified are made by QC/T 29106-2014.
• Satisfy ROHS.

Cable Information:

• Specification: orange, 50mm²shielded wire, XLPE
• Standard: ISO14572
• Voltage: 1500V DC
• Operating Temperature: -40℃～+125℃

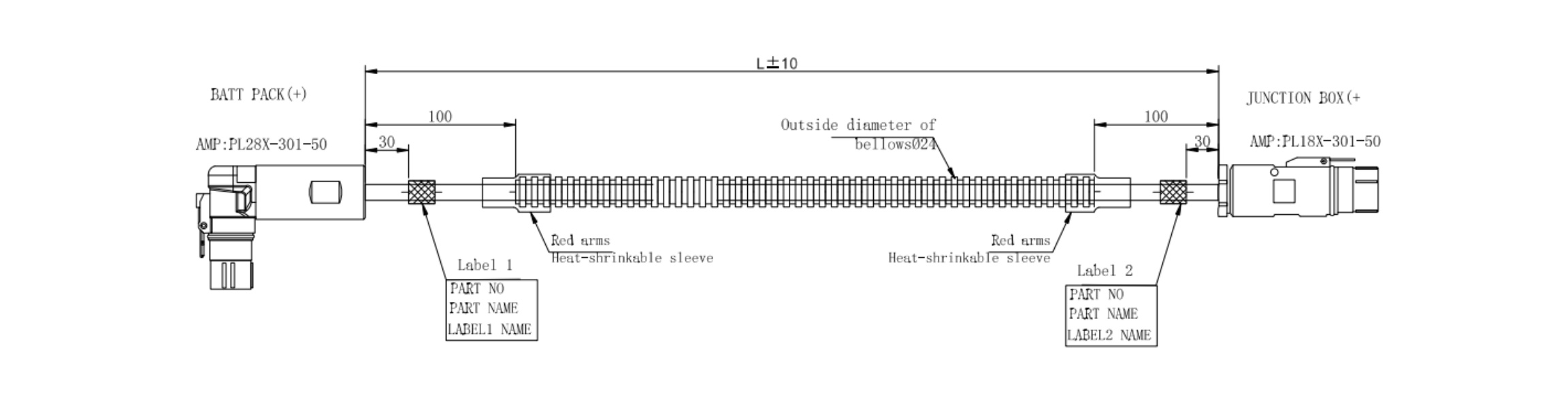

Drawing
