S1M 1 Pin 200A 250A 300A Metal Receptacle

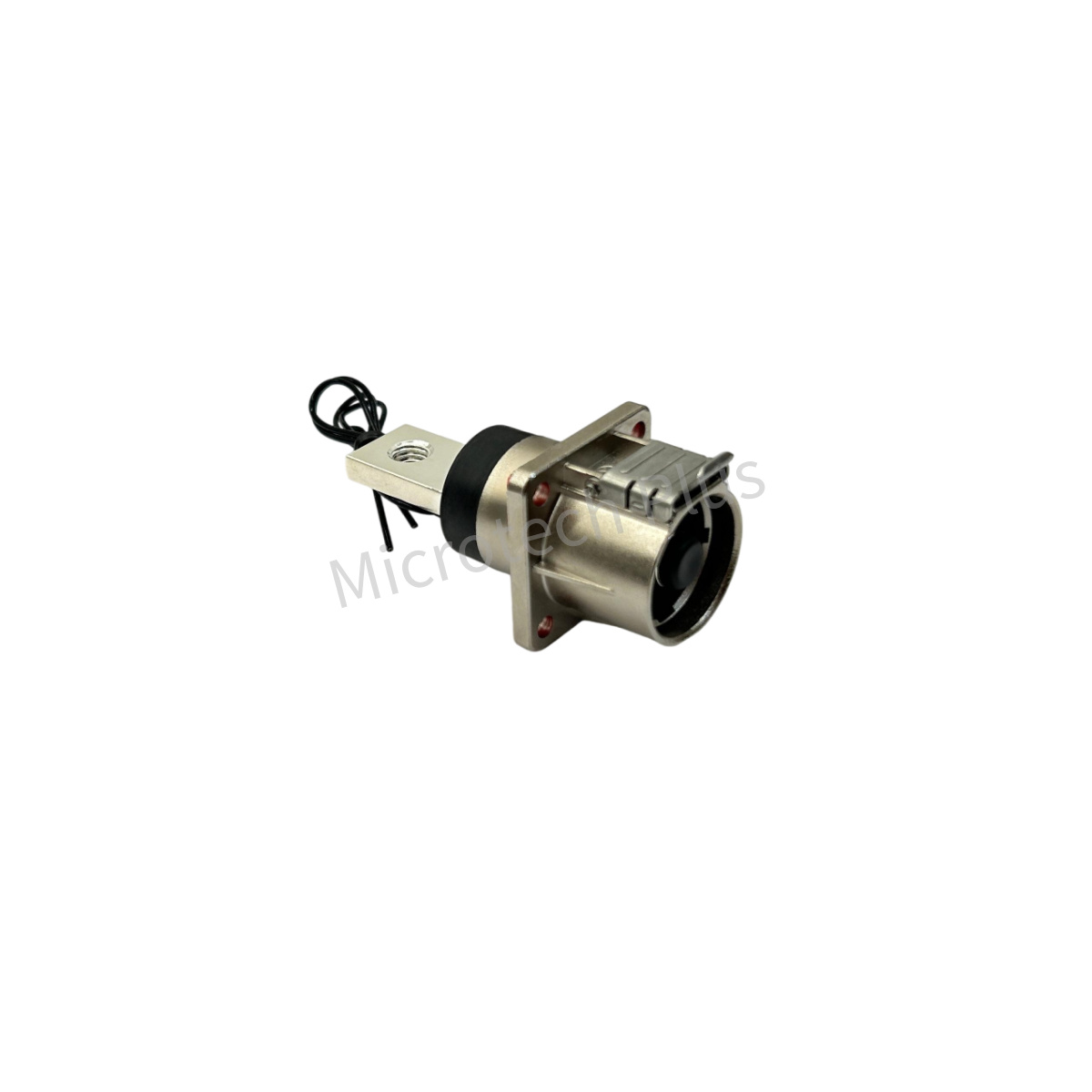

EV Metal 1 Pin 200A 250A 300A Connector-Receptacle 1-SK

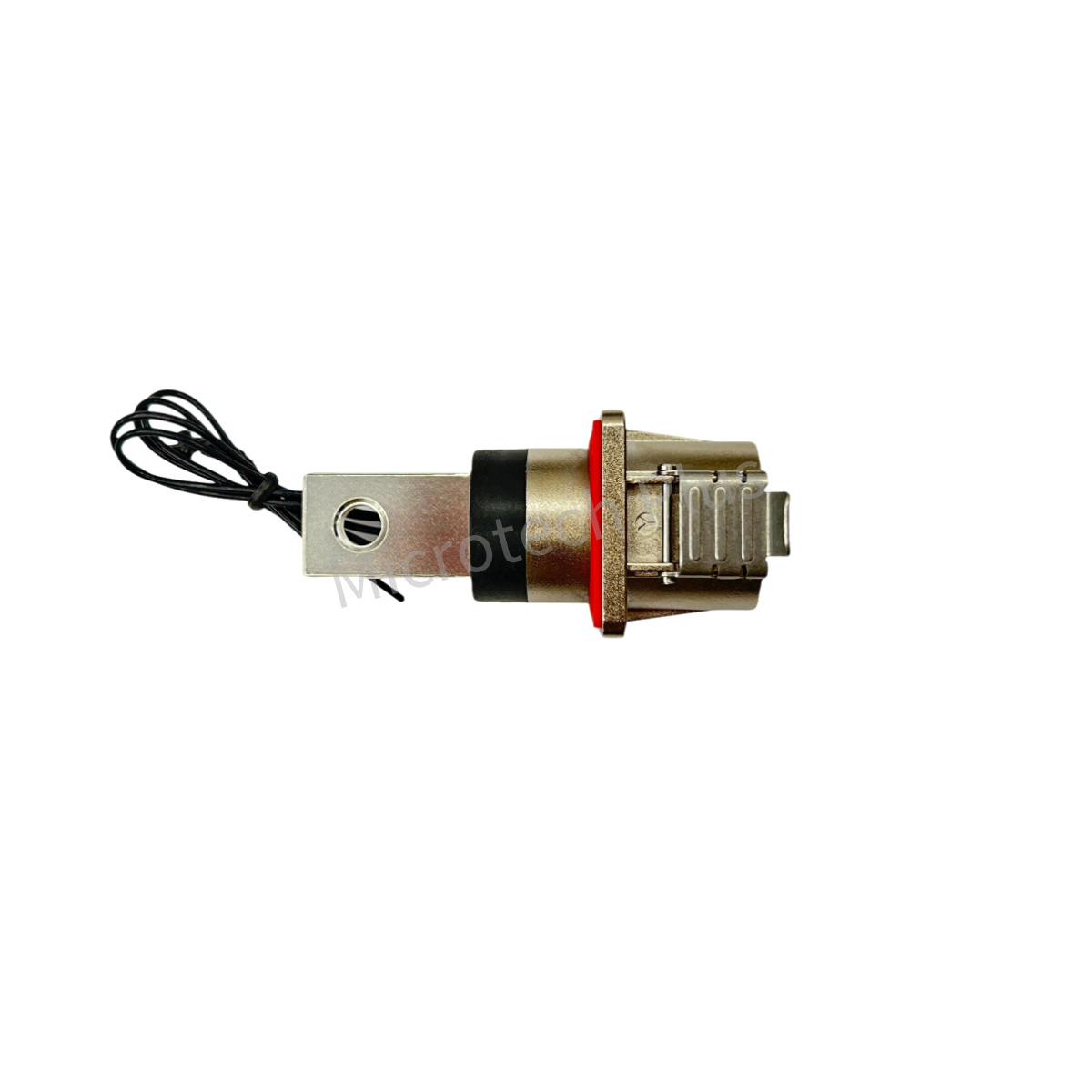

EV Metal 1 Pin 200A 250A 300A Connector-Receptacle 2-SK

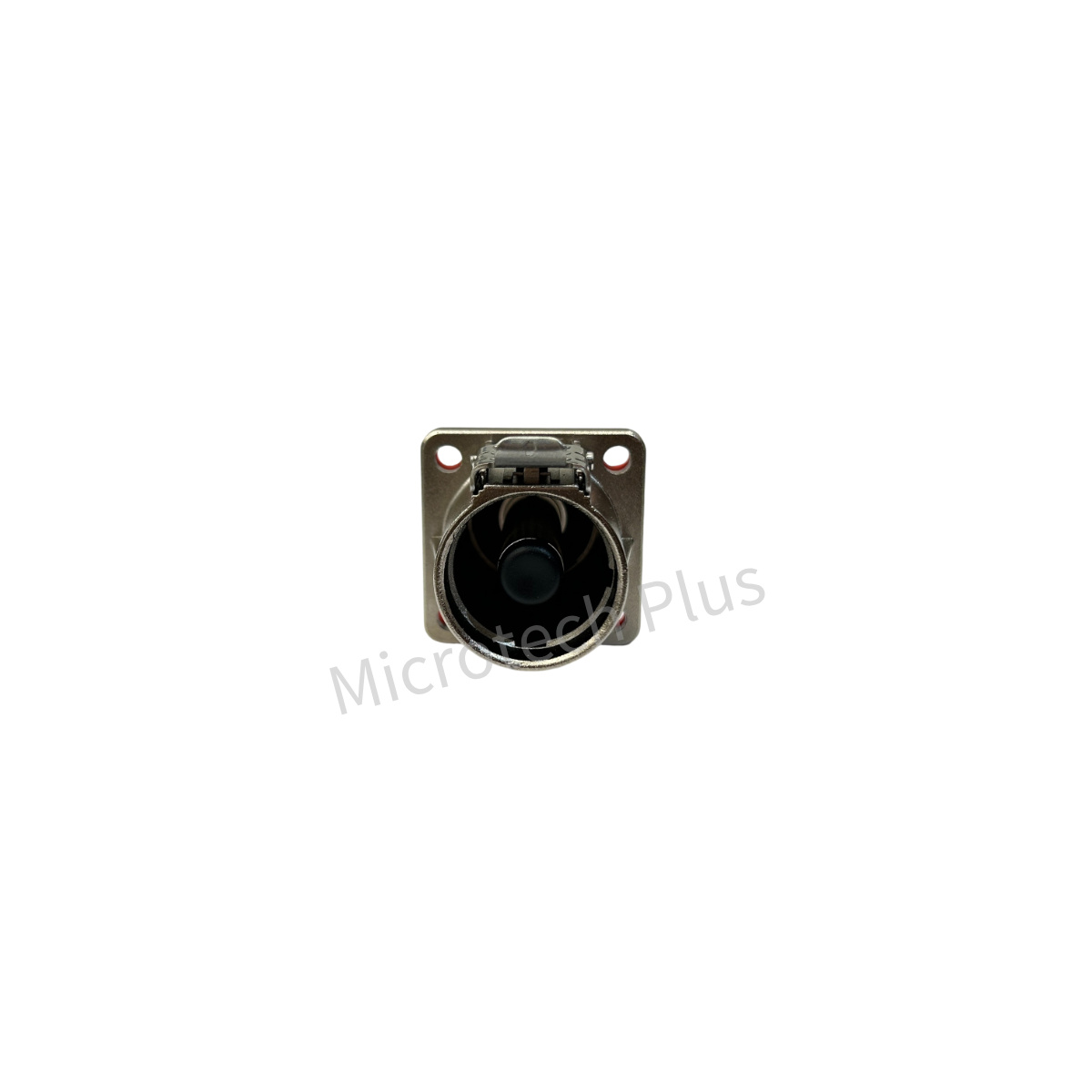

EV Metal 1 Pin 200A 250A 300A Connector-Receptacle 3-SK

Categories EV Connector, EV Metal Power Connector Tags 1 pin, 200A, 250A, 300A, Power Connector

This connector (receptacle) is suitable for high-voltage connections in electric vehicle devices such as motor controllers, PDU (Power Distribution Unit), and batteries.

Additional information

Application	Electric Vehicle (EV)
Series Name	S1M
Standard	IEC
Material	Metal
Voltage	1000V
Current	200A, 250A, 300A
Pin No.	1 Pin
Signal or Power	Power
Plug/Receptacle	Receptacle
Straight or Right Angle	Straight
HVIL or Not	HVIL or No HVIL
Shielding or Not	Shielding
IP Degree	IP67

Product Details：

The mated plug is as below.

General Information

This connector (receptacle) is suitable for high-voltage connections in electric vehicle devices such as motor controllers, PDU (Power Distribution Unit), and batteries.

Features and Advantages

Metal Material connector, more robust and durable compared to plastic material, making them less prone to damage from impacts during long-term vehicle operation.
Metal housing’s shielding effect is better than plastic shell.
Multi keys, anti-misinsertion, double unlocking.
RoHS compliant.
Easy to operate, and convenient to assemble and disassemble.

Key Specification

Mechanical Performance
- Mechanical Durability: ≥100 Times
- Keying Design: 5 Keys

Electrical Performance
- Rated Current:
  - 300A-70mm²
  - 250A-50mm²
  - 200A-35mm²
- Rated Voltage: DC 1000V
- Withstanding Voltage: DC 5000V
- Insulation Resistance: 500MΩ
- Contact Resistance: 0.5mΩ
- Shielding: Yes, 360°
- HVIL(High Voltage Interlock Loop): Optional
- Teperature Rise: ≤55K

Environmental Performance
- Operation Temperature Range: -40℃~+125℃
- Salt Spray: 48H
- IP Degree: IP67
- Plug’s Anti-electric Shock Rate: IPXXB
- Receptacle’s Anti-electric shock Rate: IPXXB

Ordering Information

This connector (receptacle) has just 1 pin.

You can base on below information to choose the specification and ask quote from us.

Rated current: there are 3 types, 200A, 250A, 300A
Terminal busbar: M8, M10(Could be screw typ, or just hold type)
Keys: N, W, X, Y, Z
200A receptacle’s mated plug is compatible with 35mm² cable.
250A receptacle’s mated plug is compatible with 50mm² cable.
300A receptacle’s mated plug is compatible with 70mm² cable.

Drawing

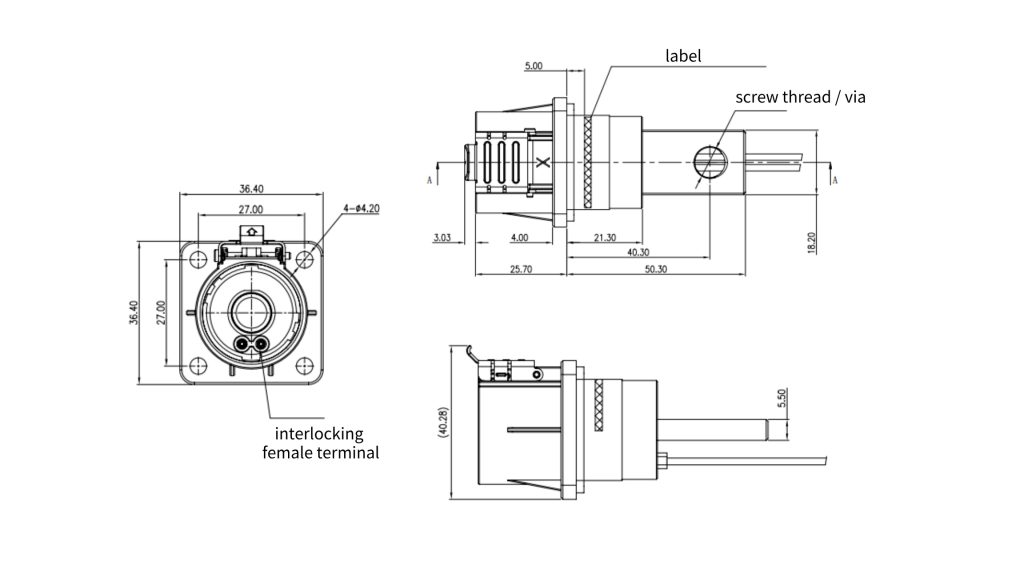

Overall Dimensions

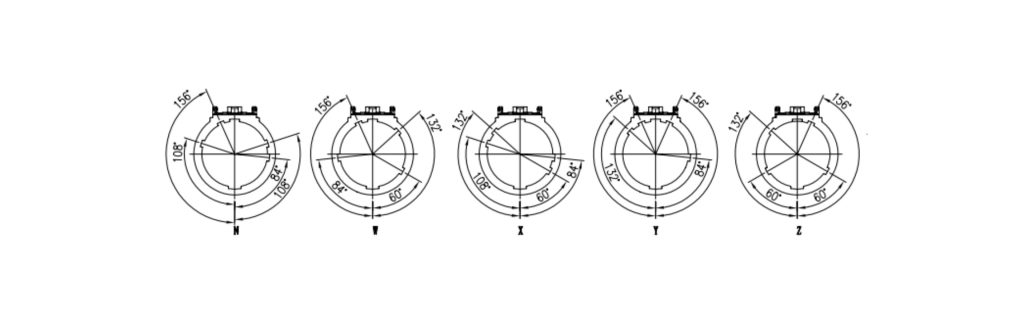

Key Display

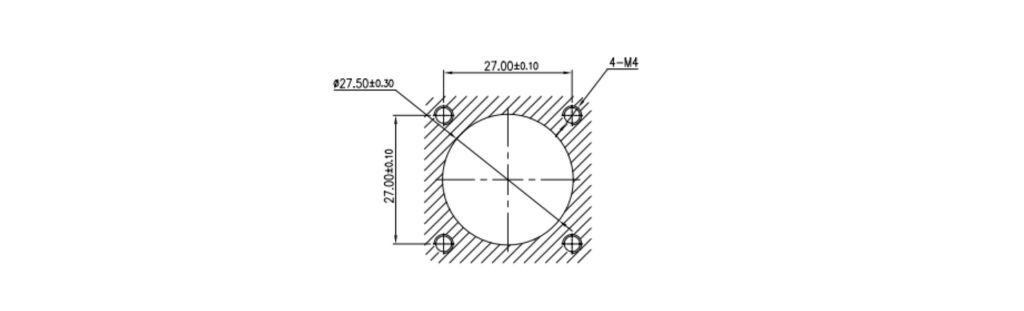

Installation Dimensions
