X2 NACS SAE DC 100-400A Charging Plug

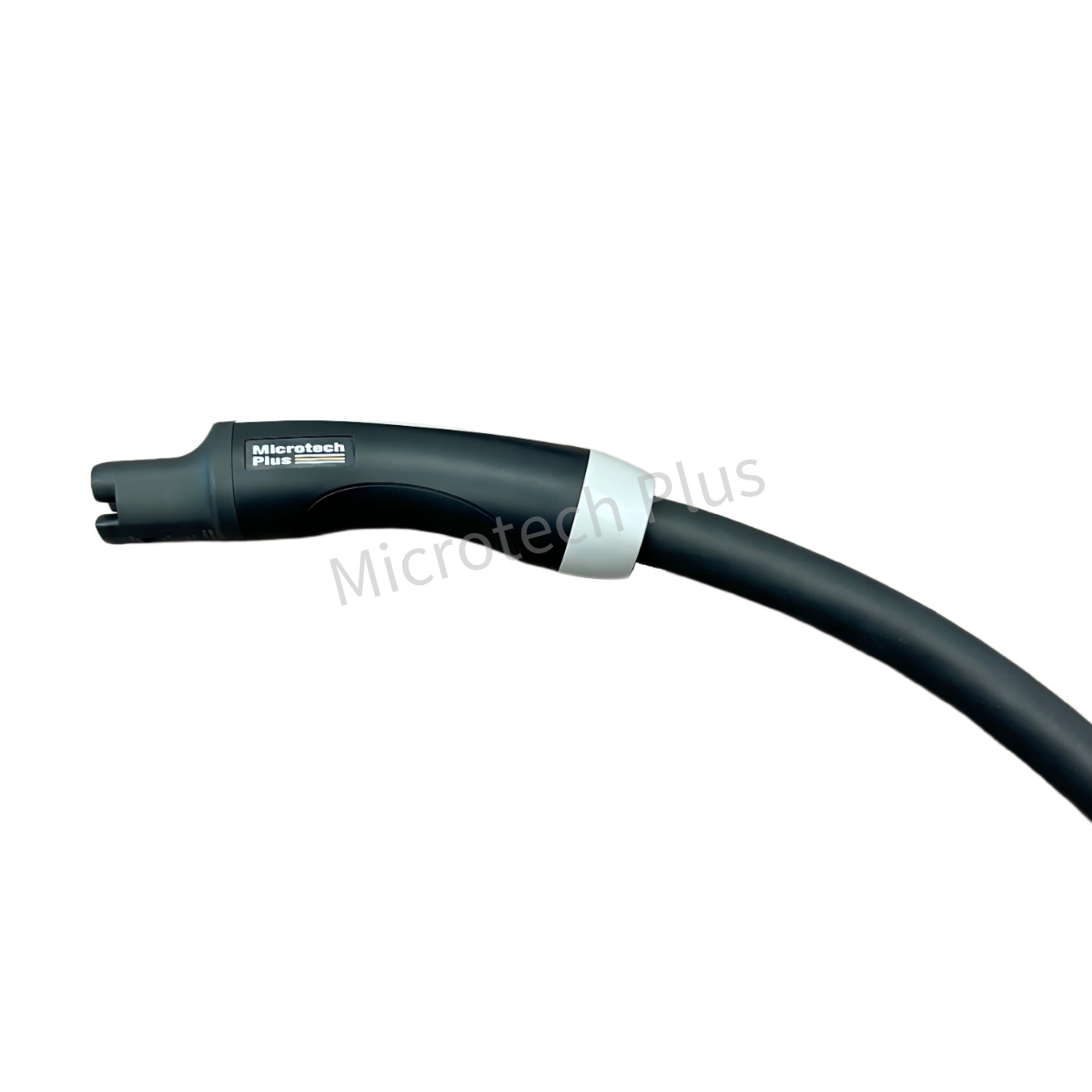

NACS SAE DC 100A 200A 250A 350A 400A Charging Plug 1-SC

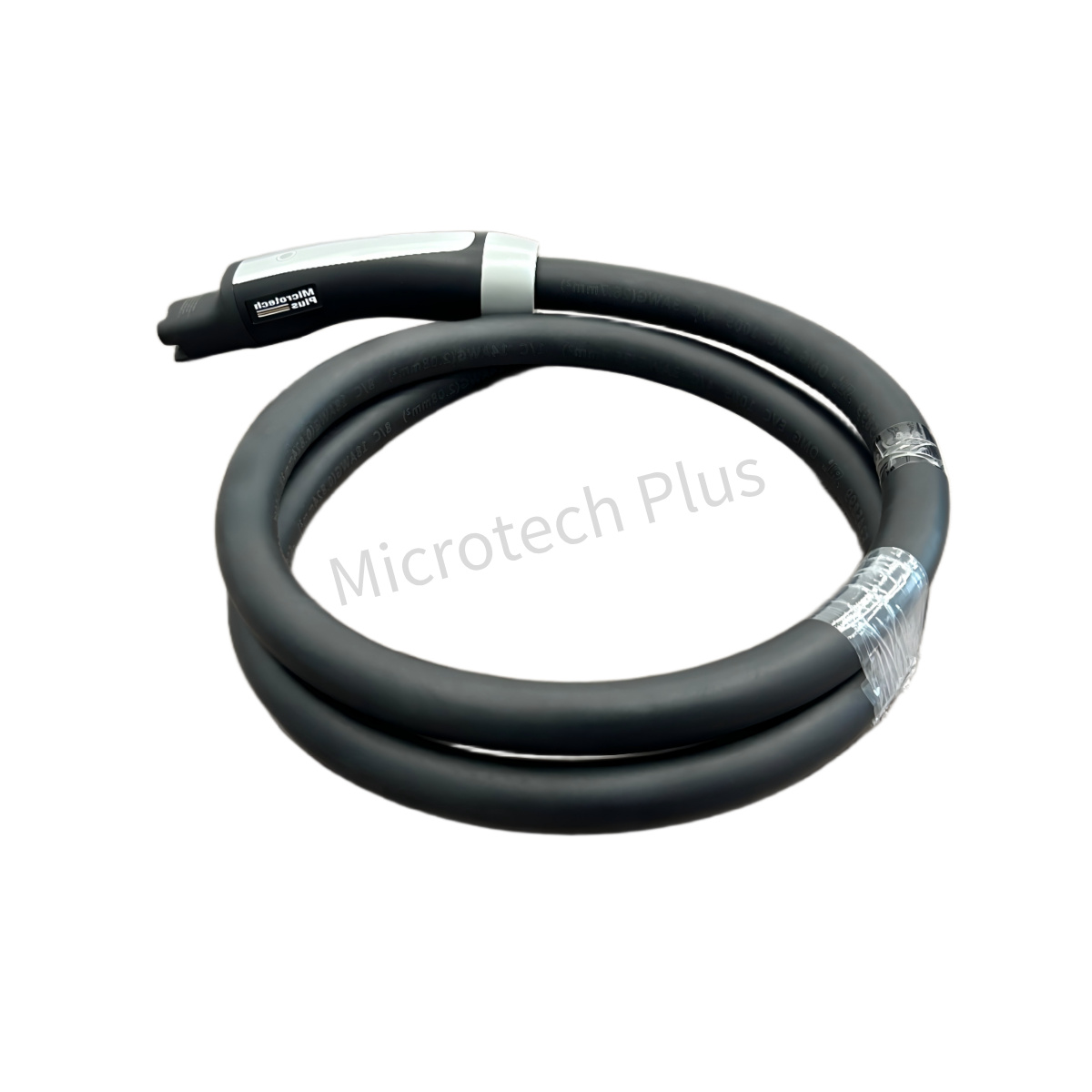

NACS SAE DC 100A 200A 250A 350A 400A Charging Plug 2-SC

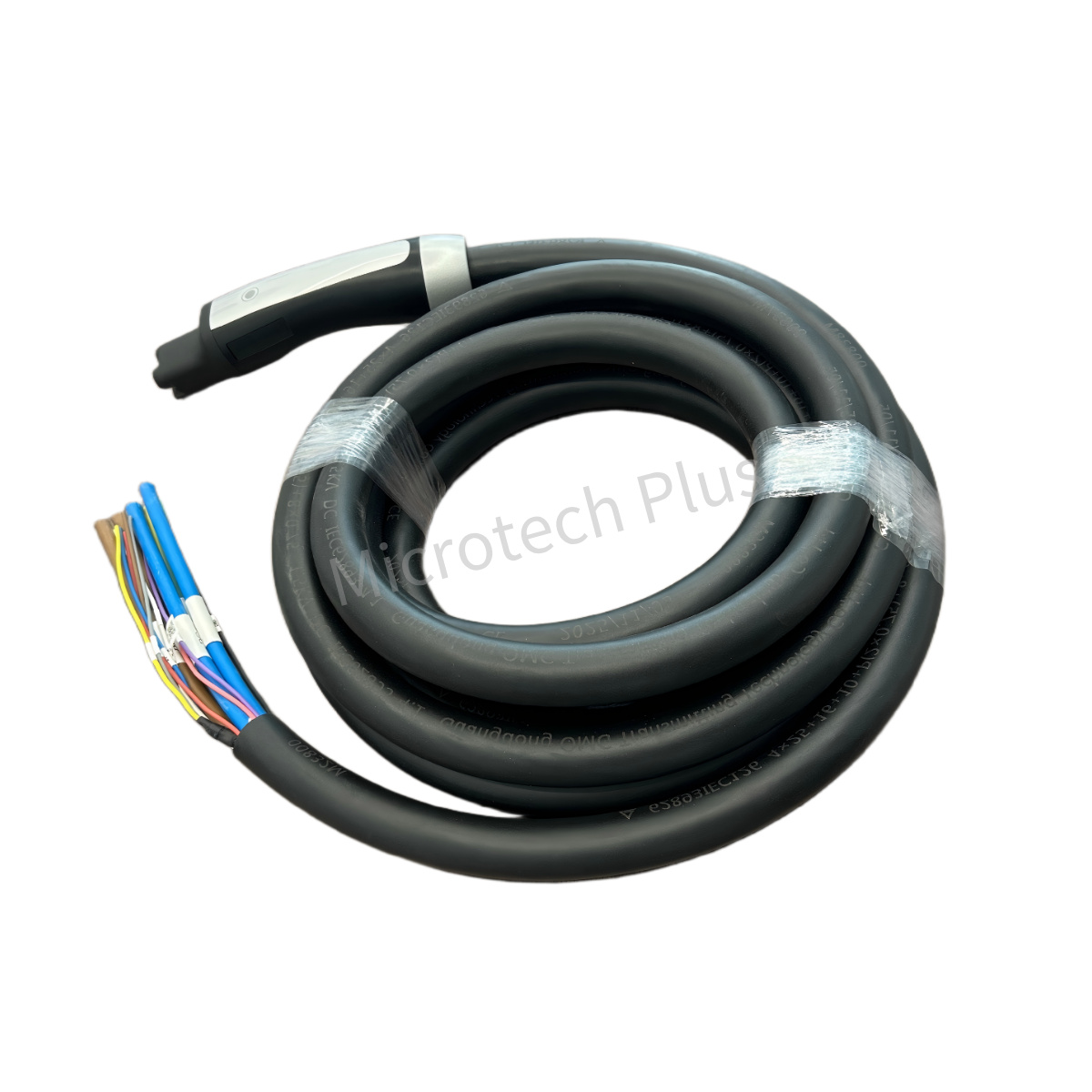

NACS SAE DC 100A 200A 250A 350A 400A Charging Plug 3-SC

Categories EV Charging Plug and Inlet Harness, NACS Charging Products Tags 100A, 150A, 200A, 250A, 300A, 350A, 375A, 400A, EV Charging Connector, NACS, SAE J3400

This is a NACS DC charging plug, compliant with the SAE J3400 standard.

It connects with NACS DC charging station, to charge NACS standard vehicles.

Our NACS DC charging plug’s rated currents cover from 100A to 400A.

Additional information

Application	Used For Vehicle Side
Series Name	X2
Standard	SAE J3400
Voltage	1000V
Current	100A, 150A, 200A, 250A, 300A, 350A, 375A, 400A
Plug/Receptacle	Plug
IP Degree	IP67

Product Details：

General Information

This is a NACS DC charging plug, compliant with the SAE J3400 standard.
It connects with NACS DC charging station, to charge NACS standard vehicles.
Our NACS DC charging plug’s rated currents cover from 100A to 400A.

Features and Advantages

Excellent control of temperature rise.
Compatible to open Tesla charge port
with embedded RF module.
Rated current up to 400A, boosting
to 600A.
Thinner and lighter cable, convenient
to operate.
Certified by UL, KC etc.
Customizable cable length.

Key Specifications

Rated Voltage: 1000V DC
Rated Current: 100A, 150A, 200A, 250A, 300A, 350A, 375A, 400A
Withstand Voltage: 2500V AC
Flame Retardant Grade: UL94 V-0
Protection Degree: IP67
Insertion and Withdrawal Force: <100N
Mechanical Life: No load plug and unplug, >10000 times/cycles
Ambient Temperature: -40℃ ~ +50℃
Cable Jacket Material: PC (Charging Connector housing is Nylon)
Terminal Temperature Rise: <50K

Ordering Information

Rated Current: there are 8 specs, 100A, 150A, 200A, 250A, 300A, 350A, 375A, 400A
Cable length: 5m, 6.5m or other length which you need.

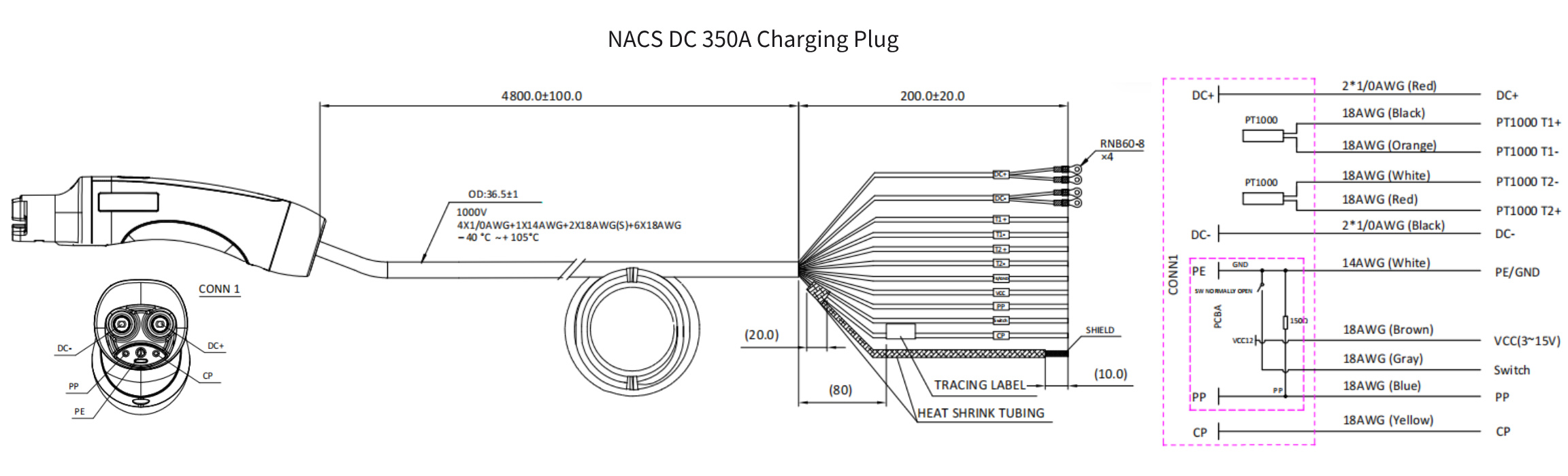

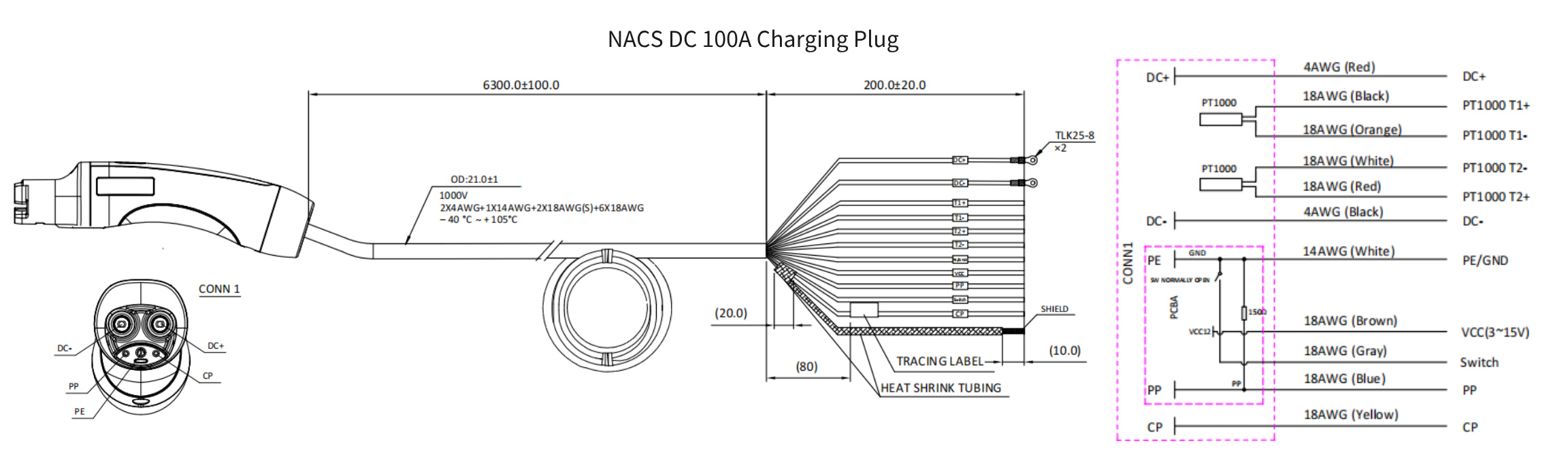

Drawing

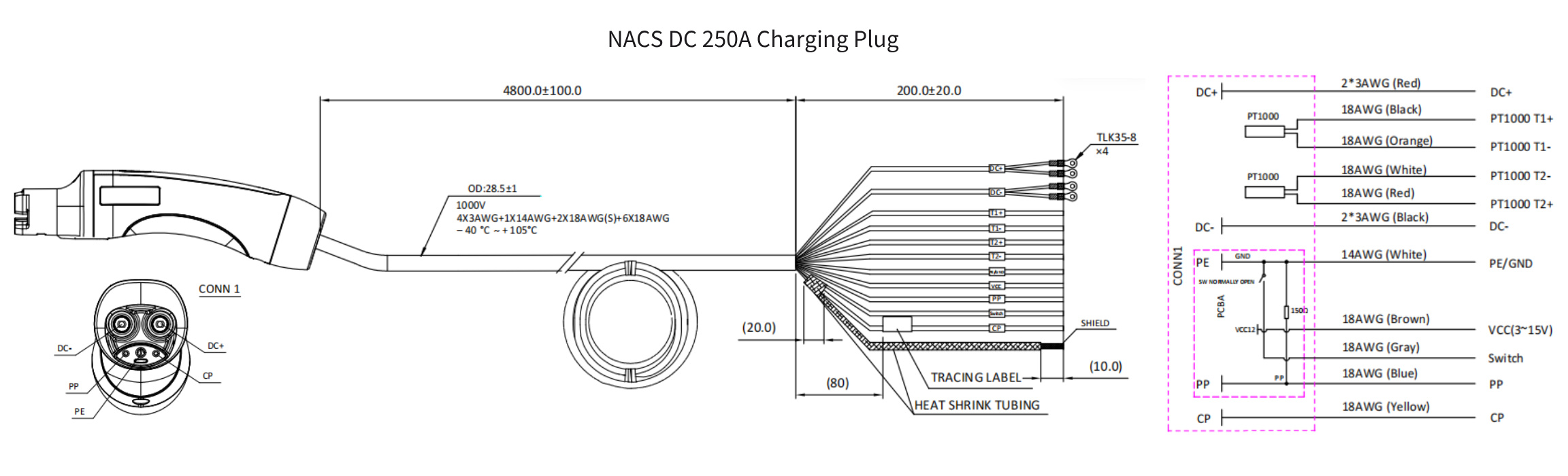

X2 NACS SAE DC 250A Charging Plug-Appearance and Wiring Diagram
