X2 Type 1 SAE AC 16A 32A 40A 50A 65A 80A Charging Plug

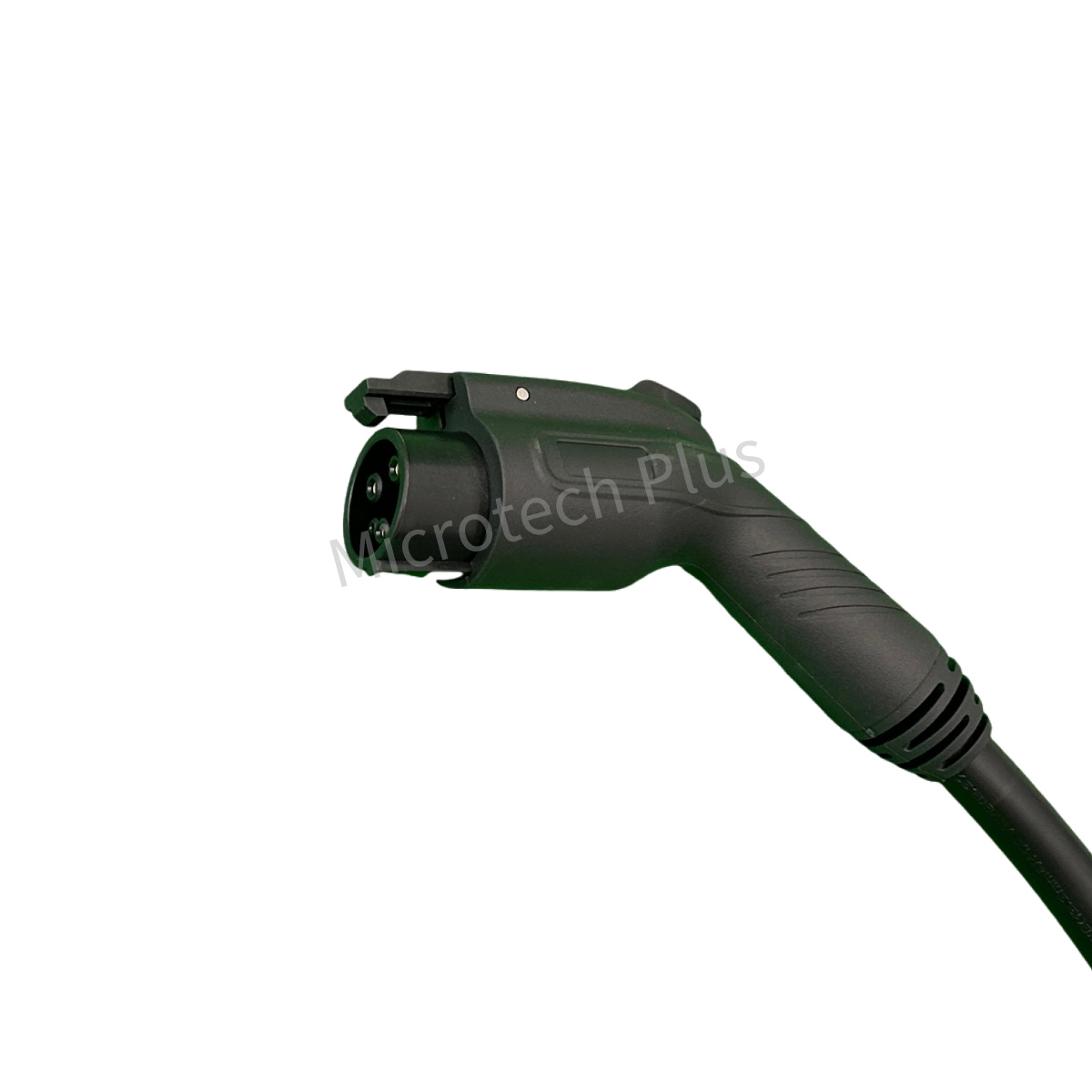

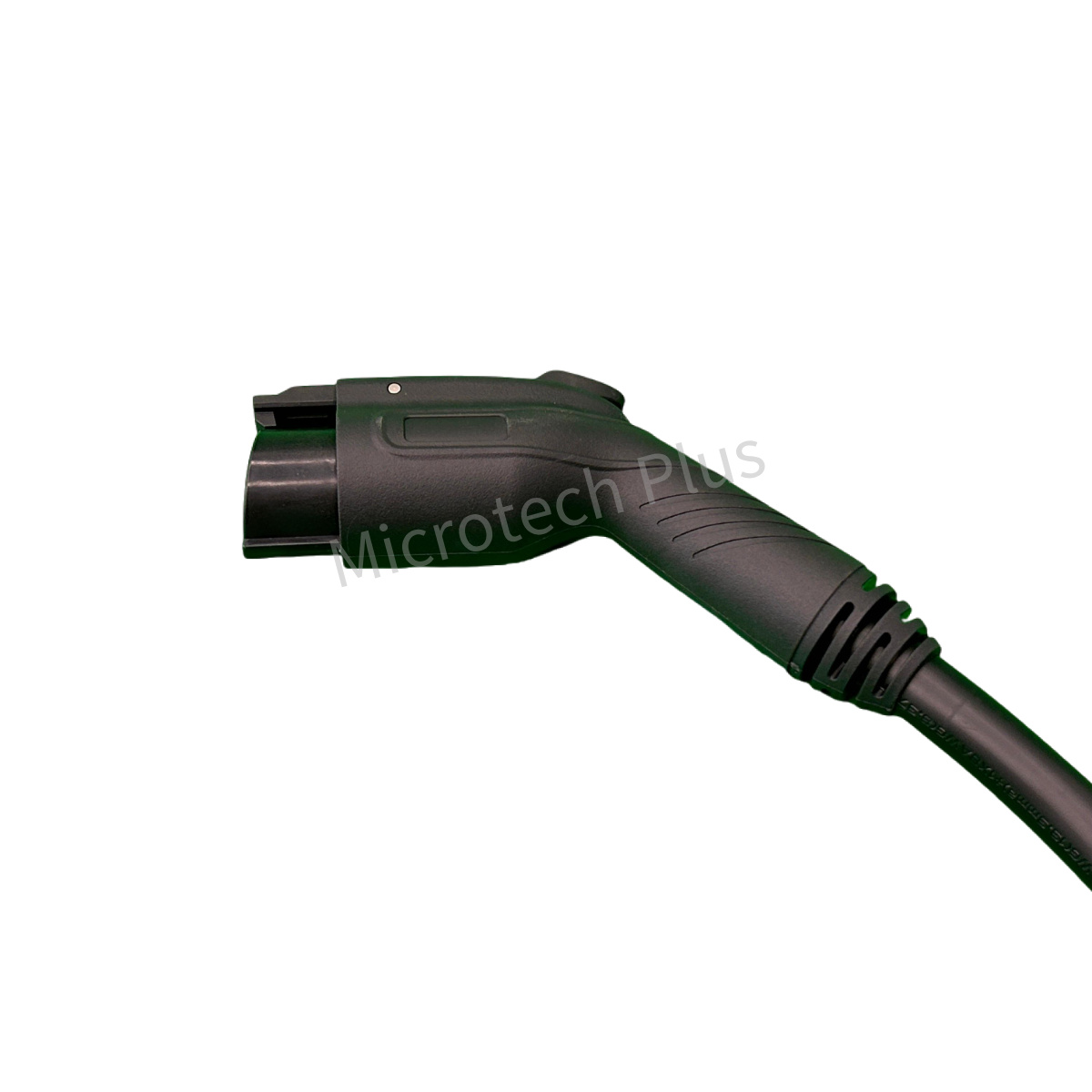

Type 1 SAE AC 80A Charging Plug 1-SC

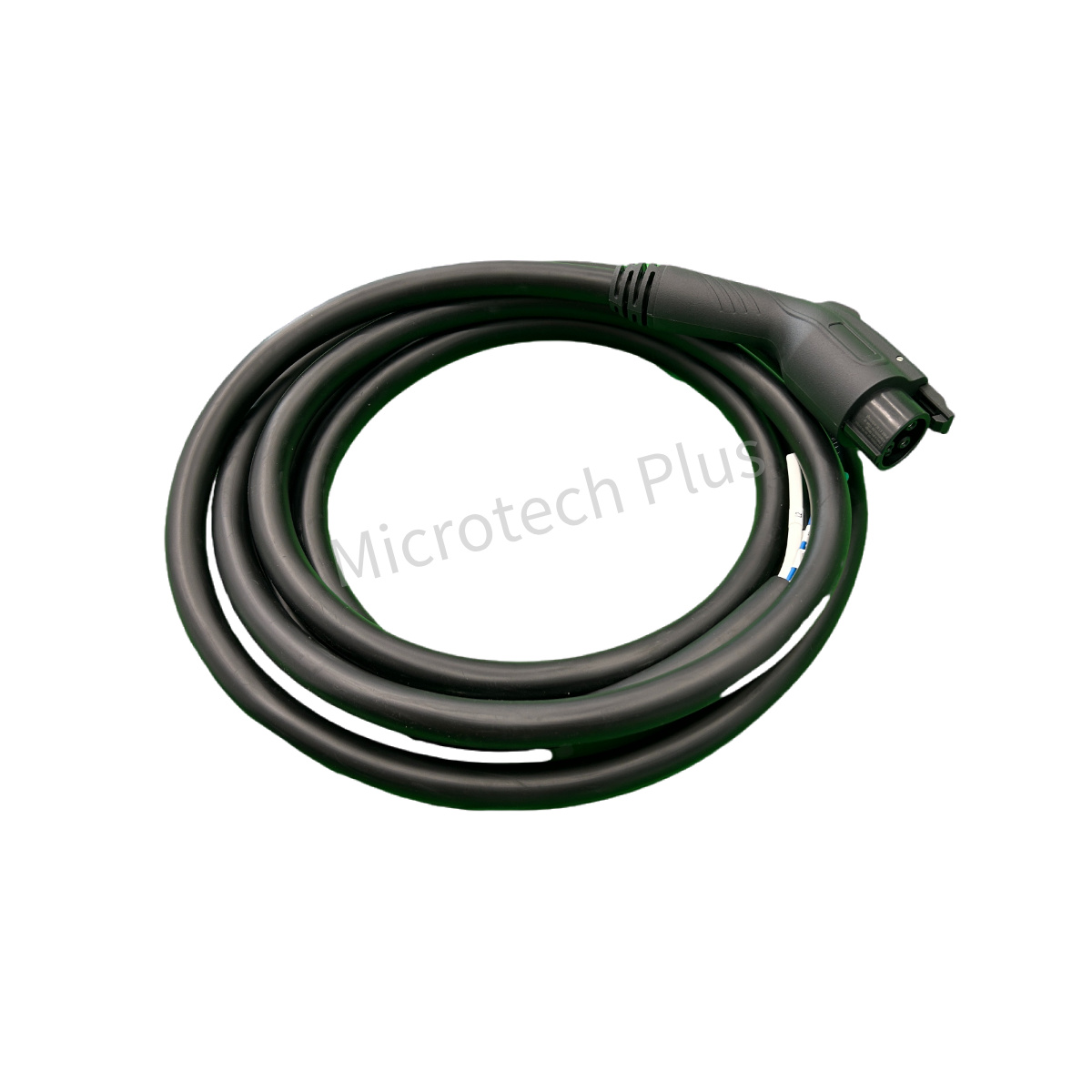

Type 1 SAE AC 80A Charging Plug 2-SC

Type 1 SAE AC 80A Charging Plug 3-SC

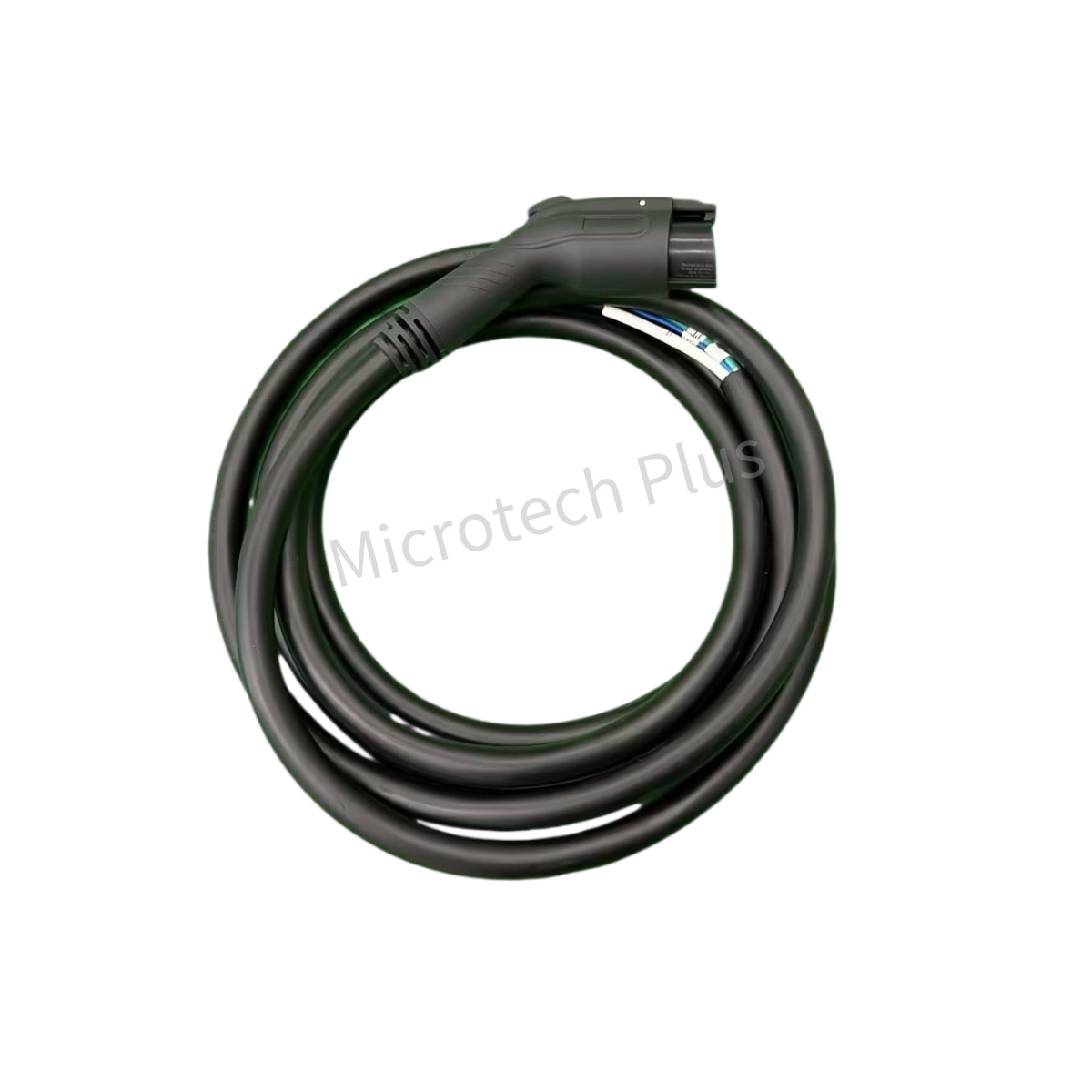

Type 1 SAE AC 80A Charging Plug 4-SC

Categories EV Charging Plug and Inlet Harness, Type 1 Charging Products Tags 32A, 65A, 80A, EV Charging Connector, SAE J1772, Type 1

This is a type 1 AC charging plug

Additional information

Application	Used For Vehicle Side
Series Name	X2
Standard	SAE J1772
Voltage	240V
Current	16A, 32A, 40A, 50A, 65A, 80A
Plug/Receptacle	Plug
IP Degree	IP54

Product Details：

General Information

This is a type 1 AC charging plug, for type 1 AC charging station.
The rated current can be 16A-80A.

Features and Advantages

Outstanding industrial design, leading to evident sense of premium quality.
Ergonomically designed, easy to operate.
Certified by UL, PSE, VPC, KC etc.
Customizable color (black and white) and cable length.
Offer generation3 (standard version) and generation4 (thinner cable version) cables.

Key Specifications

Rated Voltage: 250V AC
Rated Current: 16A, 32A, 40A, 50A, 65A, 80A
Withstand Voltage: 2500V AC
Protection Degree: IP55
Insertion and Withdrawal Force: <100N
Mechanical Life: No load plug and unplug, >10000 times/cycles
Ambient Temperature: -40℃ ~ +50℃
Cable Jacket Material: TPE (Charging Connector housing is Nylon)

Ordering Information

Rated Current: there are 6 specs, 16A, 32A, 40A, 50A, 65A, 80A
Cable length: 5m, 6.5m or other length which you need.

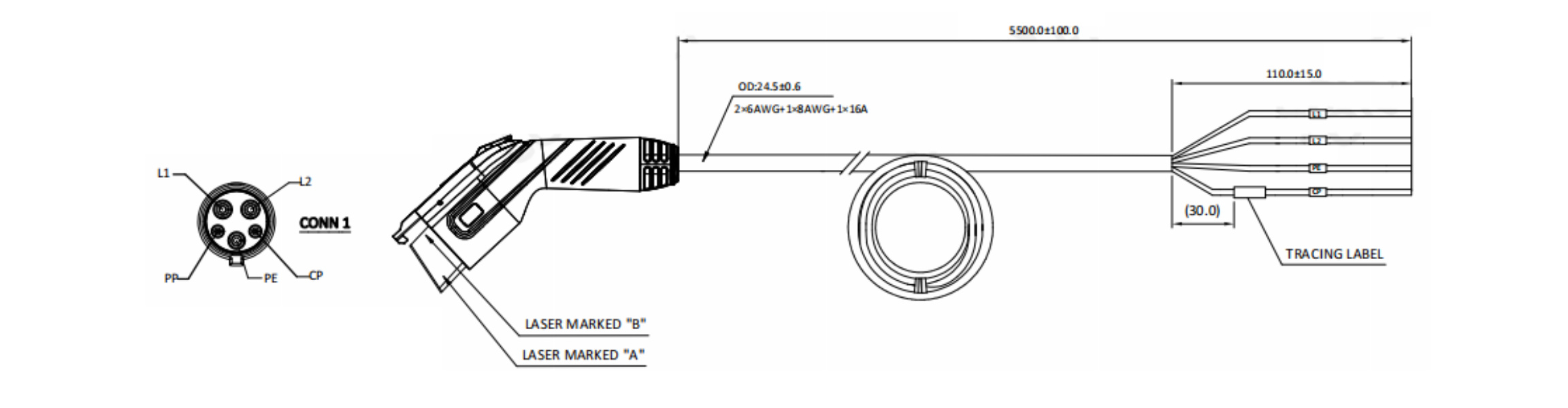

Drawing
