S2 Type 2 IEC AC 1 Phase / 3 Phases 16A/32A Charging Plug
Product Details：
General Information

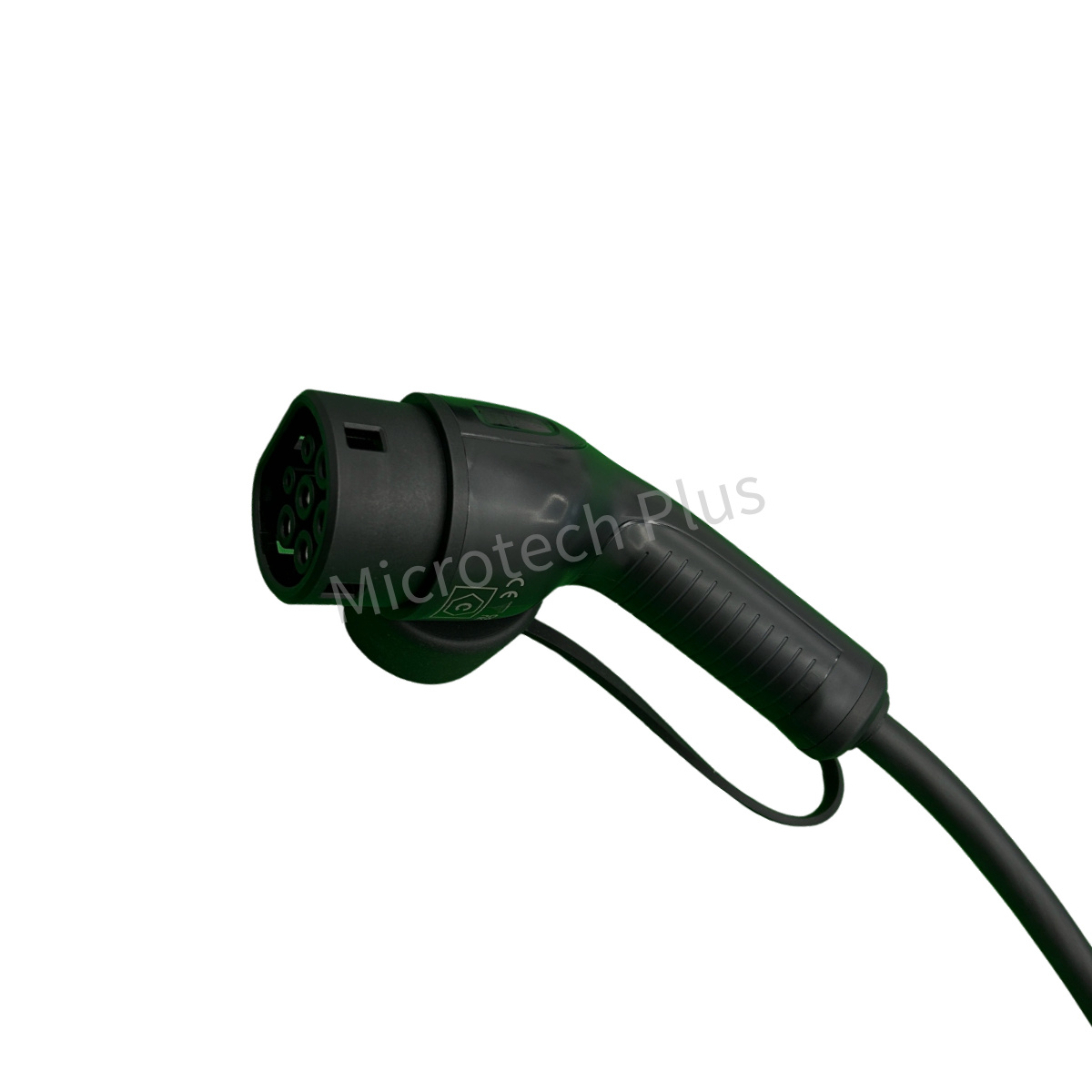

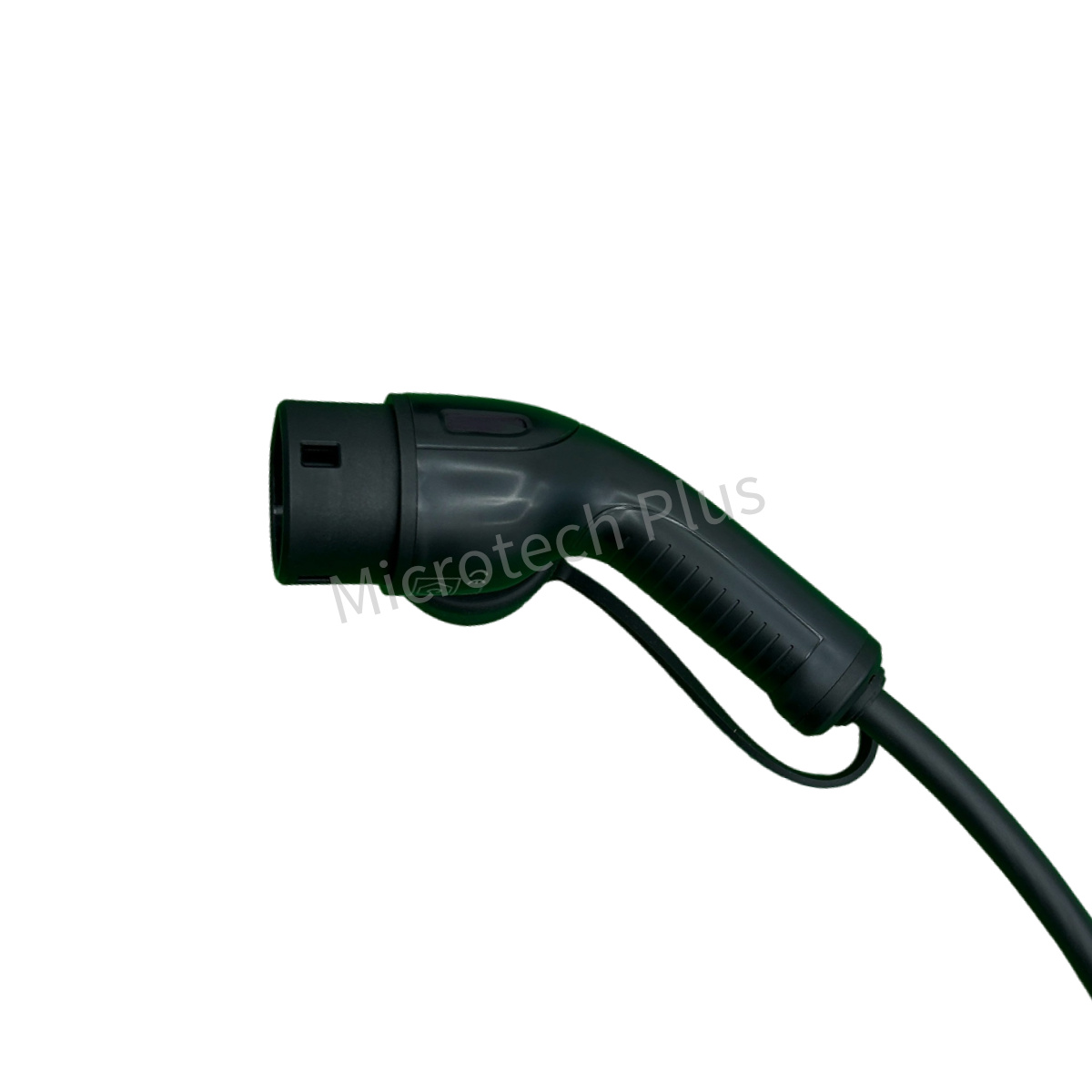

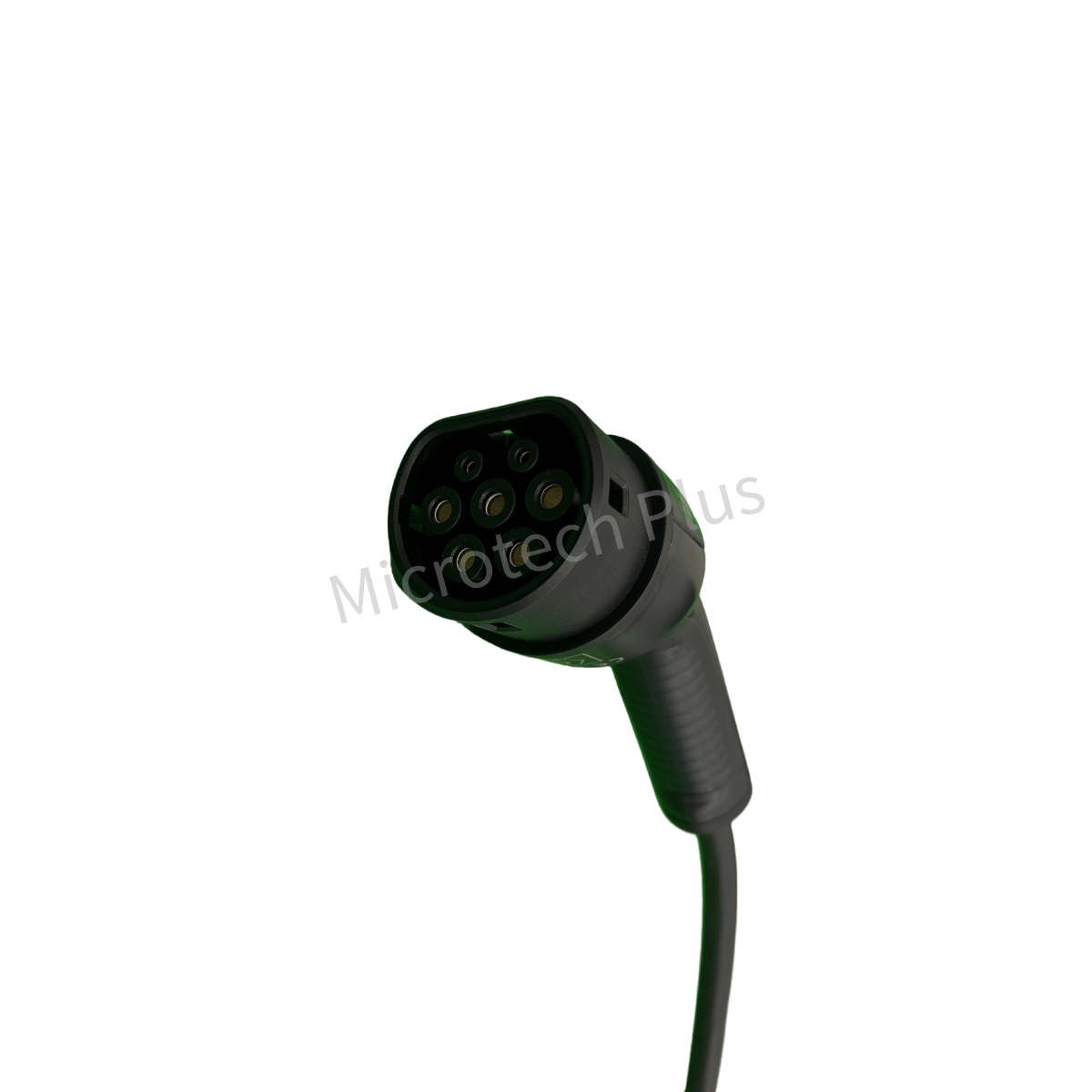

- This is a type 2 AC 1 phase and 3 phases charging plug, for type 2 AC charging station.
Features and Advantages
- Outstanding industrial design, leading to evident sense of premium quality.
- Ergonomically designed.
- Certified by TUV and CE.
- Customizable color (black and white) and cable length.
Key Specifications
- Rated Voltage: 1 Phase, AC 250V; 3 Phases 480V.
- Rated Current: 16A/32A
- Withstand Voltage: 2500V AC 1 min
- Insulation Resistance: 1000MΩ (1min 1000V DC)
- Protection Degree: IP67
- Insertion and Withdrawal Force: <100N
- Mechanical Life: 10000 times/cycles
- Ambient Temperature: -40℃ ~ +85℃
- Test Standard: IEC62196-1, IEC62196-2
Ordering Information
- Specification No. 1:
- Rated Voltage and Current: 1 phase (AC 250V) 16A, compatible with wire gauge 2.5mm² (refer to the power cores, L1, N)
- Cable Jacket Material: TPU
- Cable Specification: 3*2.5mm² + 0.5mm²
- Cable OD : 10.2±0.3mm
- Specification No. 2:
- Rated Voltage and Current: 3 phases (AC 480V) 16A, compatible with wire gauge 2.5mm² (refer to the power cores, L1, L2, L3, N)
- Cable Jacket Material: TPU
- Cable Specification: 5*2.5mm² + 0.5mm²
- Cable OD : 12.5±0.4mm

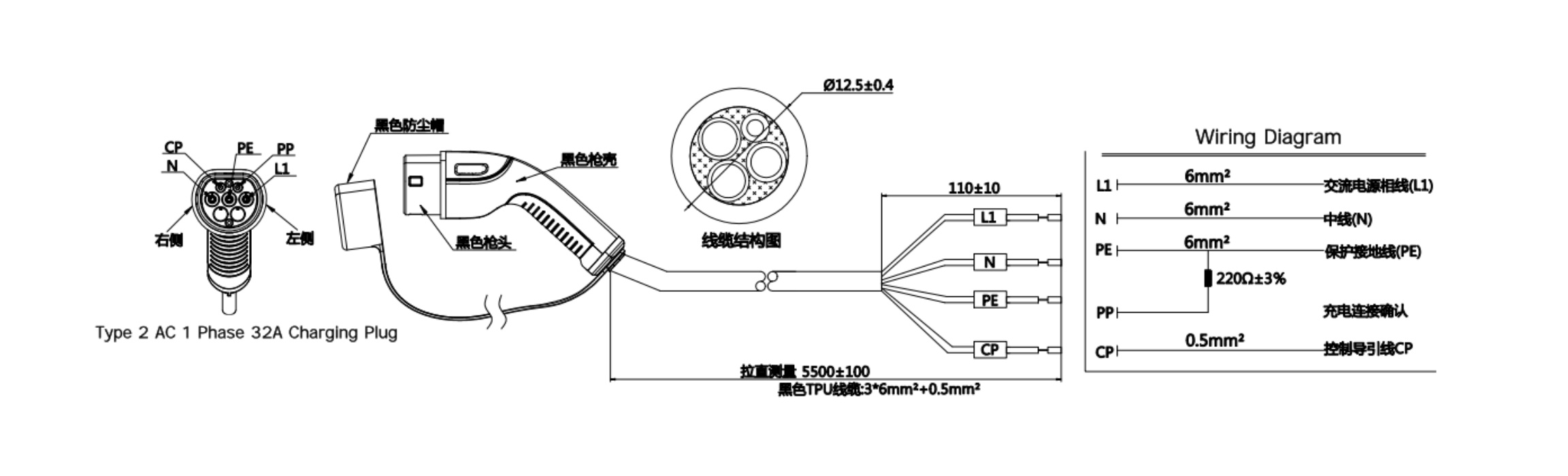

- Specification No. 3:
- Rated Voltage and Current: 1 phase (AC 250V) 32A, compatible with wire gauge 6mm² (refer to the power cores, L1, N)
- Cable Jacket Material: TPU
- Cable Specification: 3*6mm² + 0.5mm²
- Cable OD : 12.5±0.4mm

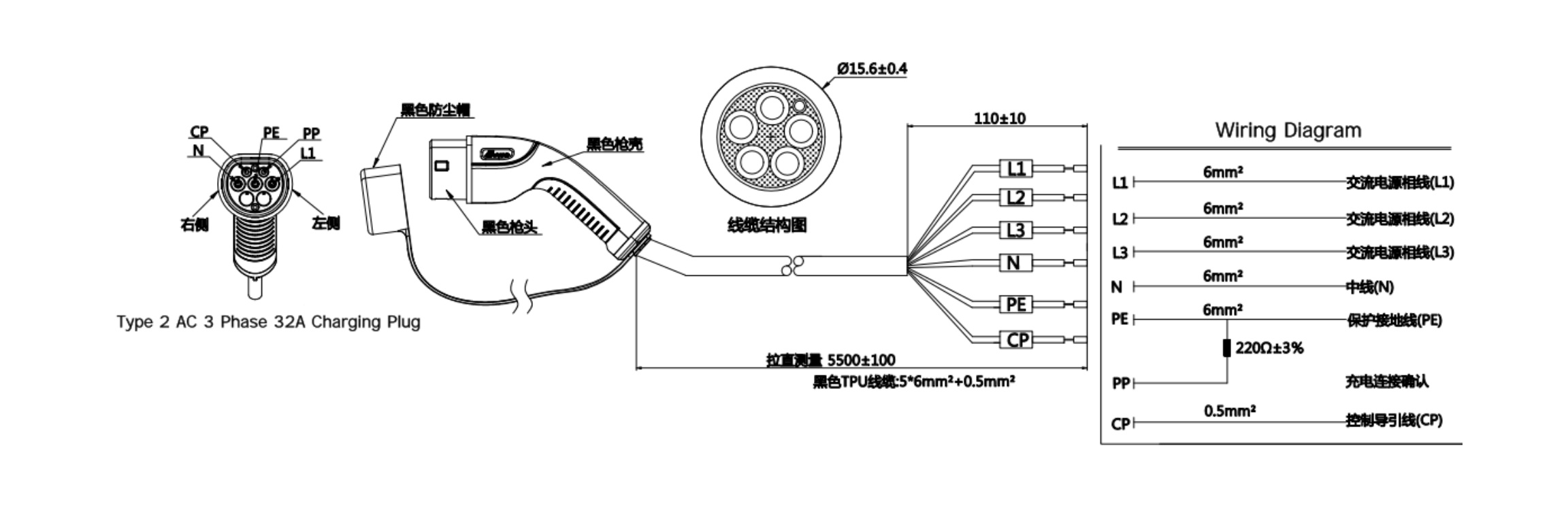

- Specificatioin No. 4:
- Rated Voltage and Current: 3 phases (AC 480V) 32A, compatible with wire gauge 6mm² (refer to the power cores, L1, L2, L3, N)
- Cable Jacket Material: TPU
- Cable Specification: 5*6mm² + 0.5mm²
- Cable OD : 15.6±0.4mm
