S2 CCS2 Type 2 DC 20A 40A 80A Charging Plug

Categories EV Charging Plug and Inlet Harness, Type 2 Charging Products Tags 20A, 40A, 80A, DC Charger, EV Charging Connector, Type 2

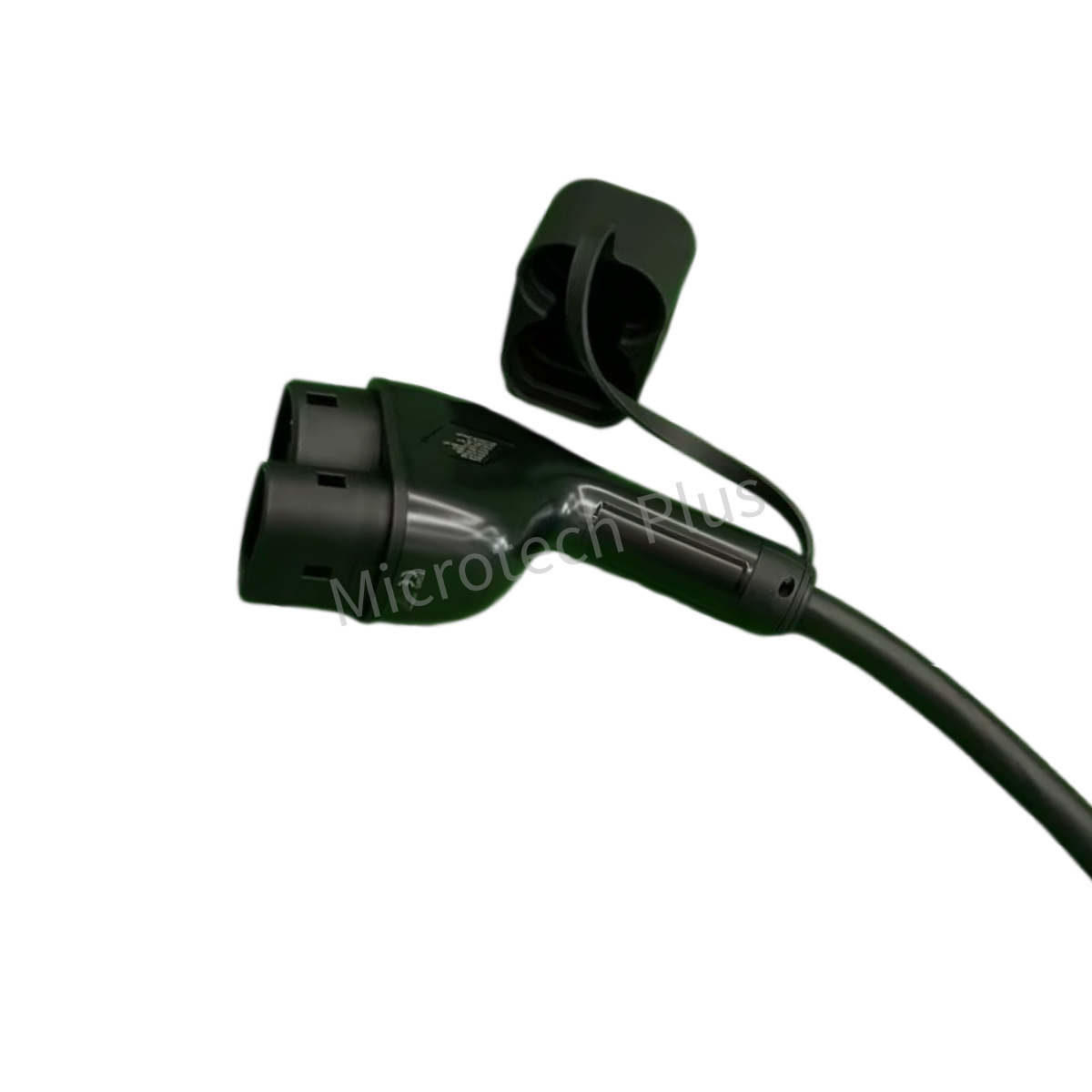

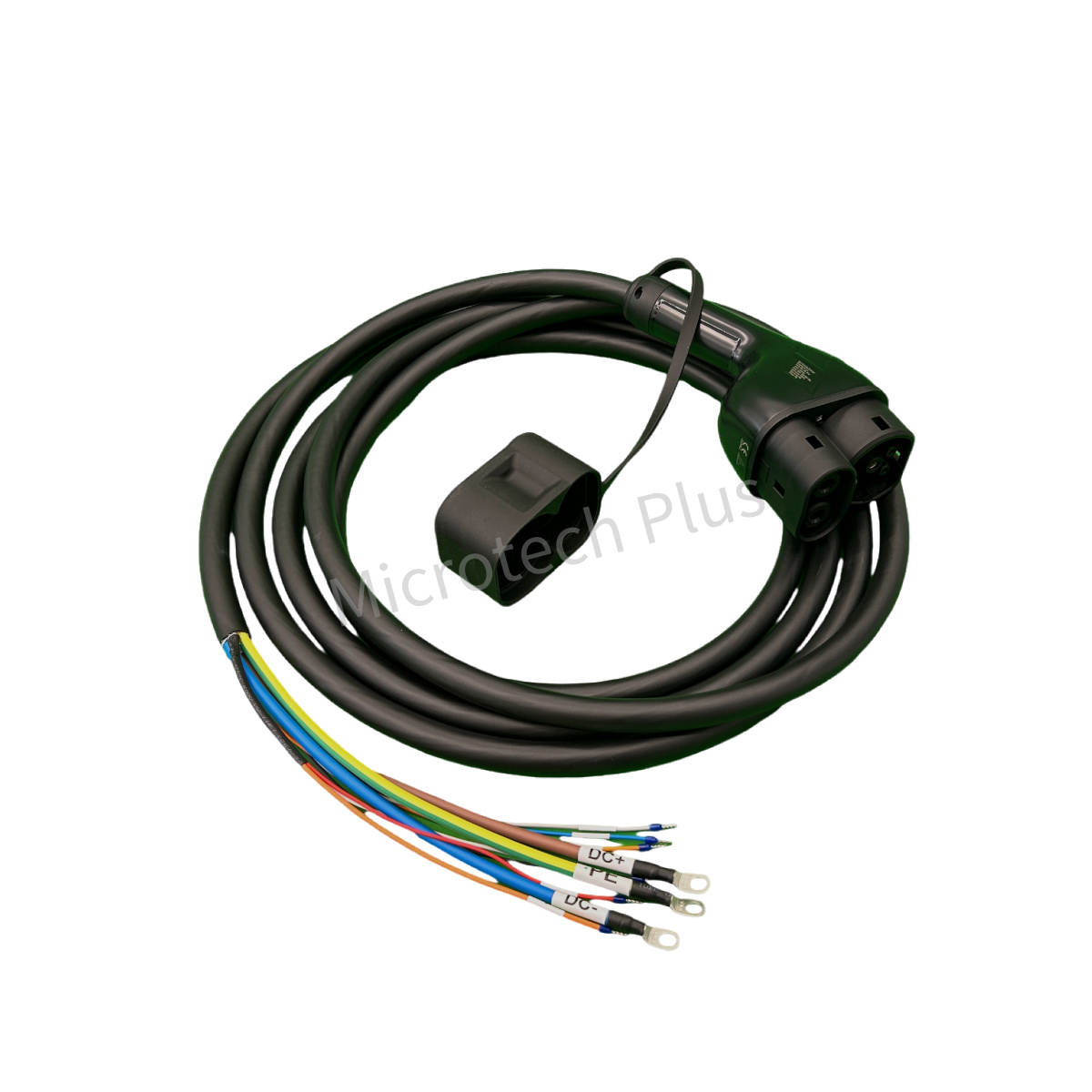

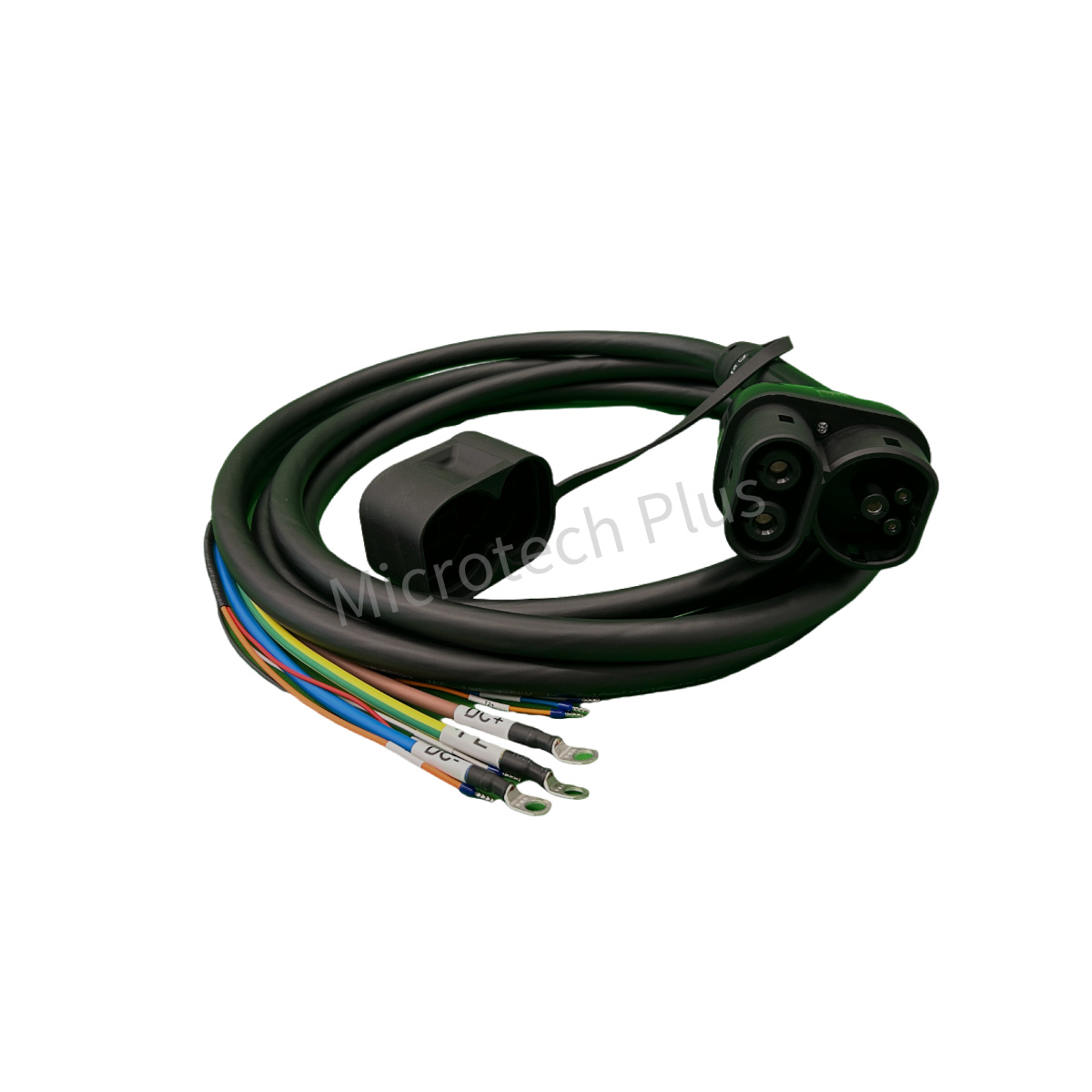

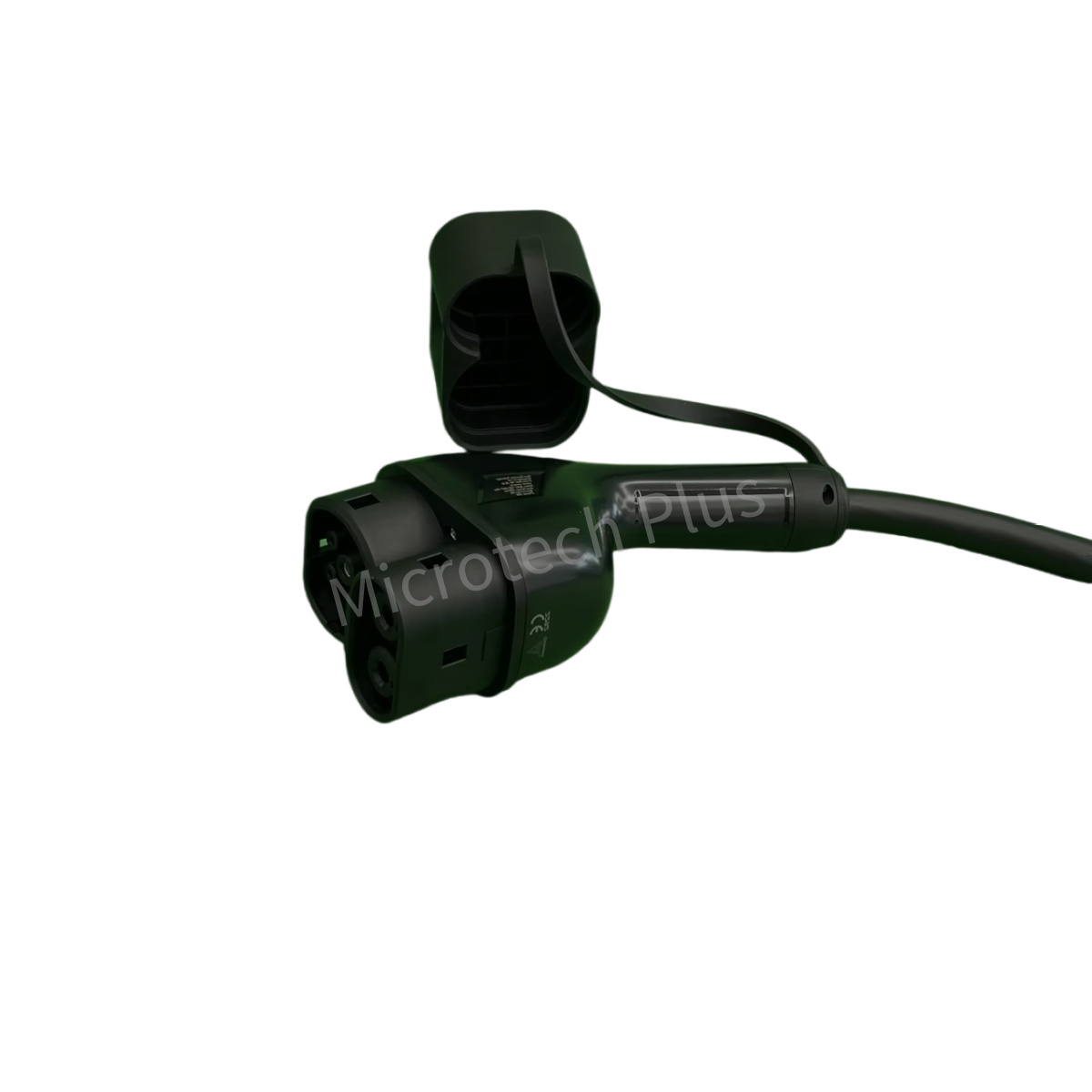

This is type 2 small DC charging plug, which is also called small CCS2 charging plug. The rated current is normally like DC 20A, 40A, 80A. The product is used for lower-power CCS2 charging pile, which could be installed at home or other private places.

Additional information

Application	Used For Vehicle Side
Series Name	S2
Standard	IEC 62196-3
Voltage	1000V
Current	20A, 40A, 80A
Plug/Receptacle	Plug
IP Degree	IP54

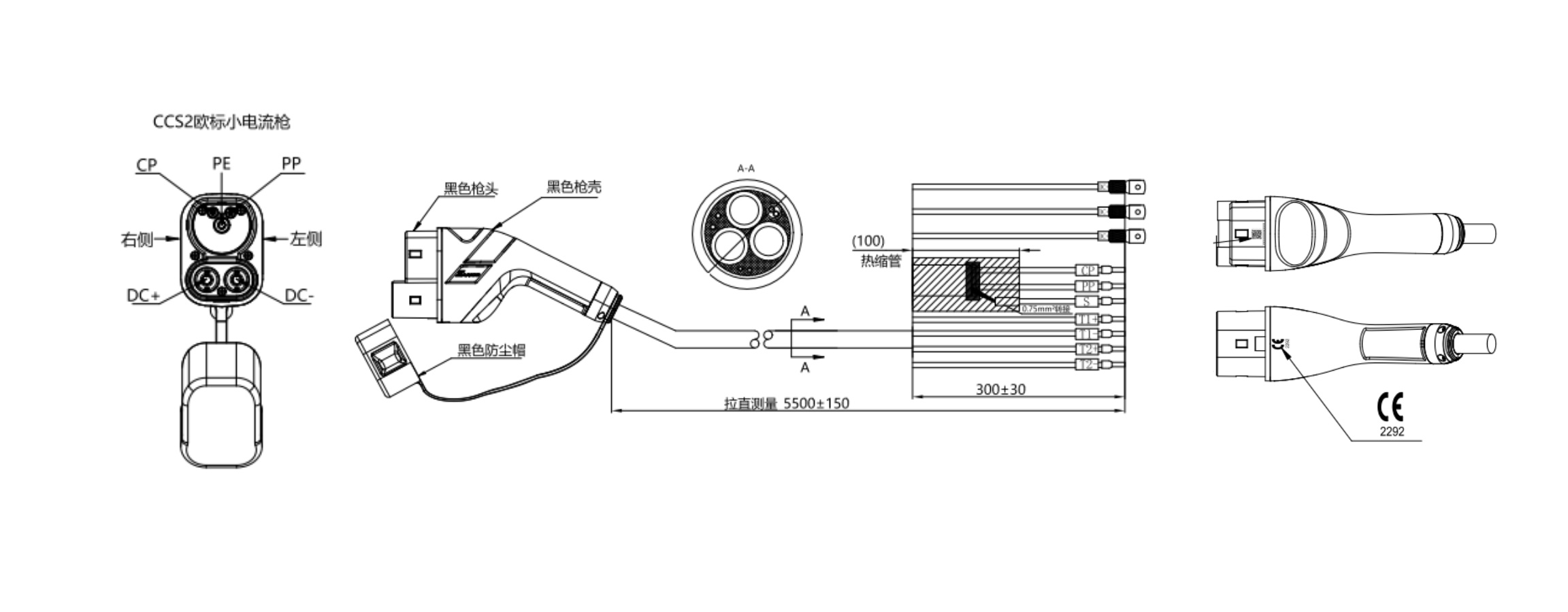

Product Details：

General Information

Features and Advantages

Outstanding industrial design, leading to evident sense of premium quality.
Ergonomically designed.
Certified by TUV and CE.
Temperature sensor could be PT1000 or NTC10K, according to your need.

Key Specifications

Rated Voltage: 1000V DC
Rated Current: 20A/40A/80A
Insertion and Extraction Force: <140N
Test Standard: IEC62196-1, IEC62196-3
Insulation Resistance: 1000MΩ (1min 1000V DC)
Withstanding Voltage: 3500V AC 1 min
Mechanical Life:≥10000 times(no load)
Insertion and Seperation Forces: <100N
Protection Degree: IP67
Ambient Temperature: -40°C～+85°C
Flame Retardant Grade: UL94V-0

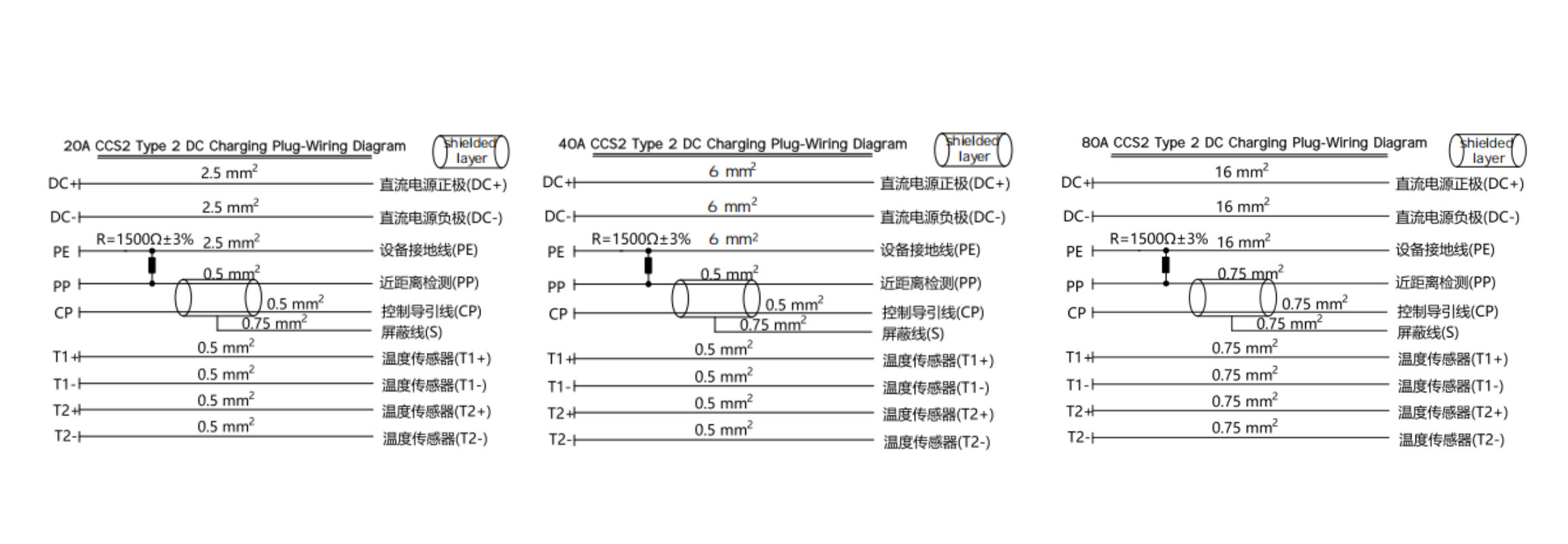

Ordering Information:

Specification No.1
- Rated Current: DC 20A, compatible with wire gauge 2.5mm² (refer to the power cores, DC+, DC-)
- Cable Jacket Material: TPU
- Cable Specification: 3*2.5mm² + 4*0.5 mm²+2*0.5mm²
- Cable OD : 13.2±0.5mm
Specification No.2
- Rated Current: DC 40A, compatible with wire gauge 6mm² (refer to the power cores, DC+, DC-)
- Cable Jacket Material: TPU
- Cable Specification: 3*6mm² + 4*0.5 mm²+2*0.5mm²
- Cable OD:14.7±0.5mm
Specification No.3
- Rated Current: 80A, compatible with wire gauge 16 mm² (refer to the power cores, DC+, DC-)
- Cable Jacket Material: TPU
- Cable Specification: 3*16mm² + 4*0.75 mm²+2*0.75mm²
- Cable OD: 19.2±0.5mm
