W2 Type 1 SAE AC 16A 32A 40A 48A 80A Charging Plug

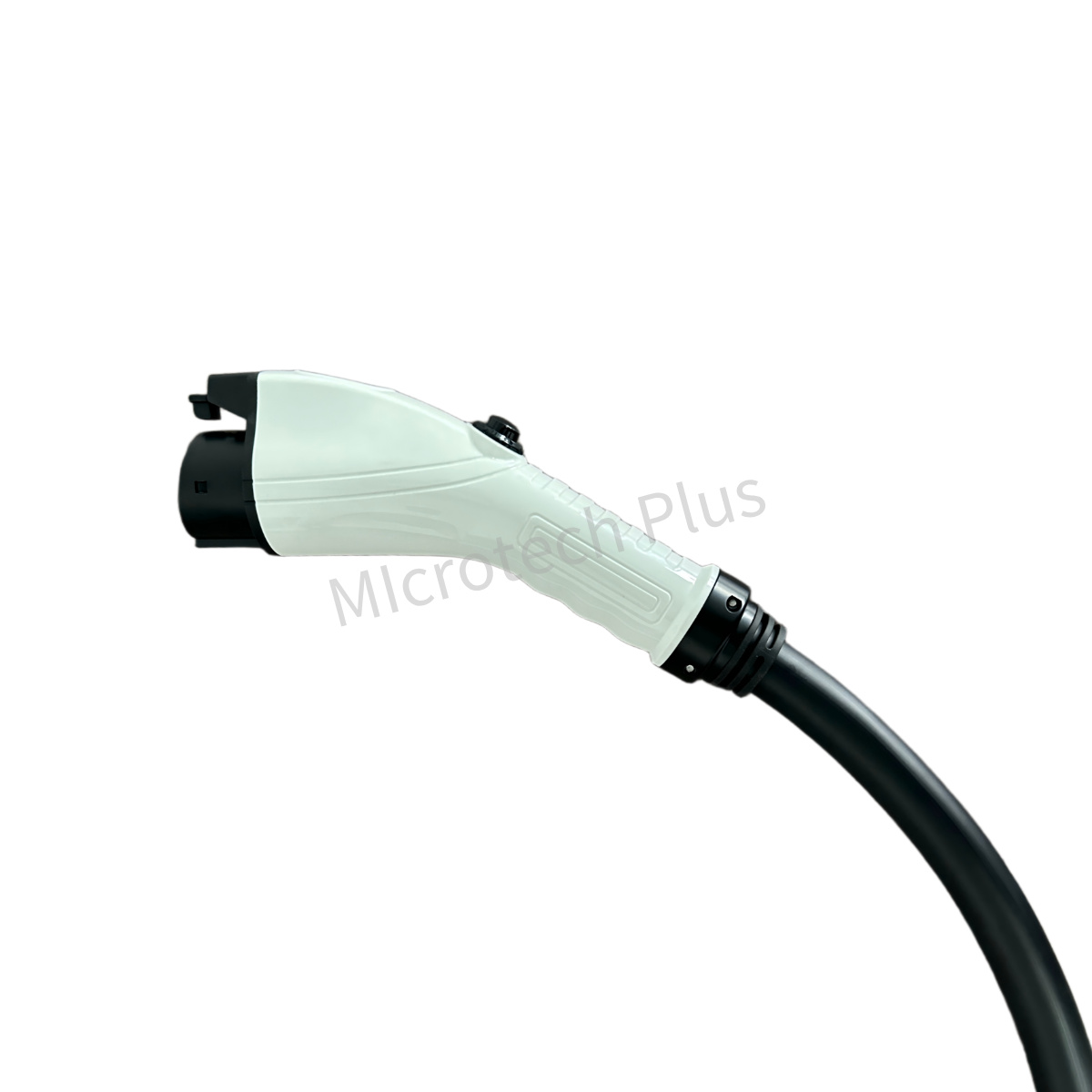

Type 1 SAE AC 16A 32A 40A 48A 80A Charging Plug 1-W

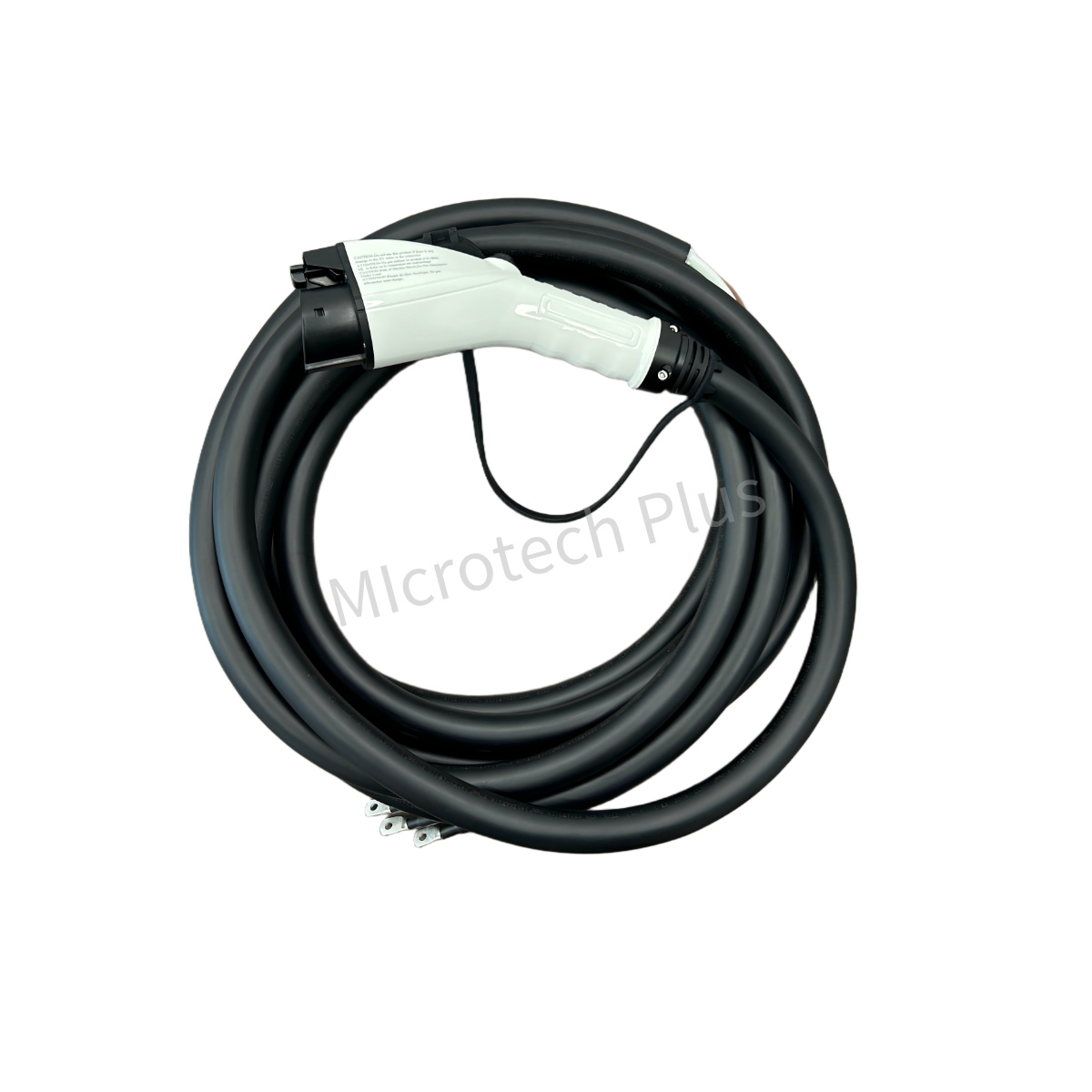

Type 1 SAE AC 16A 32A 40A 48A 80A Charging Plug 2-W

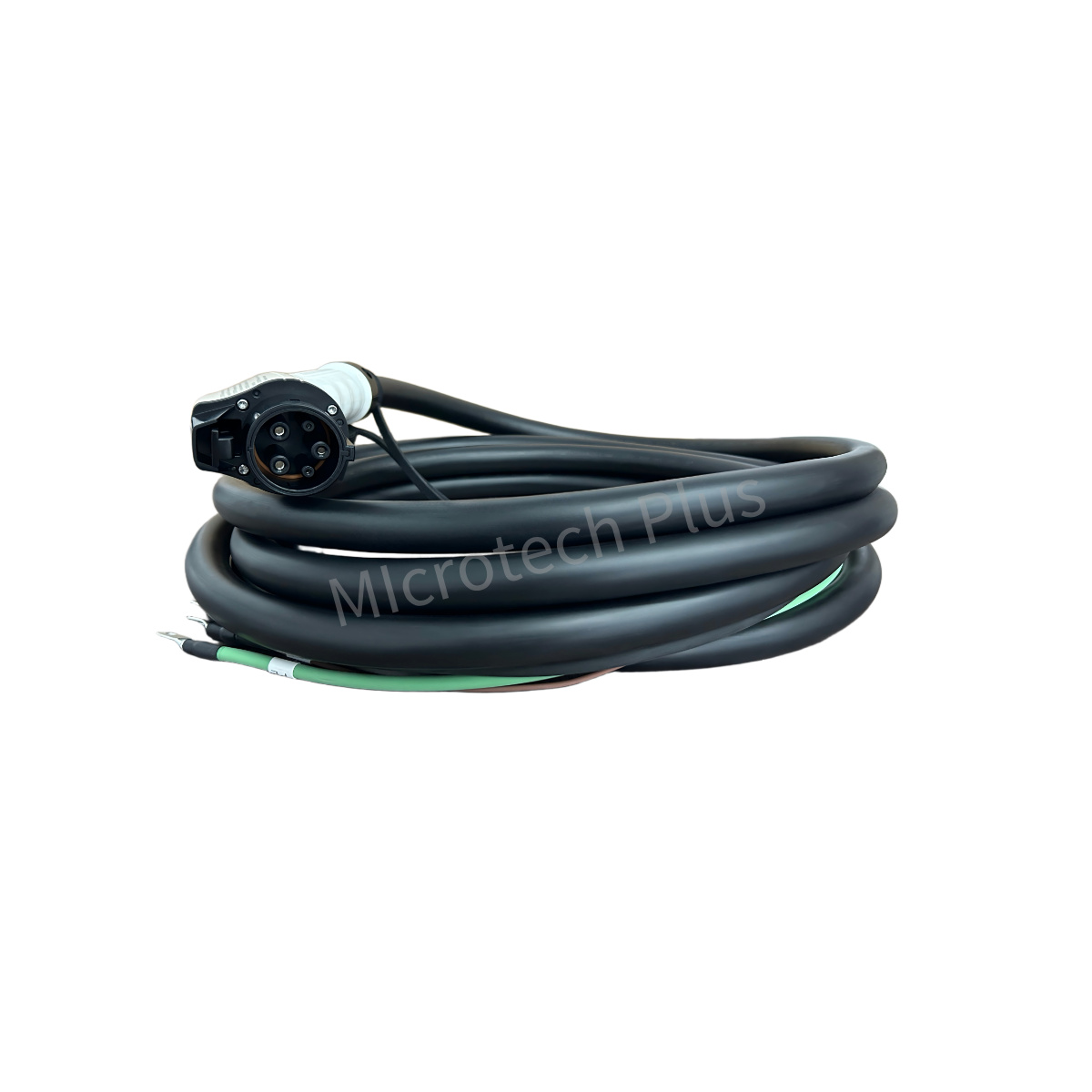

Type 1 SAE AC 16A 32A 40A 48A 80A Charging Plug 3-W

Categories EV Charging Plug and Inlet Harness, Type 1 Charging Products Tags 16A, 32A, 40A, 48A, 80A, EV Charging Connector, Type 1

This is a type 1 AC charging plug, for type 1 AC charging station.

Additional information

Application	Used For Vehicle Side
Series Name	W2
Standard	SAE J1772
Voltage	250V
Current	16A, 32A, 40A, 48A, 80A
Plug/Receptacle	Plug
IP Degree	IP55

Product Details：

General Information

This is a type 1 AC charging plug, for type 1 AC charging station.
The rated current can be 16A-80A.

Features and Advantages

Outstanding industrial design, leading to evident sense of premium quality.
Ergonomically designed, easy to operate.
Certified by UL, TUV.
Customizable color (black and white) and cable length.

Key Specifications

Rated Voltage: 250V AC
Rated Current: 16A, 32A, 40A, 48A, 80A
Withstand Voltage: 2500V AC
Protection Degree: IP55
Insertion and Withdrawal Force: <100N
Mechanical Life: No load plug and unplug, >10000 times/cycles
Ambient Temperature: -40℃ ~ +50℃

Ordering Information

Rated Current: there are 5 specs, 16A, 32A, 40A, 48A, 80A
Cable length: 5m, 6m or other length which you need.

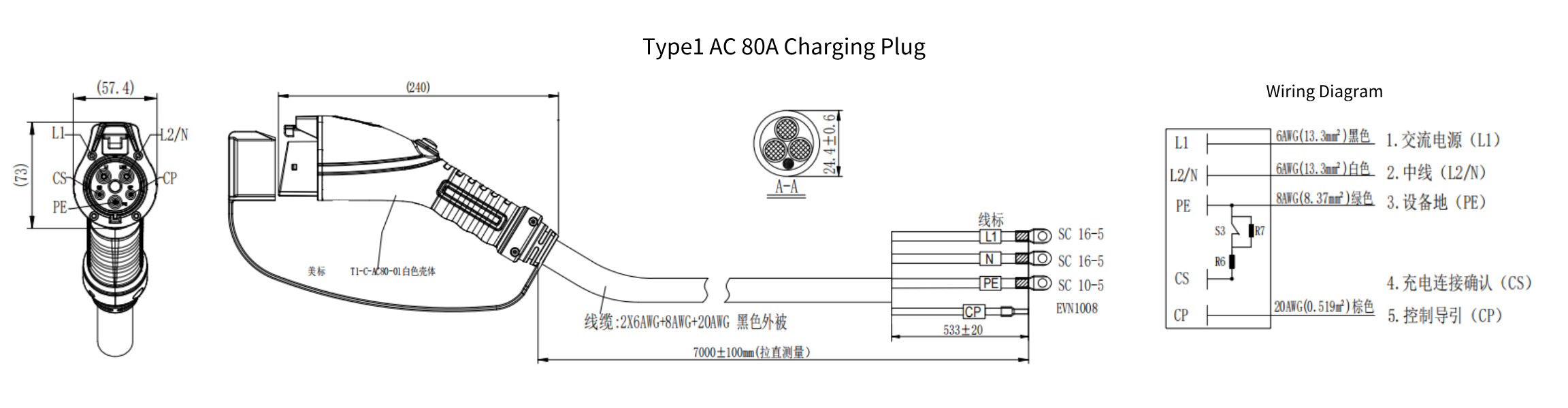

Drawing
