S1P 2 Pin 130A 200A 250A 300A Plastic Plug

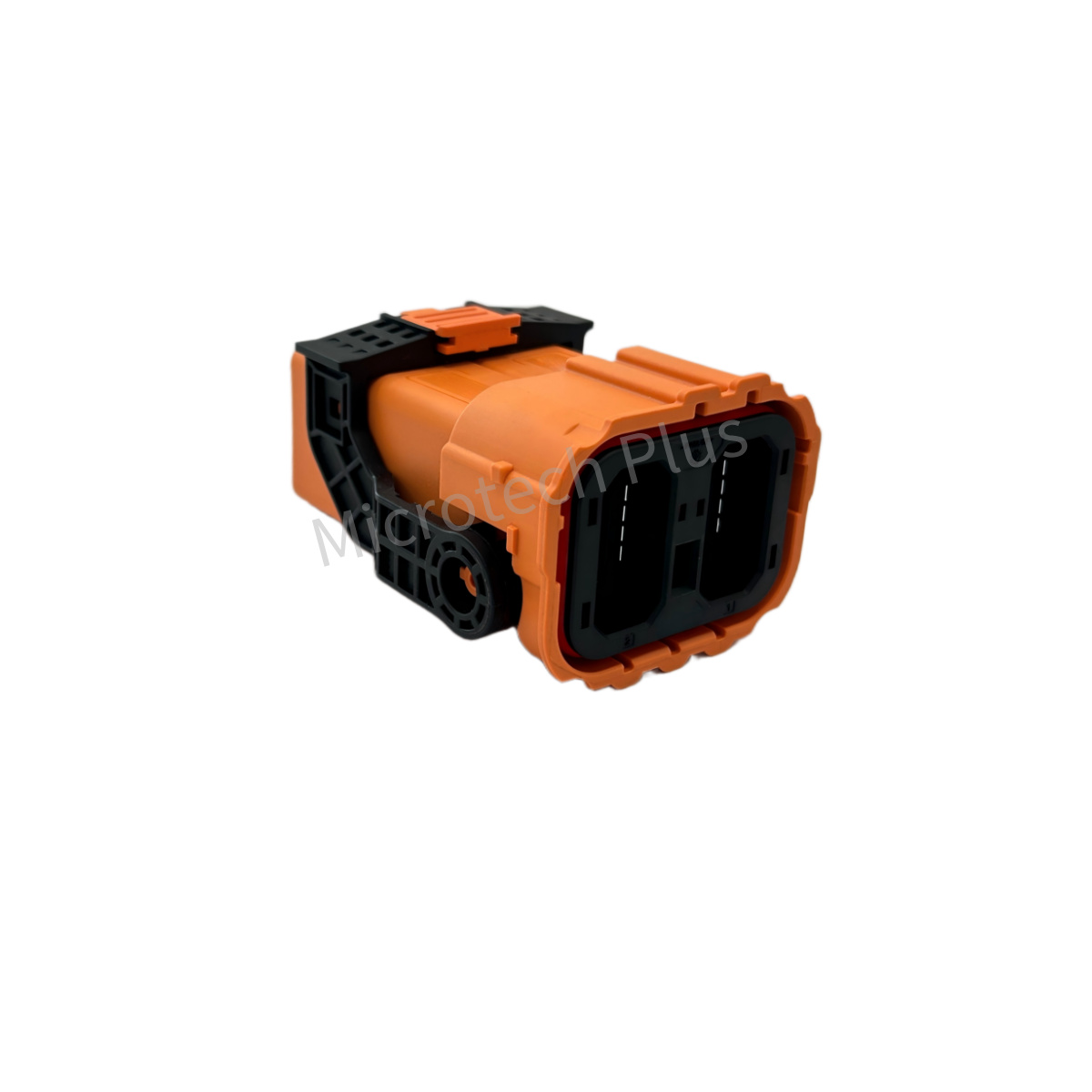

EV Plastic 2 Pin 130A 200A 250A 300A Connector-Plug 1-SK

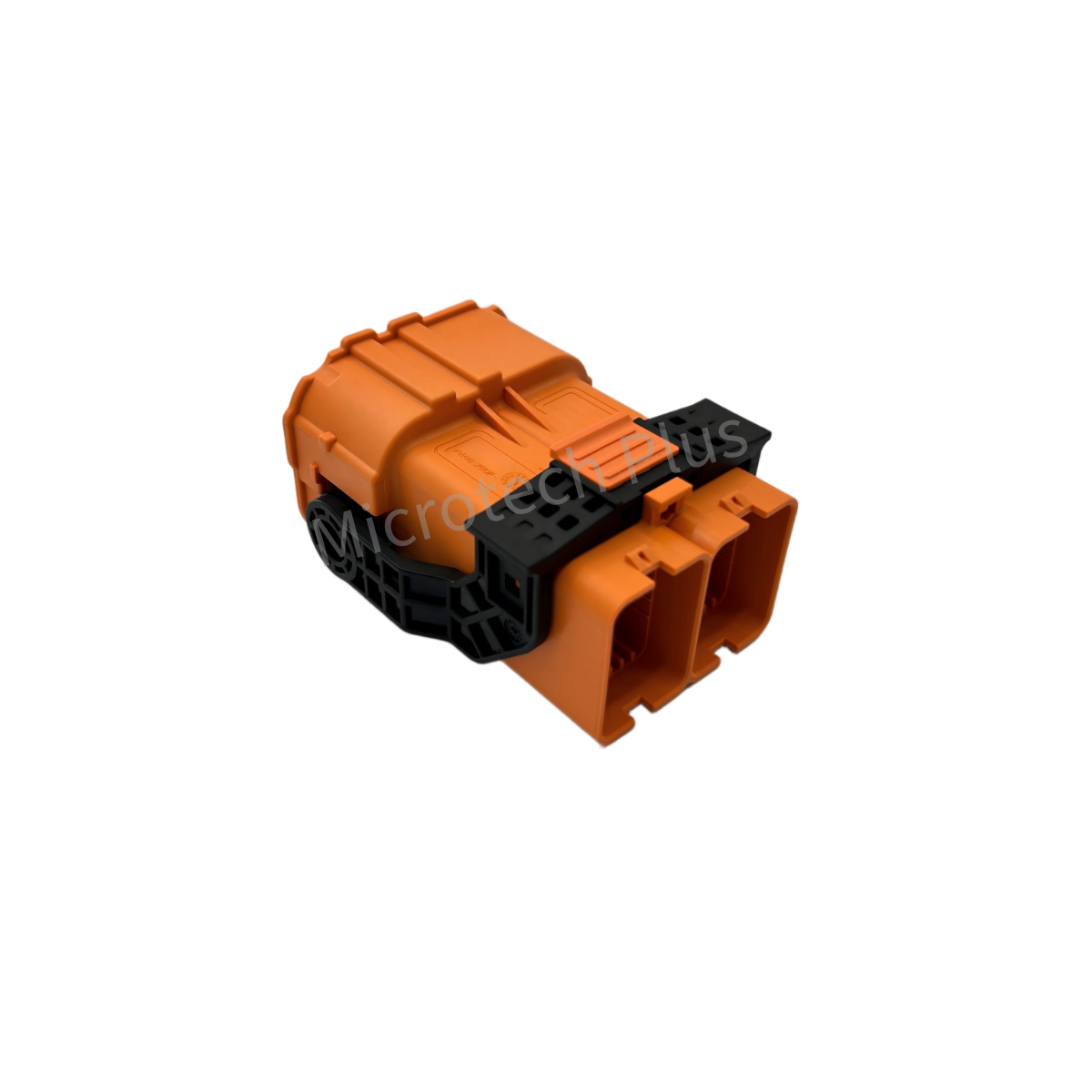

EV Plastic 2 Pin 130A 200A 250A 300A Connector-Plug 2-SK

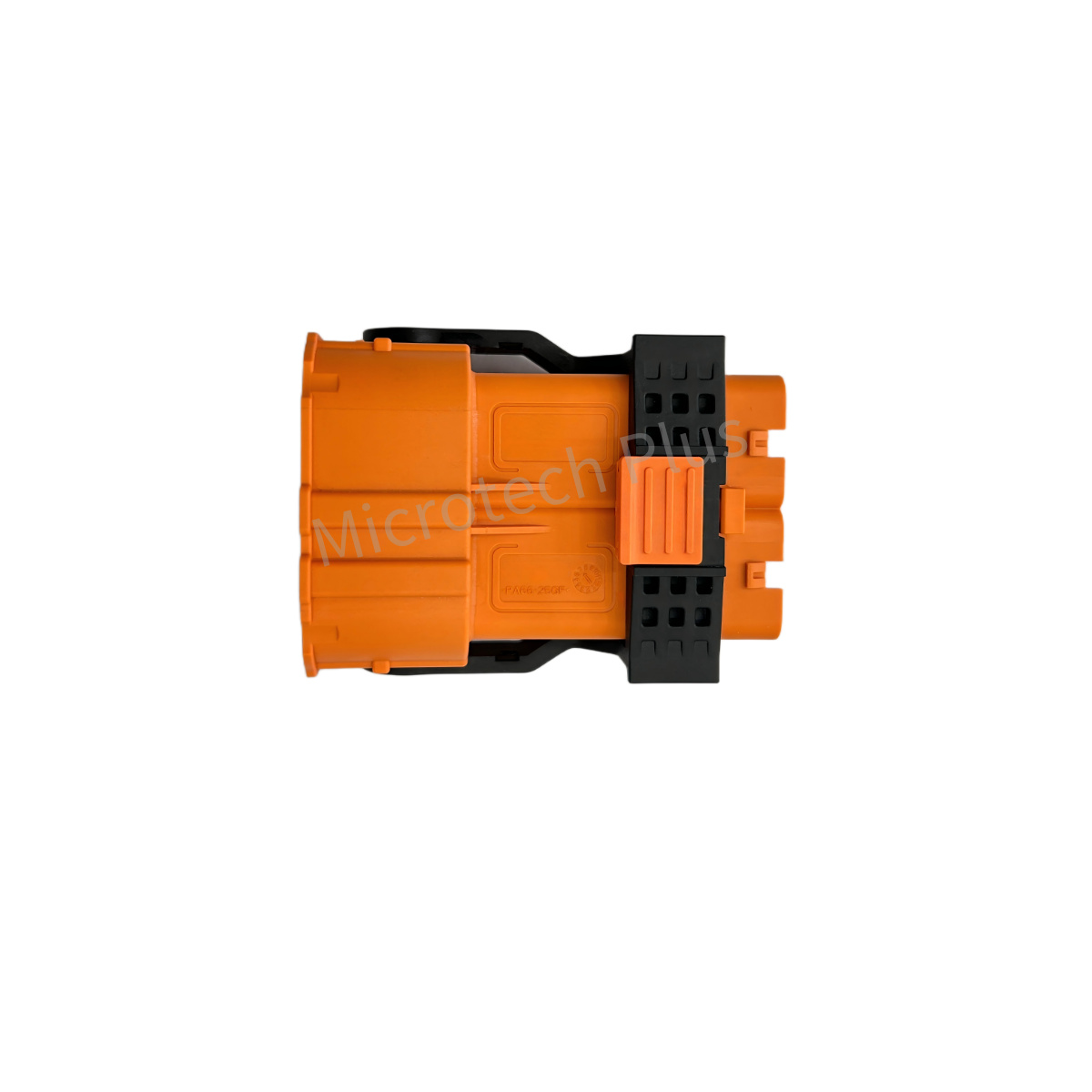

EV Plastic 2 Pin 130A 200A 250A 300A Connector-Plug 3-SK

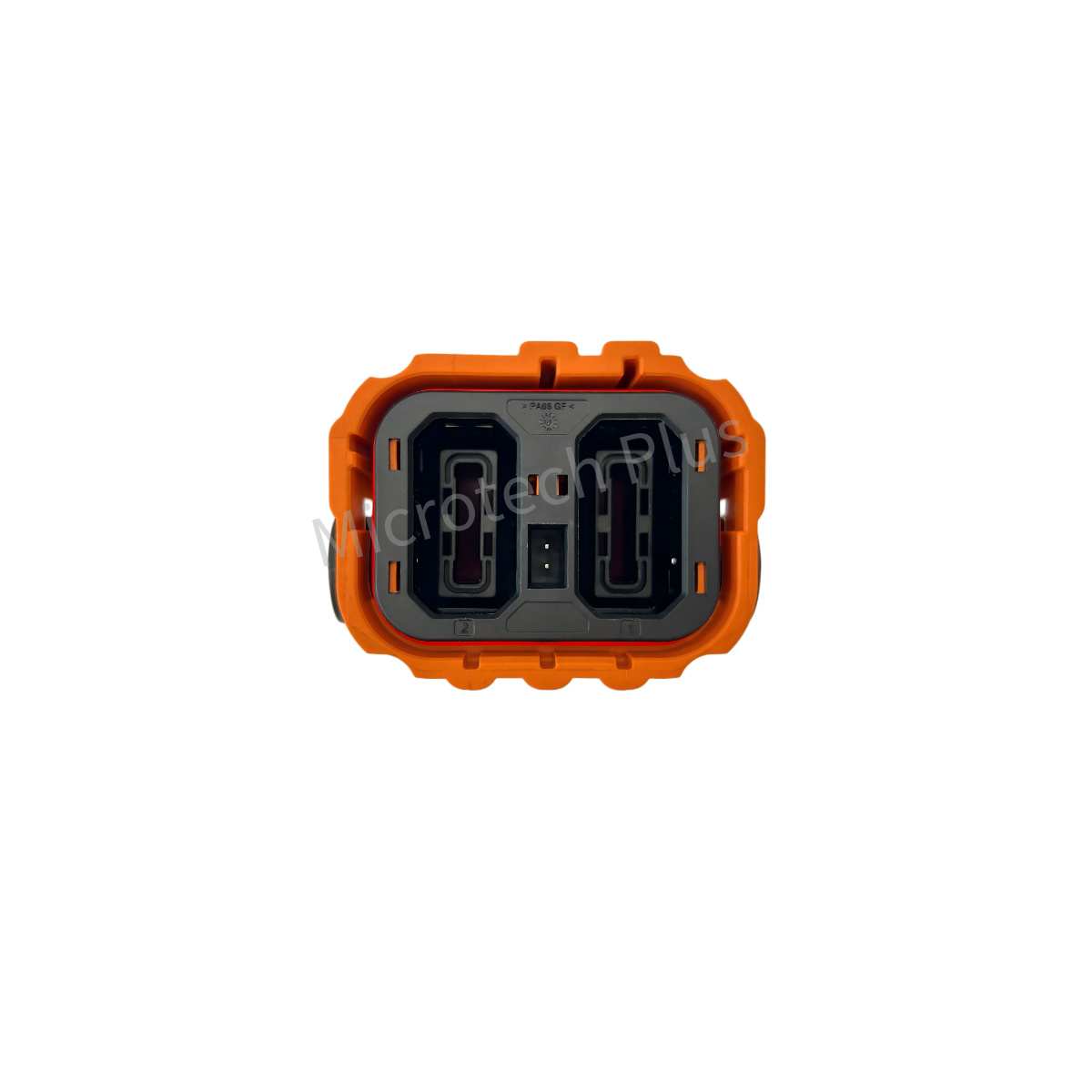

EV Plastic 2 Pin 130A 200A 250A 300A Connector-Plug 4-SK

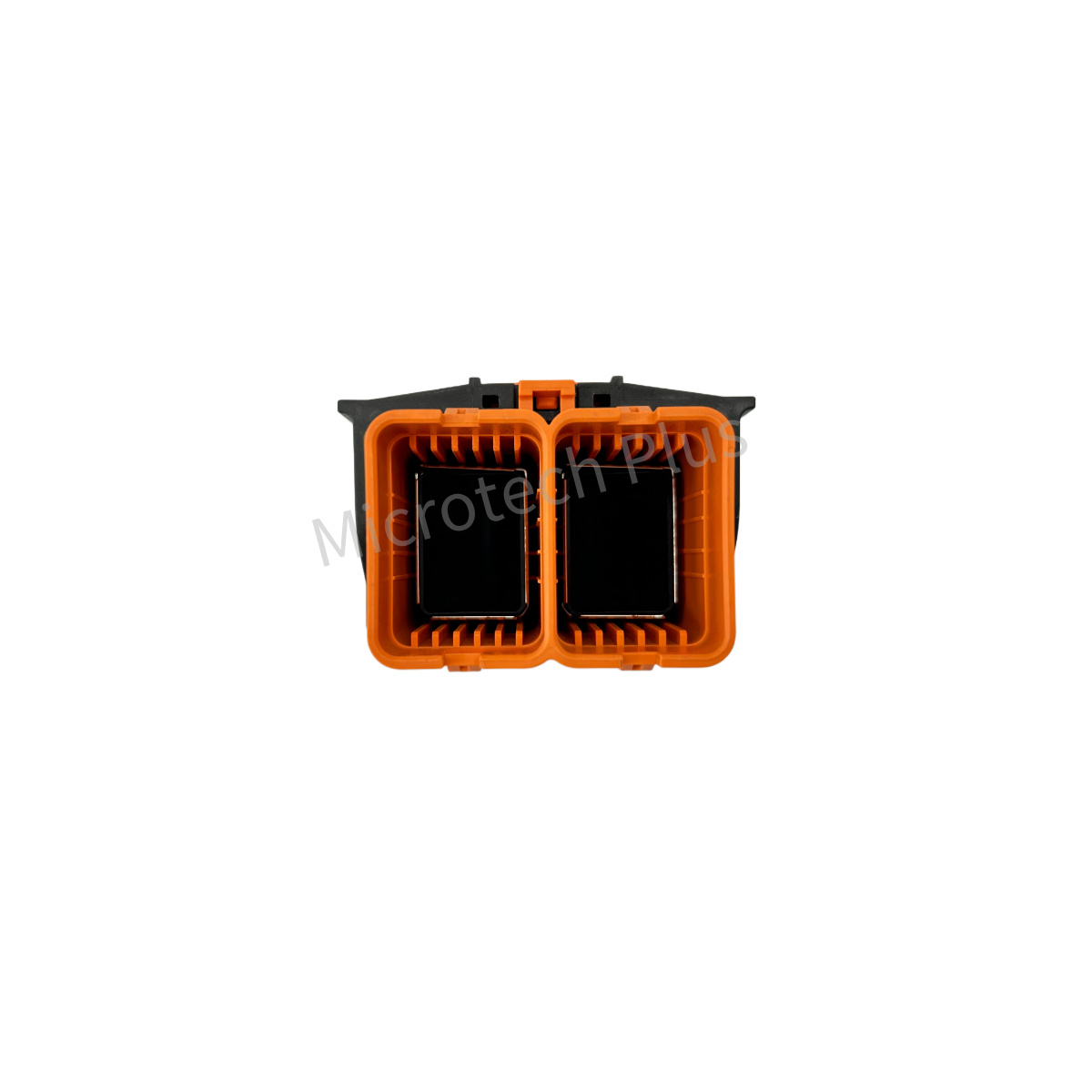

EV Plastic 2 Pin 130A 200A 250A 300A Connector-Plug 5-SK

Categories EV Connector, EV Plastic Power Connector Tags 130A, 2 pin, 200A, 250A, 300A, Power Connector

This is an EV plastic 2 pins connector (Plug), and rated current can be 130A, 200A, 250A, and 300A. It mainly applied to battery positive(+), negtive(-), connection from PDU to MCU, MCU to Motor, charging inlet to battery system, and between different battery packs, etc.

Additional information

Application	Electric Vehicle (EV)
Series Name	S1P
Standard	IEC
Material	Plastic
Voltage	1000V
Current	130A, 200A, 250A, 300A
Pin No.	2 Pins
Signal or Power	Power
Plug/Receptacle	Plug
Straight or Right Angle	Straight
HVIL or Not	HVIL
Shielding or Not	Shielding
IP Degree	IP68, IP6K9K, IPXXB

Product Details：

The mated receptacle is as below.

General Information

This is an EV plastic 2 pins connector (Plug), and rated current can be 130A, 200A, 250A, and 300A. It mainly applied to battery positive(+), negtive(-), connection from PDU to MCU, MCU to Motor, charging inlet to battery system, and between different battery packs, etc.

Features and Advantages

Safe and reliable design and structure
Superior performance, anti-misinsertion, secondary unlocking, multi-key
Straight and right angle types are available for choosing

Key Specifications

Rated Voltage: DC 1000V
Rated Current: 130A, compatible with 25 mm² wire; 200A, compatible with 35 mm² wire; 250A, compatible with 50 mm²; 300A, compatible with 70 mm².
Withstand Voltage: AC 3000V
Insulation Resistance: ≥500MΩ
Protection Rating: IP68, IP6K9K, IPXXB
Flame Retardant Rating: UL94-V0
Vibration Rating: USCAR-2 V2
Mechanical Life: 50 times/cycles min.
Ambient Temperature: -40℃- +125℃
HVIL Function: Yes
Shielding: 360°
Salt Spray Resistance: 96 Hours
Test Stardard: USCAR-2

Ordering Information

You can base on below information to choose the specification and ask quote from us.

Specification No. 1
- Rated current: 130A, compatible with 25mm² shielding cable.
- Shape: You can choose Straight Type or Right Angle Type.
- Keys: A, B, C, D (Just structure is different, same color)
- OD: 15.5±0.3mm, shielding cable
Specification No. 2
- Rated current: 200A, compatible with 35mm² shielding cable.
- Shape: You can choose Straight Type or Right Angle Type.
- Keys: A, B, C, D (Just structure is different, same color)
- OD: 14.1±0.3mm, shielding cable
Specification No. 3
- Rated current: 250A, compatible with 50mm² shielding cable.
- Shape: You can choose Straight Type or Right Angle Type.
- Keys: A, B, C, D (Just structure is different, same color)
- OD: 15.5±0.3mm, shielding cable

Specification No. 4
- Rated current: 300A, compatible with 70mm² shielding cable.
- Shape: You can choose Straight Type or Right Angle Type.
- Keys: A, B, C, D (Just structure is different, same color)
- OD: 17.8±0.4mm, shielding cable

Drawing

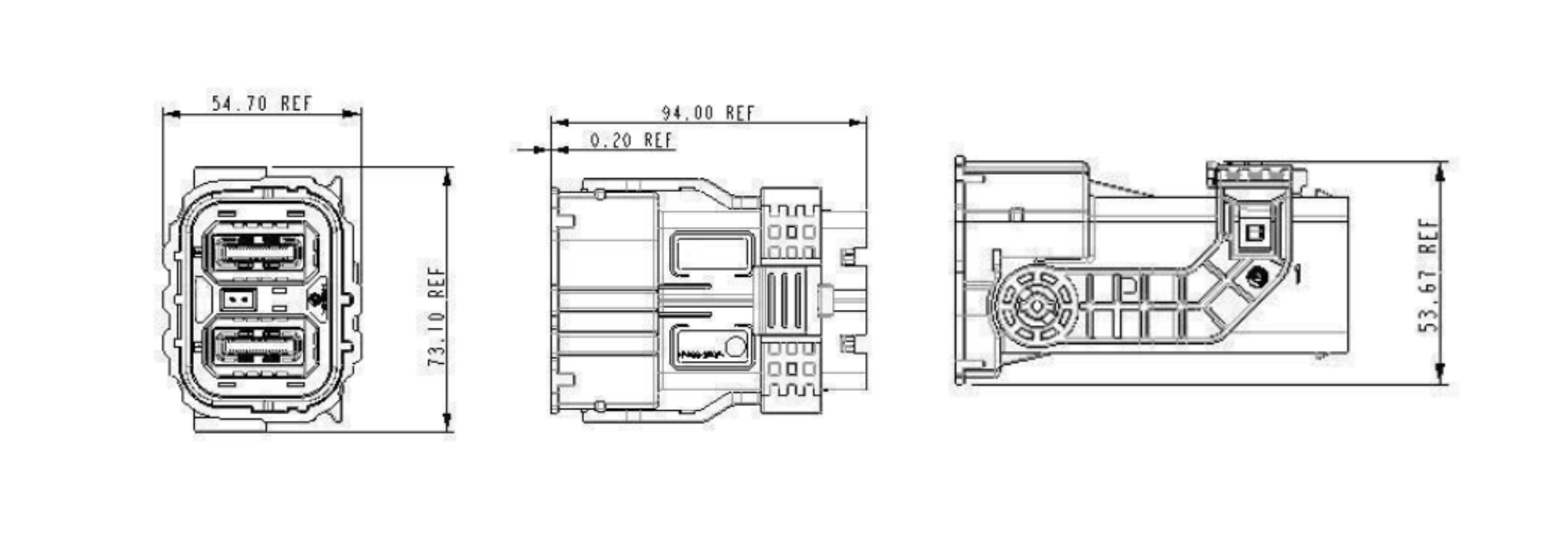

Overall Dimensions

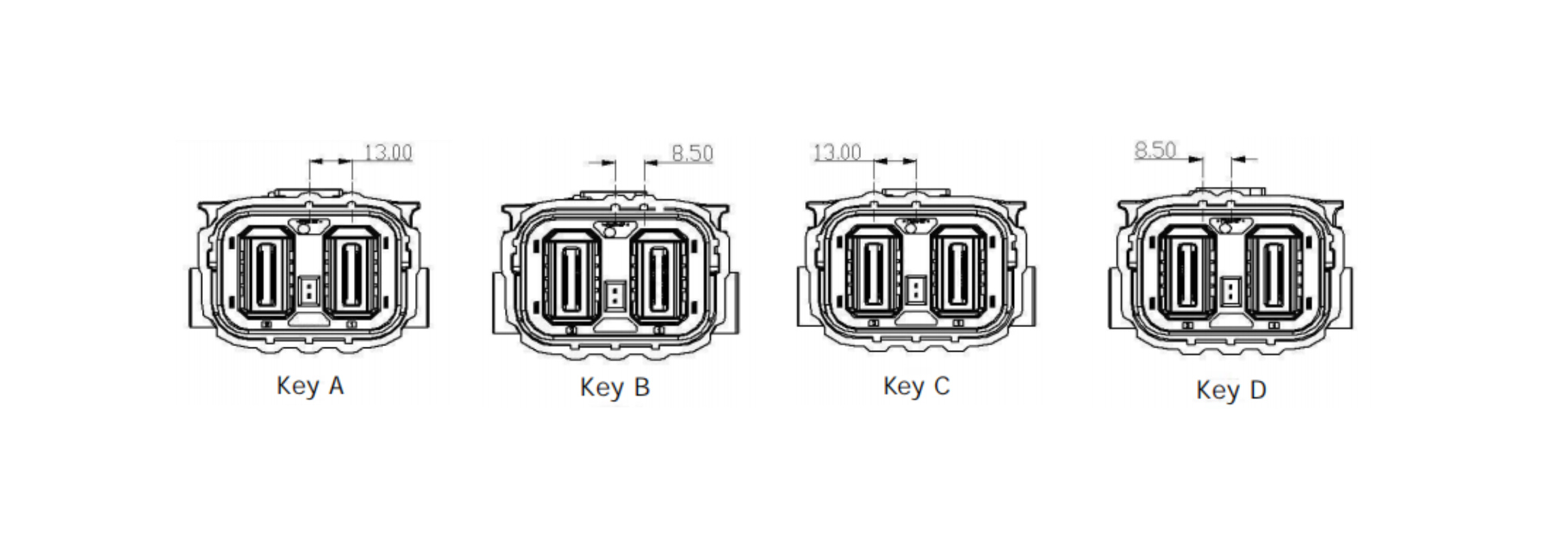

Key Display
