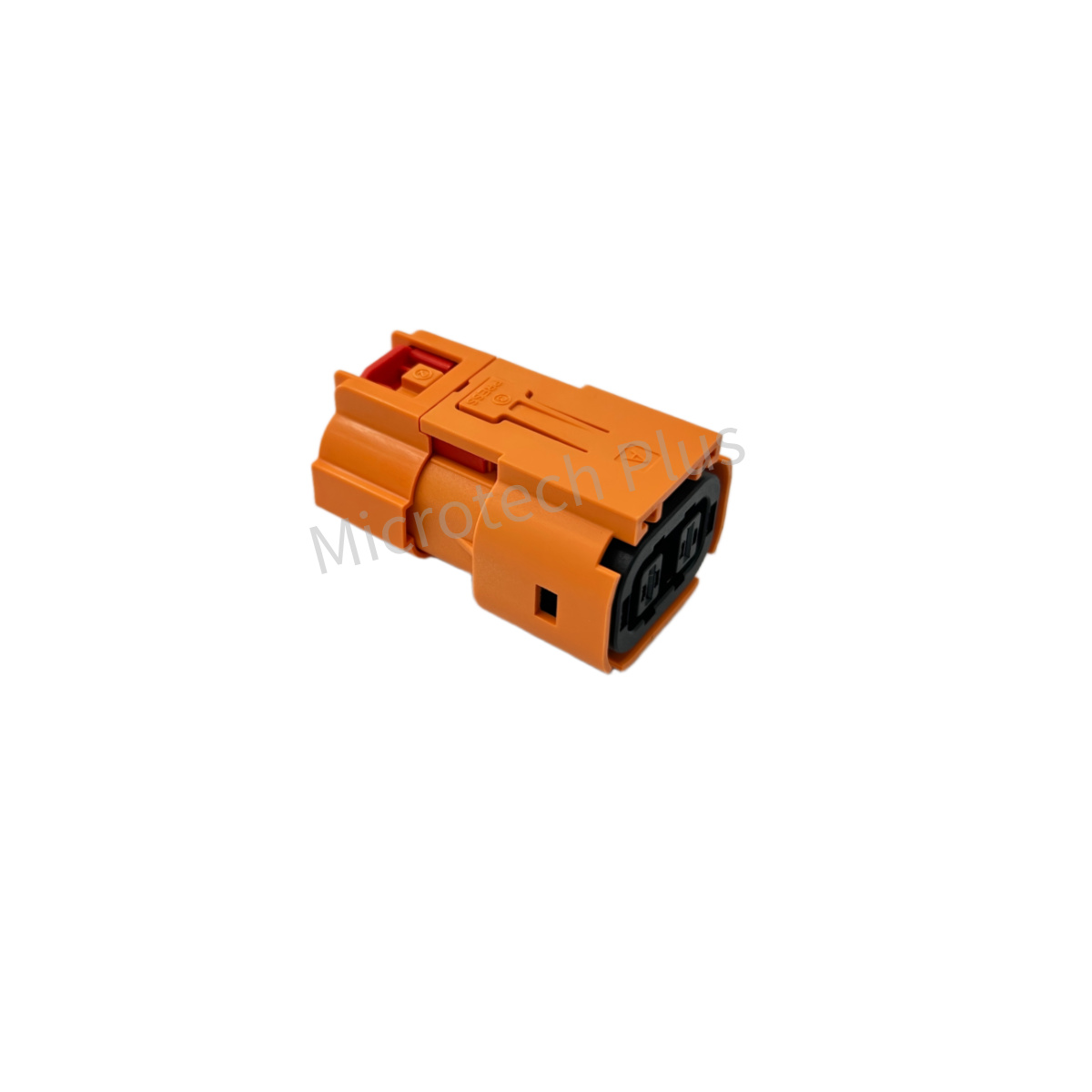

W1P-A 2 Pin 20A 25A 40A Plastic Plug

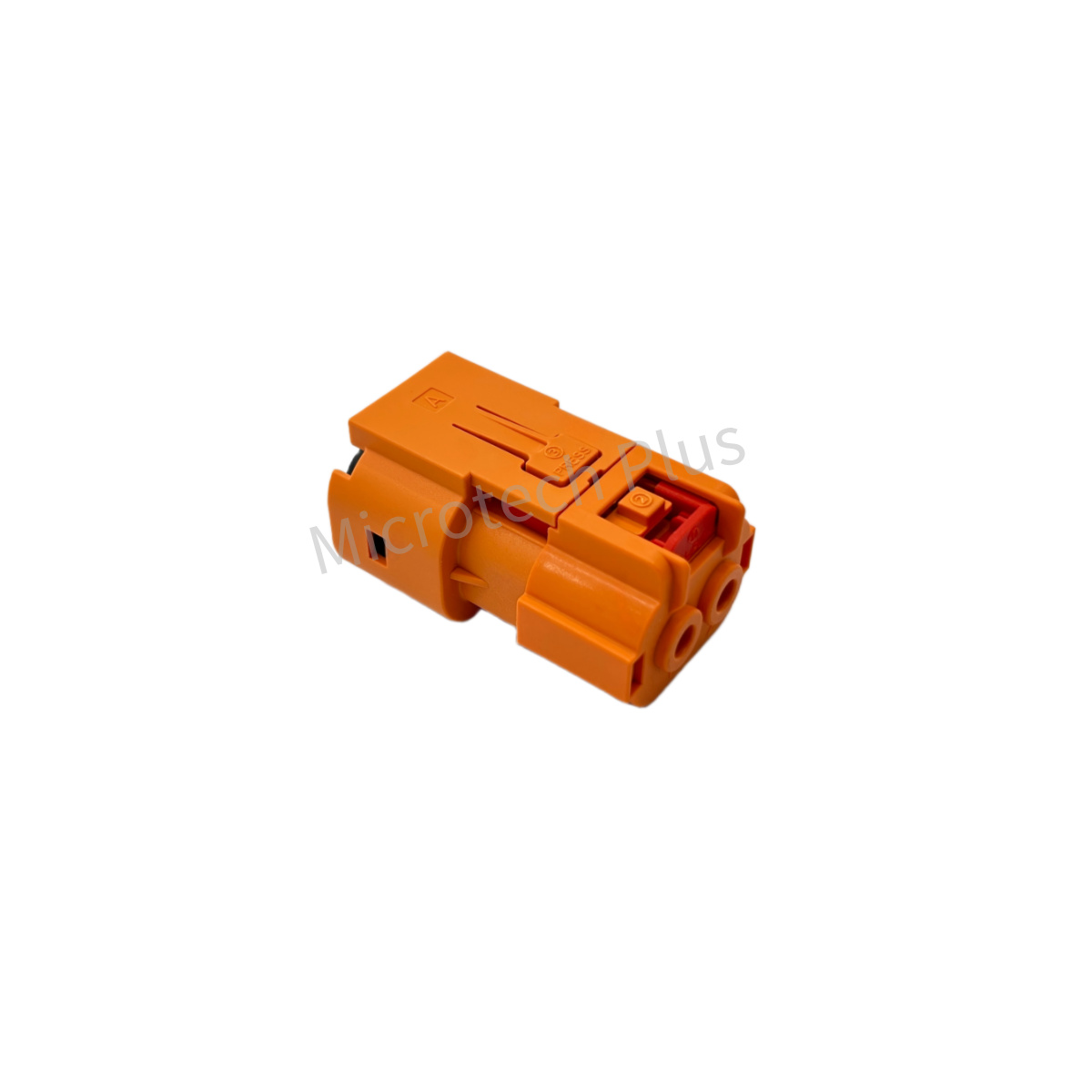

EV Plastic 2 Pin 3 Pin 4 Pin 20A 25A 40A Connector-Plug 1-W

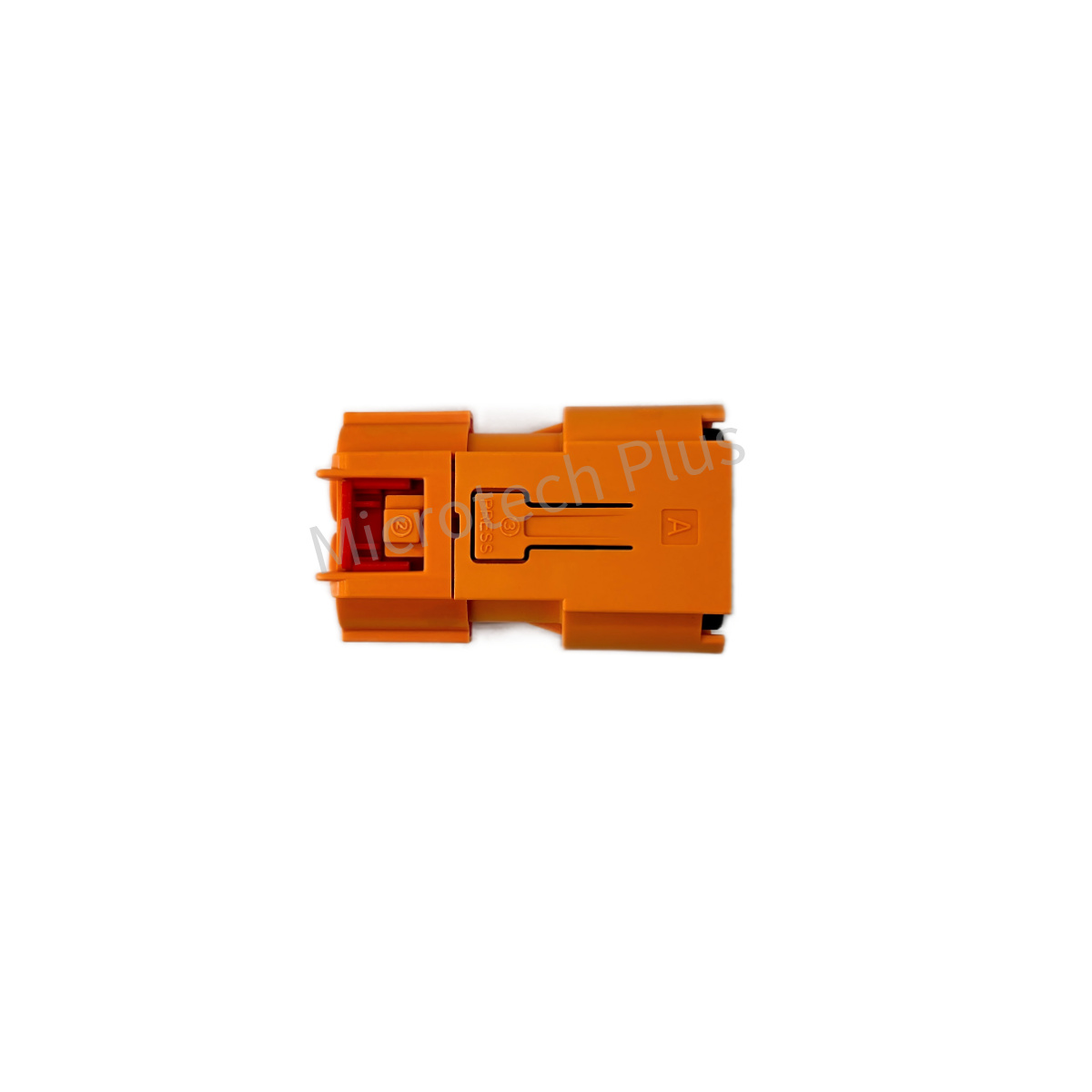

EV Plastic 2 Pin 3 Pin 4 Pin 20A 25A 40A Connector-Plug 2-W

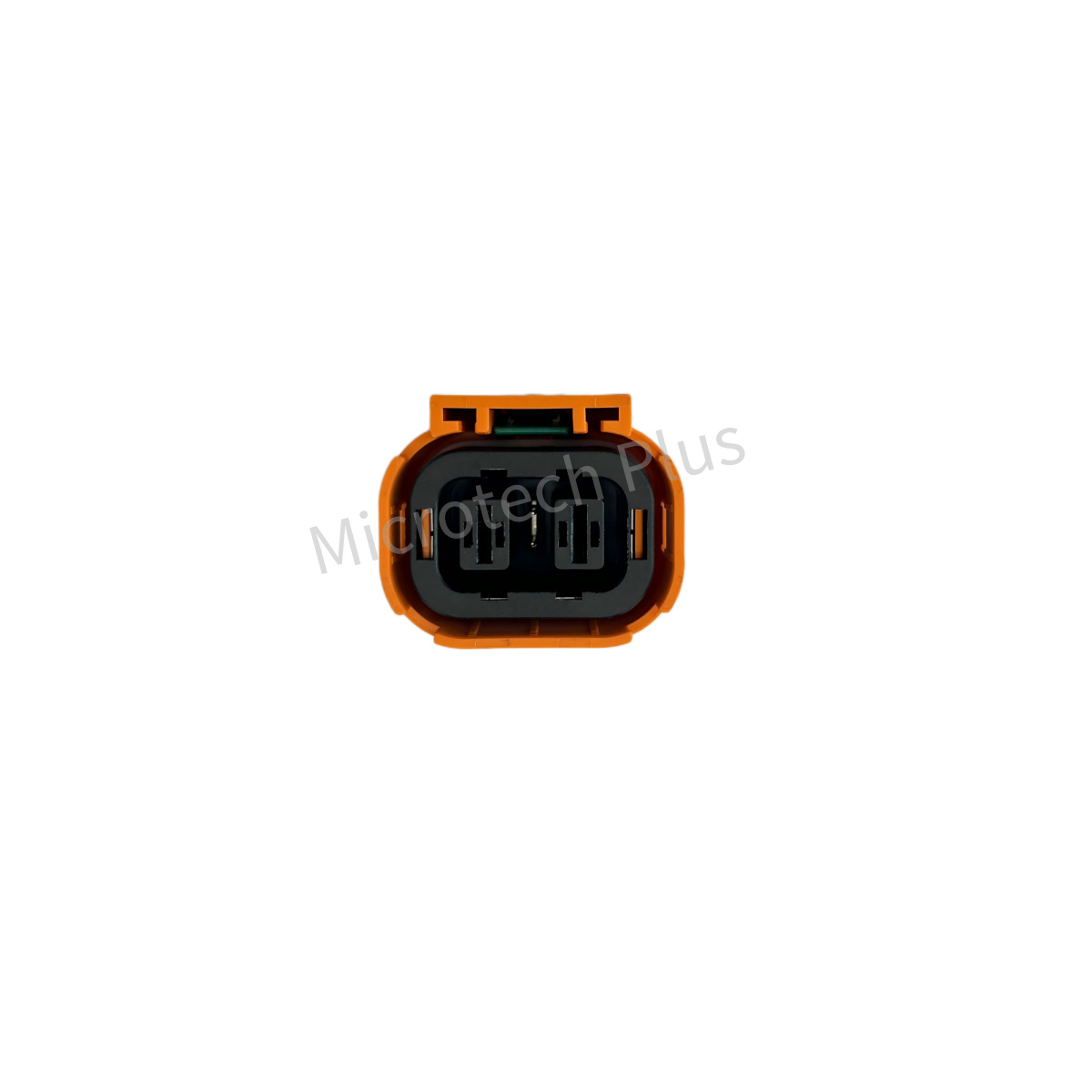

EV Plastic 2 Pin 3 Pin 4 Pin 20A 25A 40A Connector-Plug 3-W
EV Plastic 2 Pin 3 Pin 4 Pin 20A 25A 40A Connector-Plug 4-W

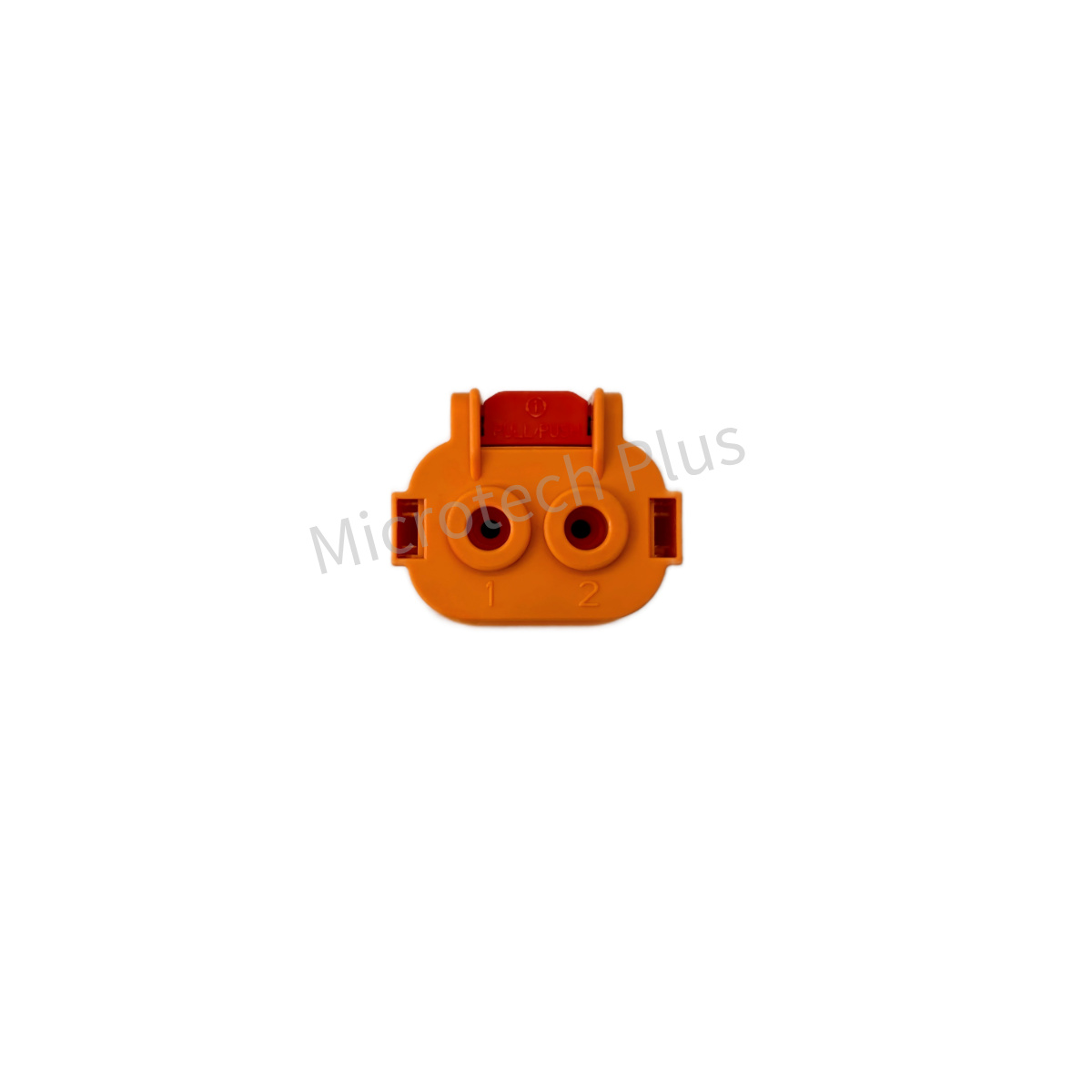

EV Plastic 2 Pin 3 Pin 4 Pin 20A 25A 40A Connector-Plug 5-W
Categories , Tags , , , ,

This is an EV plastic 2 pin connector (plug), which is specially designed for small and medium current applications in the EV. It can be used for PDU, AC charging inlet harness, Air Conditioner, DCDC, oil and air pump, and defroster in the Electric Vehicles.

Additional information

Application

Electric Vehicle (EV)
Series Name

W1P
Standard

IEC
Material

Plastic
Voltage

1000V
Current

20A, 25A, 40A
Pin No.

2 Pins
Signal or Power

Power
Plug/Receptacle

Plug
Straight or Right Angle

Straight
HVIL or Not

HVIL or No HVIL
Shielding or Not

Shielding or No Shield
IP Degree

IP67
Ask For Quote

Product Details：

The mated receptacle is as below.

EV Plastic 2 Pin 3 Pin 4 Pin 20A 25A 40A Connector-Receptacle 1-W

W1P-A 2 Pin 20A 25A 40A Plastic Receptacle

General Information

  • This is an EV plastic 2 pin connector (plug), which is specially designed for small and medium current applications in the EV. It can be used for PDU, AC charging inlet harness, Air Conditioner, DCDC, oil and air pump, and defroster in the Electric Vehicles.



Features and Advantages

  • Plastic high voltage connector, cost-effective
  • Compact structure, small size
  • CPA (Connector Position Assurance) function
  • Compatible with multiple cable gauges
  • High Voltage Interlock Loop (HVIL) function
  • IPXXB, finger-touch-proof design
  • 360° electromagnetic shielding



Key Specifications

  • Pin Number: 2 Pins
  • HVIL (High Voltage Interlock Loop) Function: Yes
  • Rated Voltage: 1000V DC
  • Rated Current @ambient temperature 30℃:
    • 20A compatible with 2.5 mm² shielded cable
    • 25A compatible with 4 mm² shielded cable
    • 40A compatible with 6 mm² shielded cable
  • Insulation resistance: ≥ 2000 MΩ
  • Withstand Voltage: 3000 V AC
  • Protection Rating: IP67
  • Ambient  Temperature: -40℃～+125℃
  • Electromagnetic Shielding: 360º shielding
  • Mechanical Life: ≥ 50 times/cycles
  • Salt Spray: 48 Hours
  • Housing and Insulator Material: Nylon
  • Insulator Flame Retardant Rating: UL94 V-0
  • Contacts Material: Copper alloy, tin plated
  • Gasket Material: Silicon rubber



Ordering Information

You can base on below information to choose the specification and ask quote from us.
  • Rated Current: 3 specifications
    • 20A compatible with 2.5 mm² shielded cable, OD=4.6±0.2 mm or OD=5.6±0.2mm
    • 25A compatible with 4 mm² shielded cable, OD= 5.3±0.3 mm
    • 40A compatible with 6 mm² shielded cable, OD= 6.4±0.2 mm
  • Key: 4 keys,  A, B, C, D

Drawing



Overall Dimensions

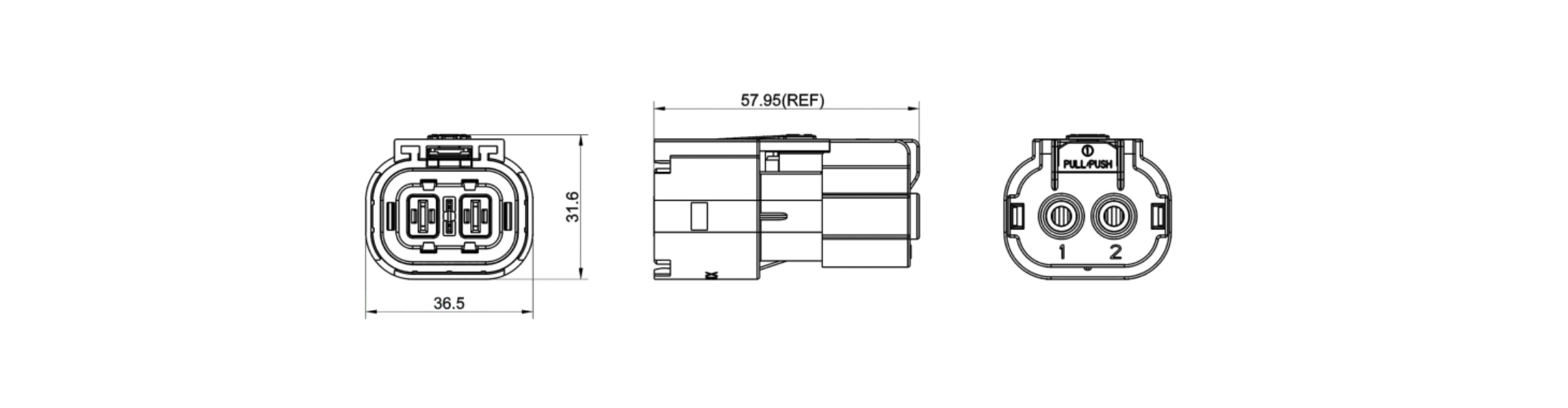

W1P-A 2 Pin 20A 25A 40A Plastic Plug-Overall Dimensions
