From PDU to Air Conditioning Harness, 6mm², 2.6m

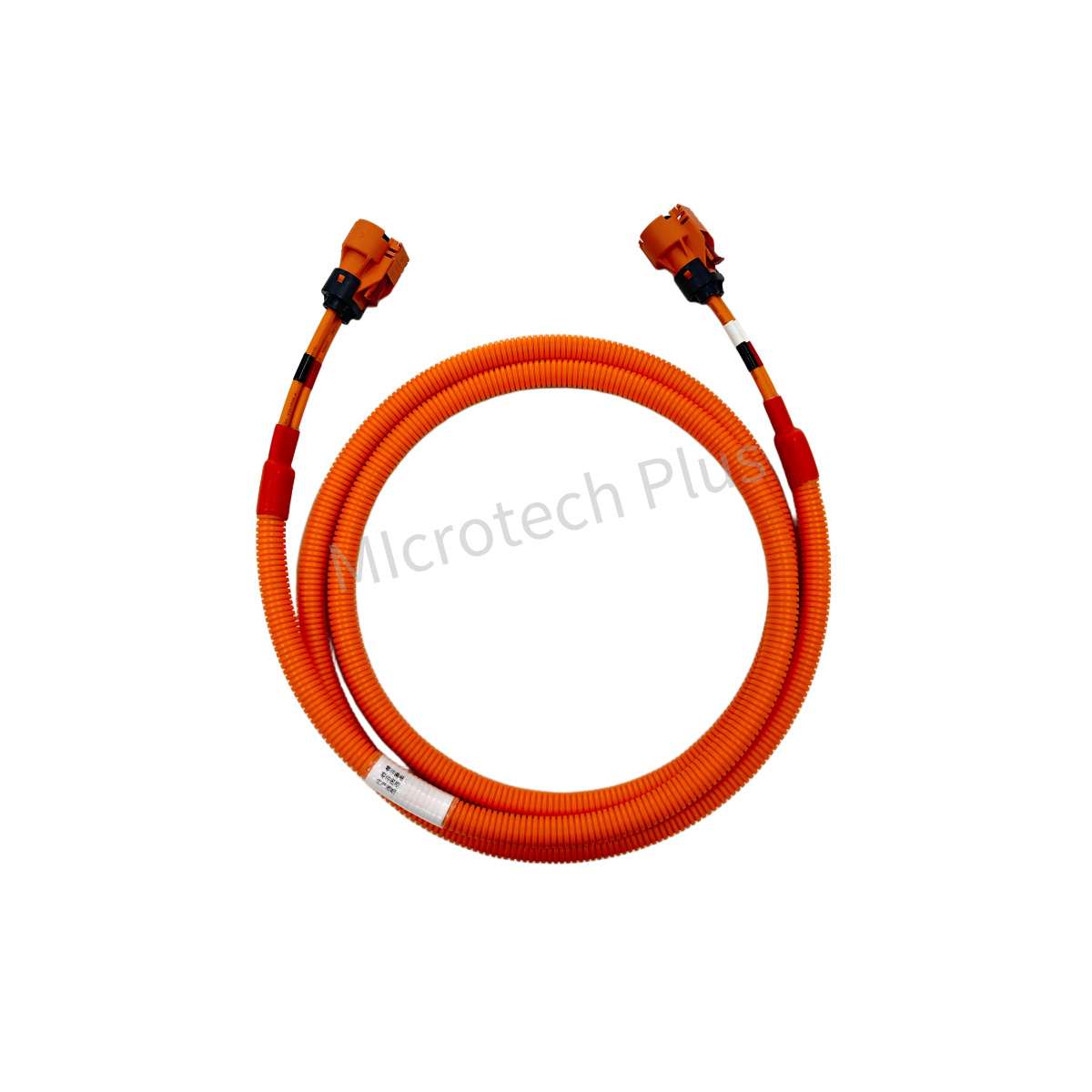

AC Harness 1-From PDU to Air Conditioning 6sq 2.6m

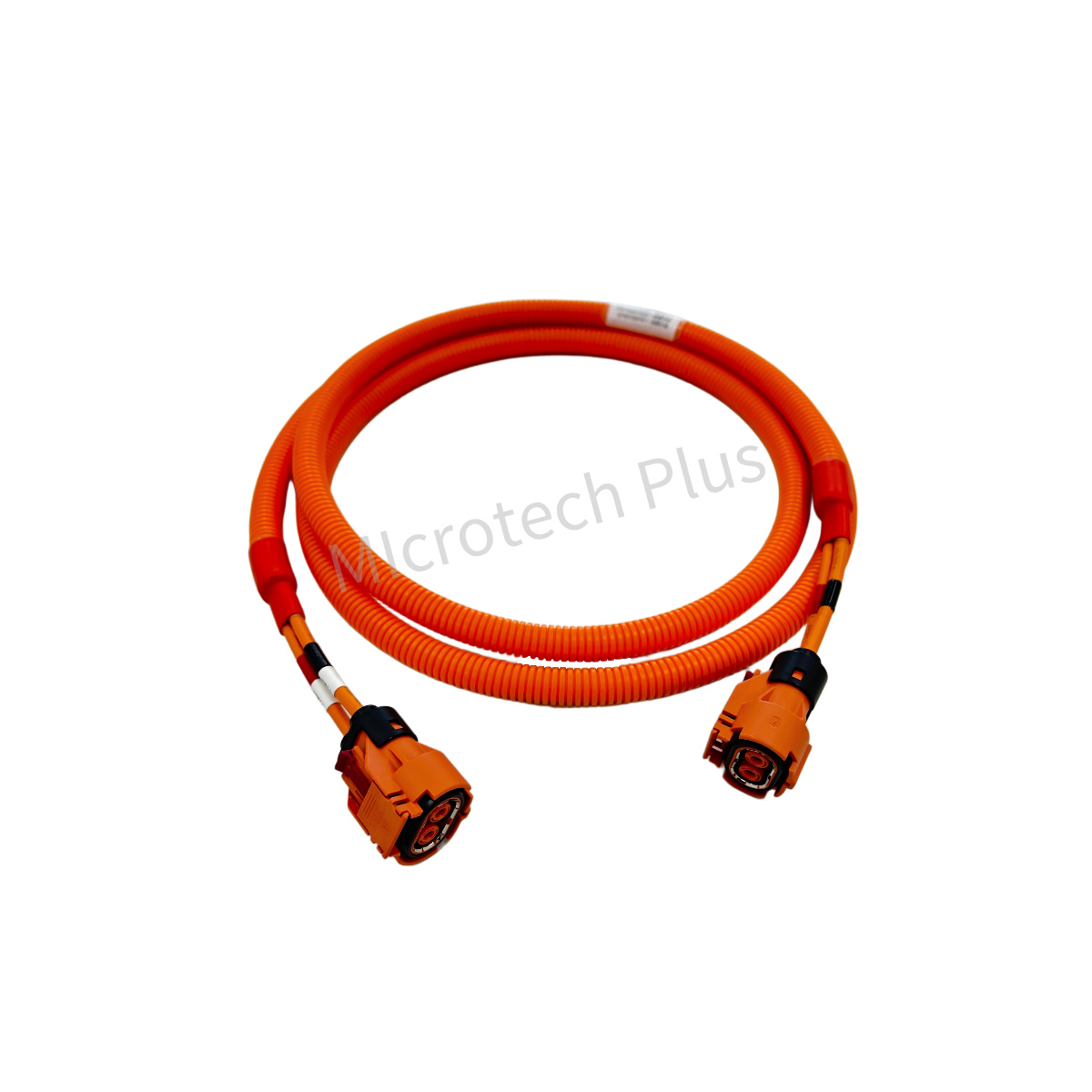

AC Harness 2-From PDU to Air Conditioning 6sq 2.6m

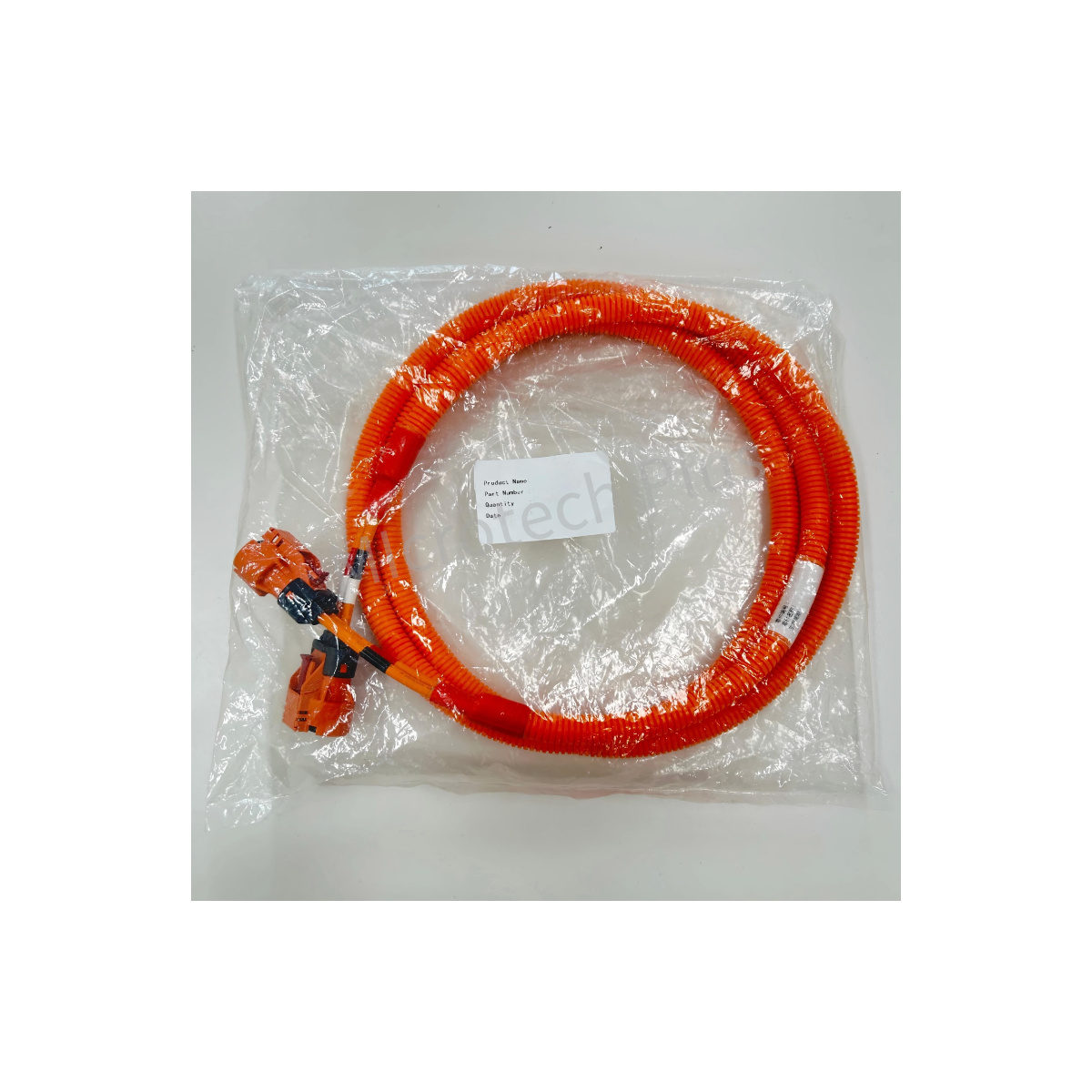

AC Harness 3-From PDU to Air Conditioning 6sq 2.6m
Categories , Tags ,

This is AC harness, connecting from PDU to air conditioning system.

Additional information

Application

Electric Vehicle (EV)
Series Name

K5
Standard

ISO
Voltage

1500V
Current

40A
Cable Gauge

6mm²
Length

2.6m
Ask For Quote

Product Details：

Technical requirements:

This is AC harness, connecting from PDU to air conditioning system.

  •  External orange bellows, OD⌀19.
  •  Cable:6mm²‌.
  •  Polarity identification at both ends of the cable with tape (+) red, (-) black.
  • Requests not specified are made by QC/T 29106-2014.
  • Satisfy ROHS.



Cable Information:

  • Specification: orange, 6mm²shielded wire. XLPE
  • Standard: ISO14572
  • Voltage: 1500V
  • Operating Temperature: -40℃～+125℃



Drawing

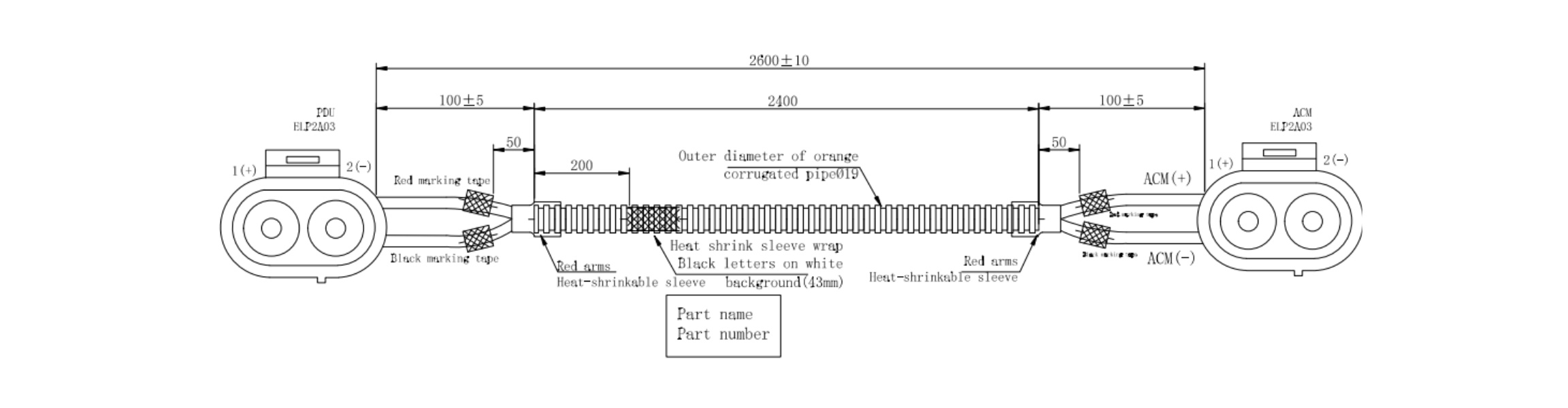

AC Harness-From PDU to Air Conditioning 6sq 2.6m-Drawing
