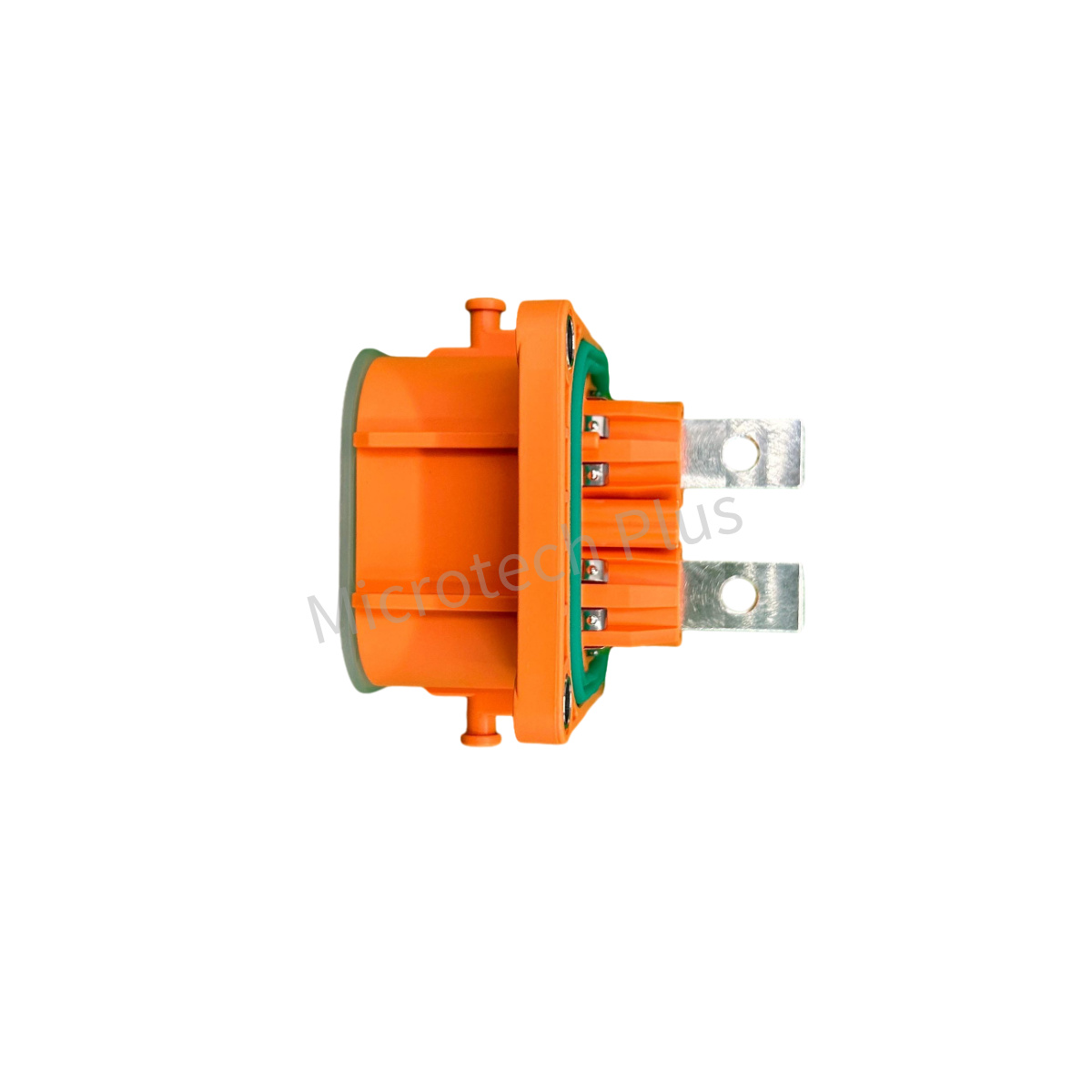

W1P 2 Pin 80A 120A 150A 200A Plastic Receptacle

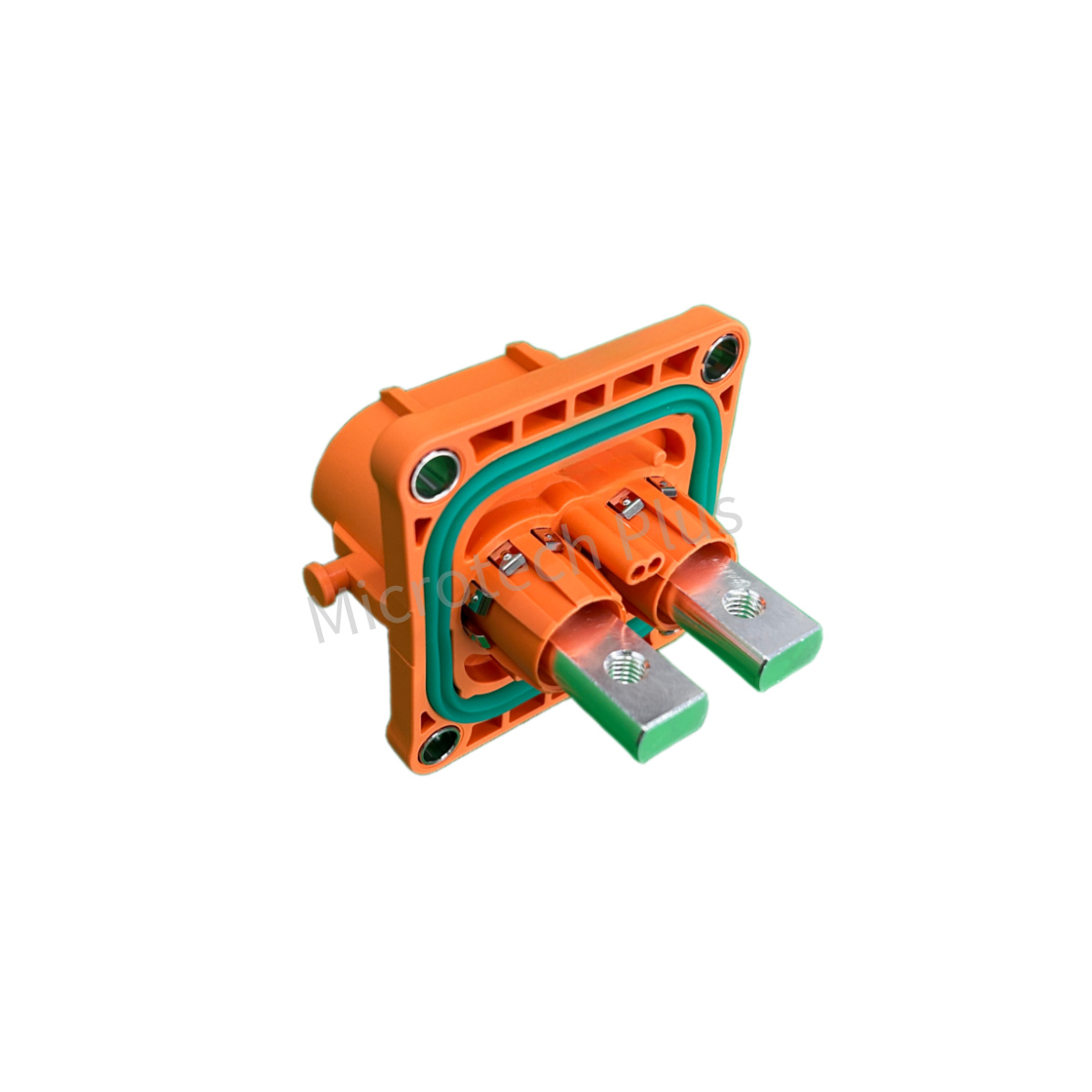

EV Plastic 2 Pin 80A 120A 150A 200A Connector-Receptacle 1-W

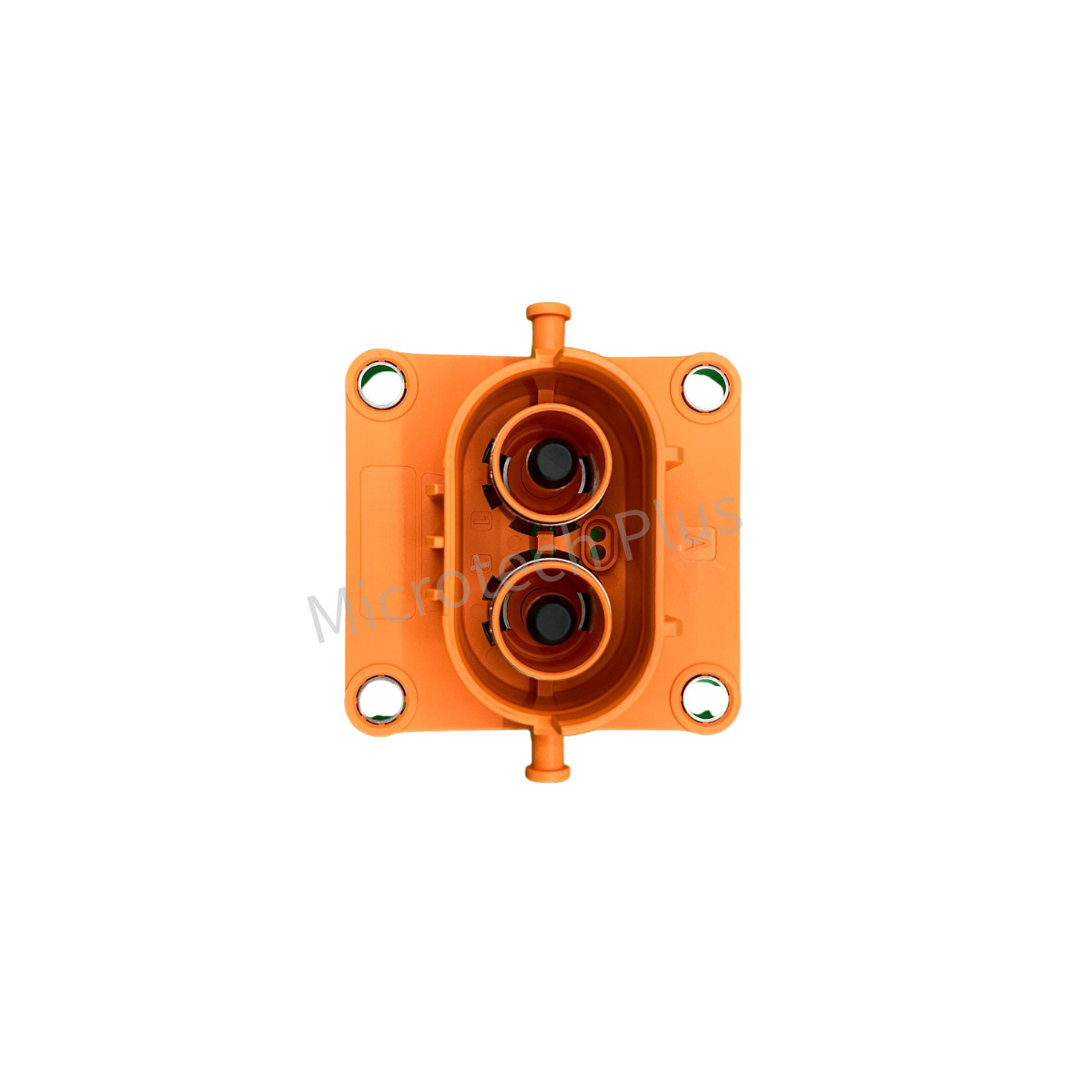

EV Plastic 2 Pin 80A 120A 150A 200A Connector-Receptacle 2-W

EV Plastic 2 Pin 80A 120A 150A 200A Connector-Receptacle 3-W

Categories EV Connector, EV Plastic Power Connector Tags 120A, 150A, 2 pin, 200A, 80A, HVIL, Power Connector

This product (receptalce) is normally applied to high current units connection in the Electric Vehicle (EV), like battery pack, motor controller, PDU etc.

Additional information

Application	Electric Vehicle (EV)
Standard	IEC
Material	Plastic
Voltage	1000V
Current	120A, 150A, 200A, 80A
Pin No.	2 Pins
Plug/Receptacle	Receptacle
Straight or Right Angle	Straight
HVIL or Not	HVIL or No HVIL
Shielding or Not	Shielding
IP Degree	IP67

Product Details：

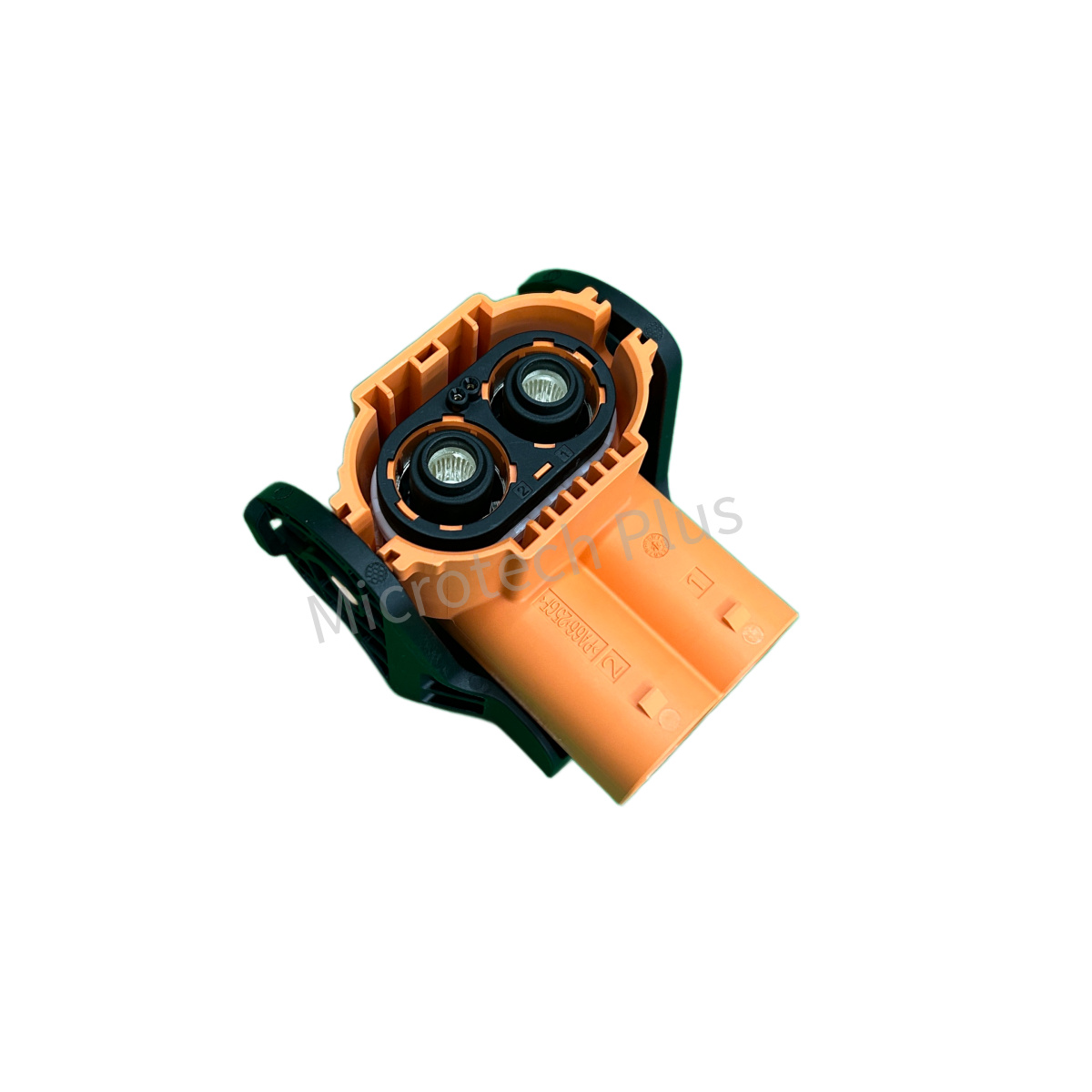

The mated plug is as below.

General Information

This is an EV plastic 2 pins connector (Plug), and rated current can be 130A, 200A, 250A, and 300A. It mainly applied to battery positive(+), negtive(-), connection from PDU to MCU, MCU to Motor, charging inlet to battery system, and between different battery packs, etc.

Features and Advantages

Safe and reliable design and structure
Superior performance, anti-misinsertion, secondary unlocking, multi-key
Straight and right angle types are available for choosing

Key Specifications

Rated Voltage: DC 1000V
Rated Current: 80A, compatible with 16 mm² wire; 120A, compatible with 25 mm² wire; 150A, compatible with 35 mm²; 200A, compatible with 50 mm².
Withstand Voltage: AC 3000V
Insulation Resistance: ≥3000MΩ Min
Protection Rating: IP67
Flame Retardant Rating: UL94-V0
Vibration Rating: USCAR-2 V2
Mechanical Life: 500 times/cycles min.
Ambient Temperature: -40℃- +125℃
HVIL Function: Yes
Shielding: 360°
Salt Spray Resistance: 96 Hours
Test Stardard: USCAR-2

Ordering Information

You can base on below information to choose the specification and ask quote from us.

Specification No. 1
- Rated current: 80A, compatible with 16mm² cable.
- Keys: A, B, D, E (Just structure is different, same color.
Specification No. 2
- Rated current: 120A, compatible with 25mm² cable.
- Keys: A, B, D, E (Just structure is different, same color)
Specification No. 3
- Rated current: 150A, compatible with 35mm² shielding cable.
- Keys: A, B, D, E (Just structure is different, same color)

Specification No. 4
- Rated current: 250A, compatible with 35mm² cable.
- Keys: A, B, D, E (Just structure is different, same color)

Drawing

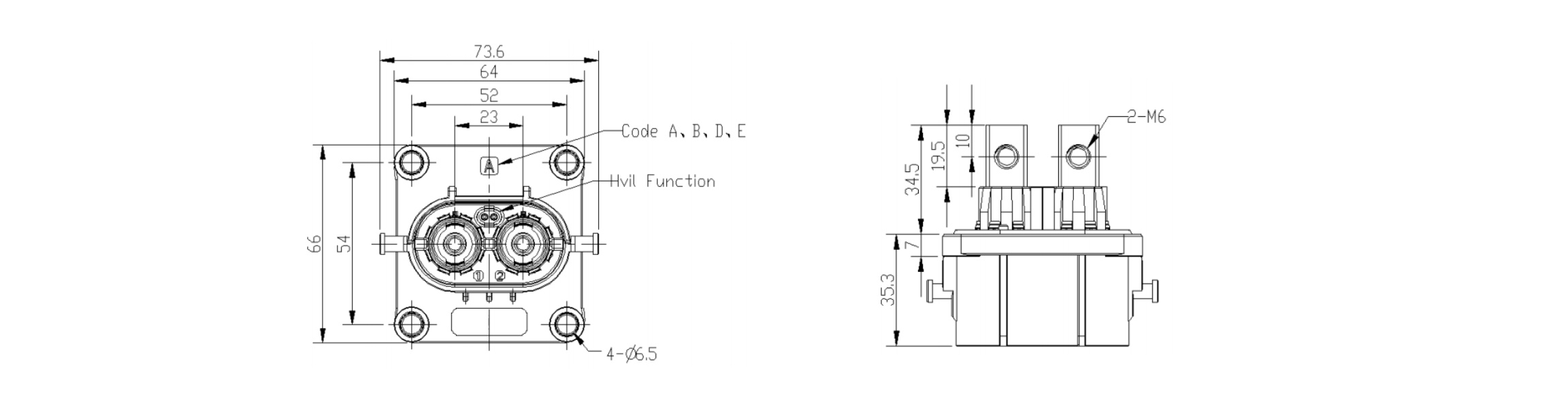

Overall Dimensions

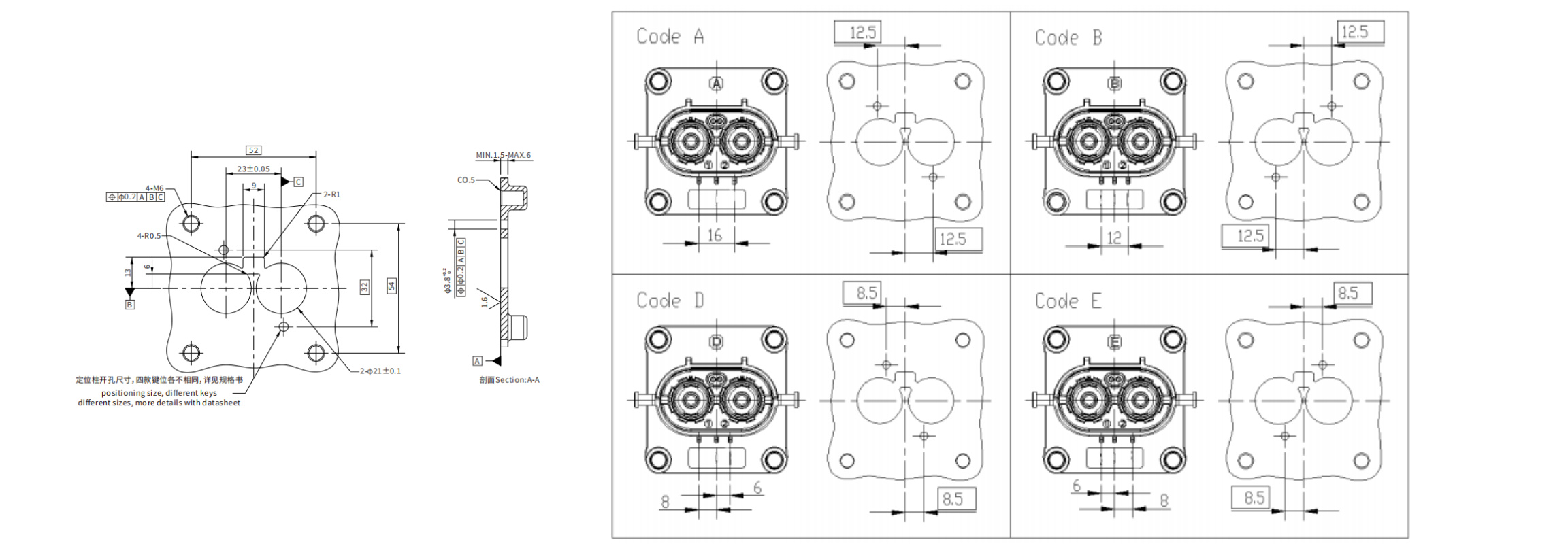

Installation Dimensions
