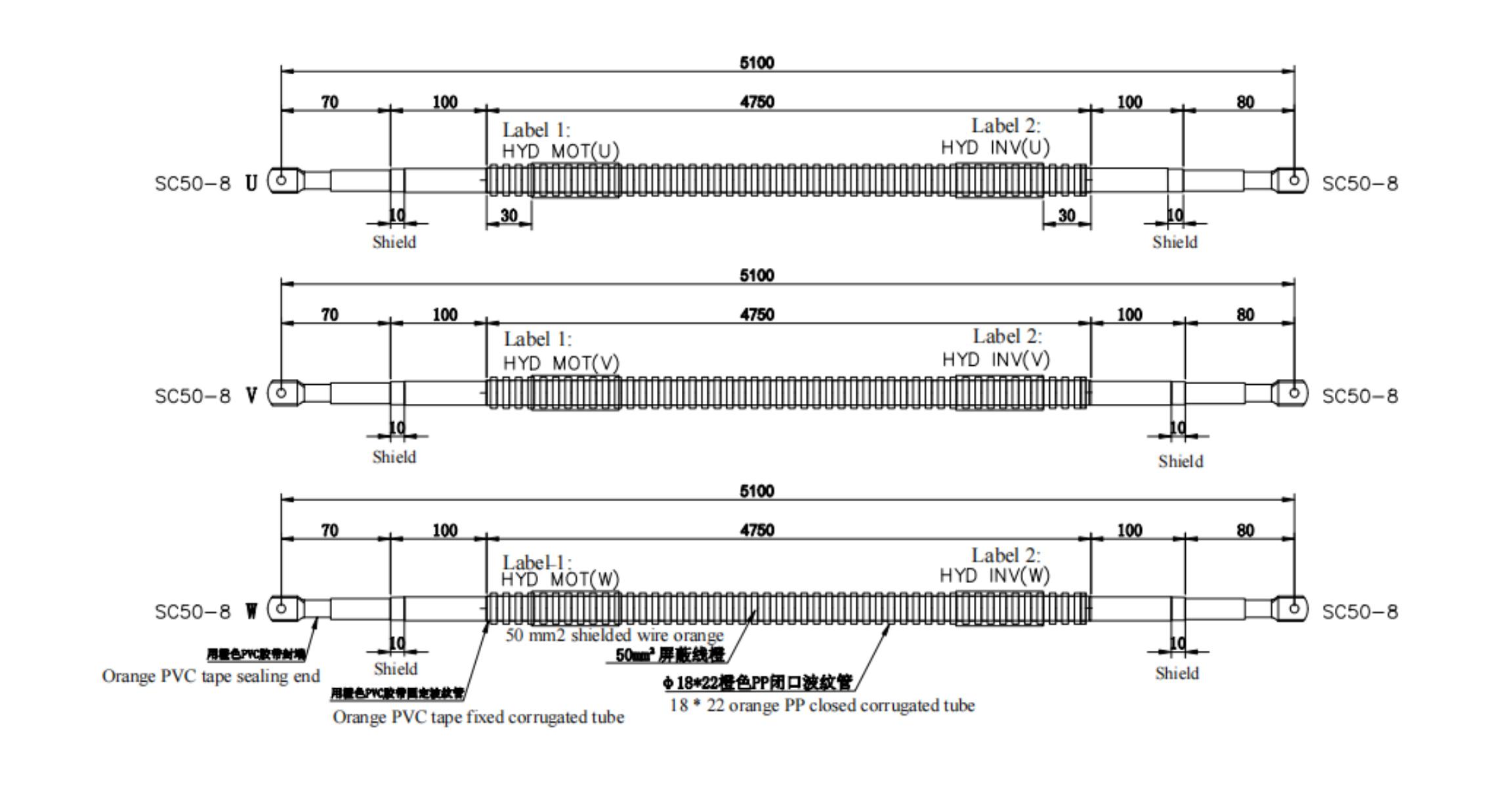

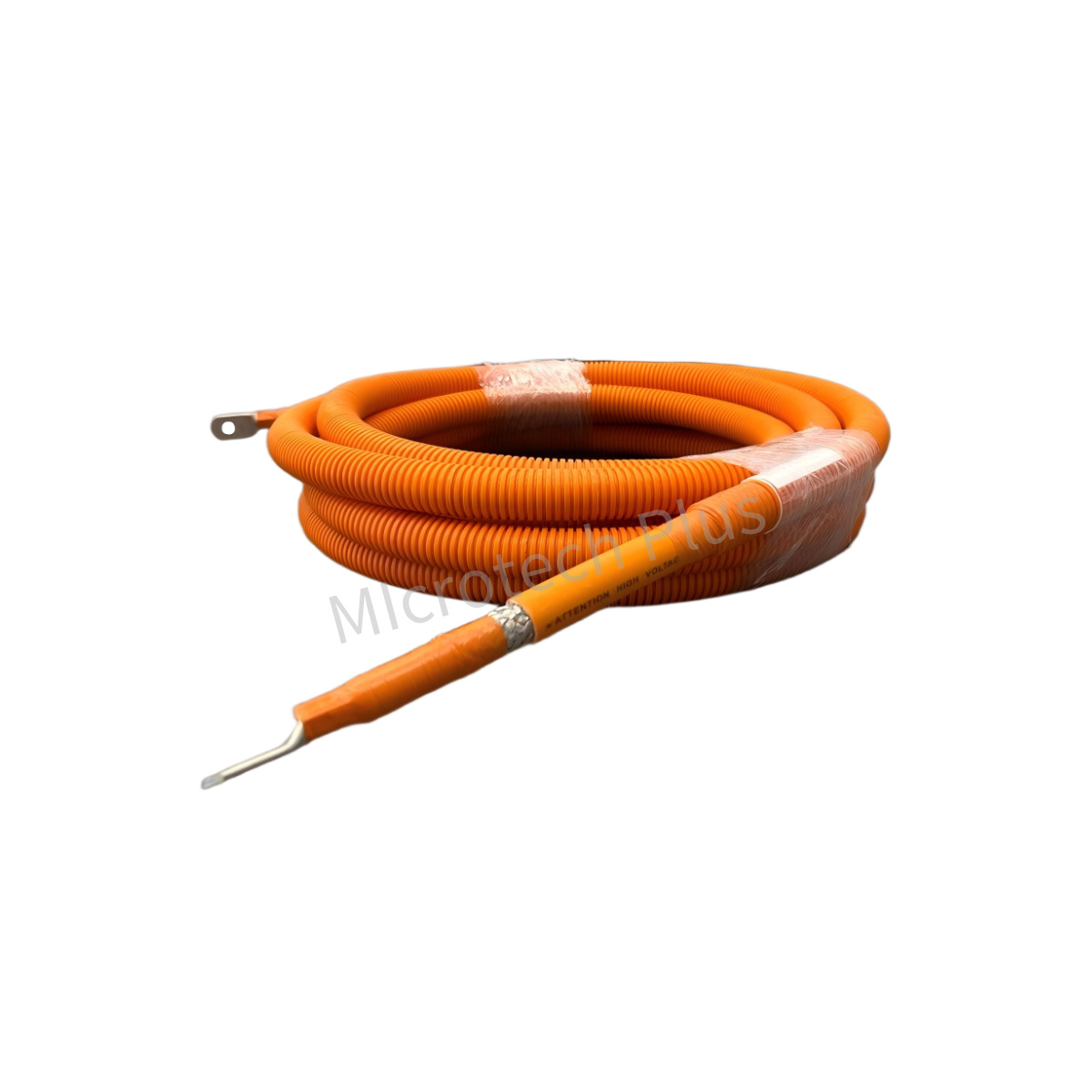

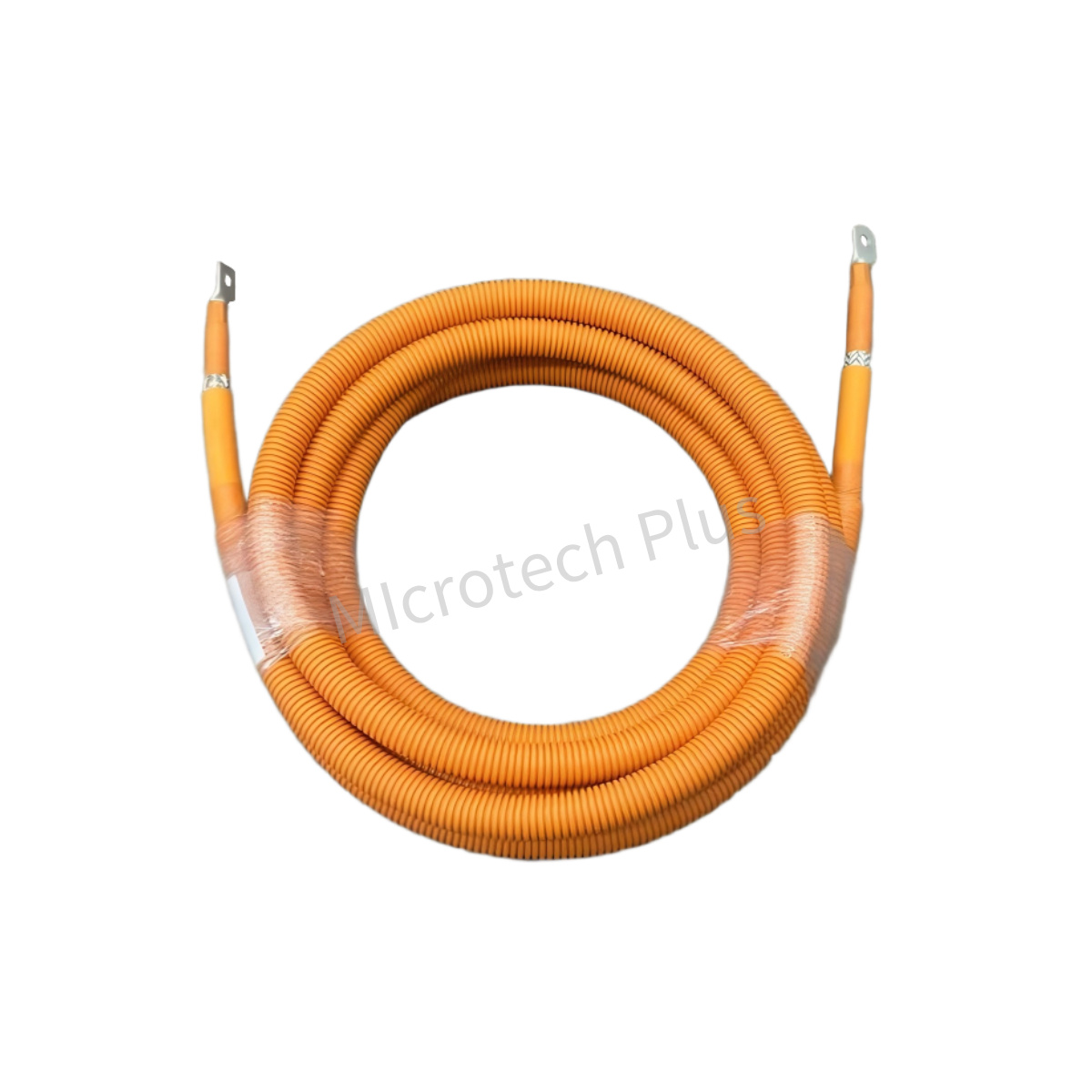

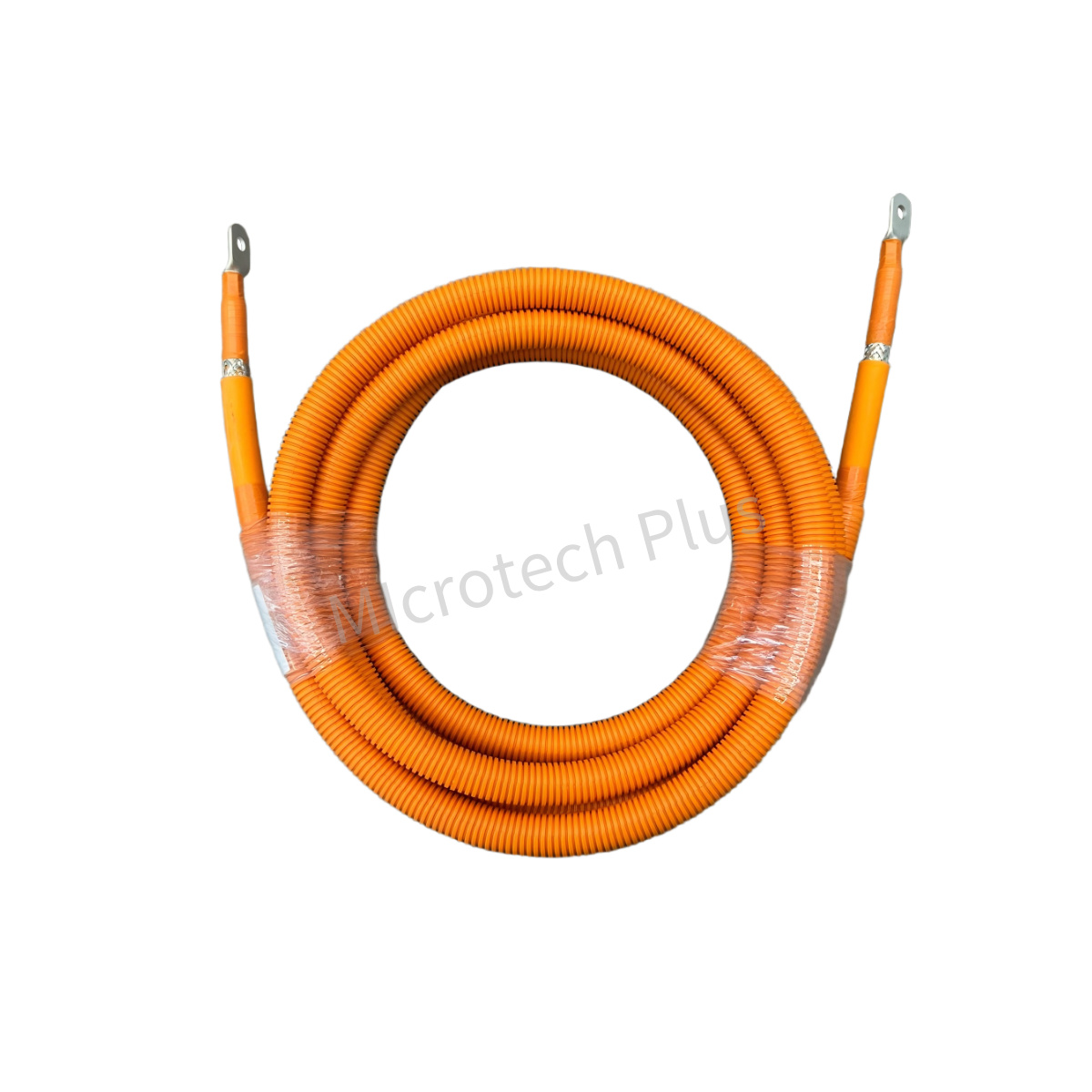

The connector and terminal spiral section should be sealed with orange insulation tape at the front end of the joint.
The end part of the connector should be wrapped with tape.
The high-voltage wiring harness meets the rated voltage of DC1500V, withstand voltage of 2500VAC for 1 minute, and has no breakdown.
The insulation resistance of the high-voltage wire harness is greater than 200MΩ.
The flame retardancy of high-voltage wire harness raw materials meets the requirements of horizontal combustion GB/T 2408 HB level and vertical combustion GB/T 2408 V-0 level.
The high-voltage wiring harness circuit should have no short circuit or open circuit during the power on test.
Main label: 60 * 30mm, externally protected with transparent heat shrink tubing.
Technical requirements: If dimensions are not specified, they shall be made in accordance with QC/T29106-2014 “Technical Specifications for Automotive Low Voltage Wire Bundles”.
Meet the requirements of the latest ROHS standard “List and Limit Standards for Hazardous Substances Control”.
