W1M 19 Pin 13A Metal Plug

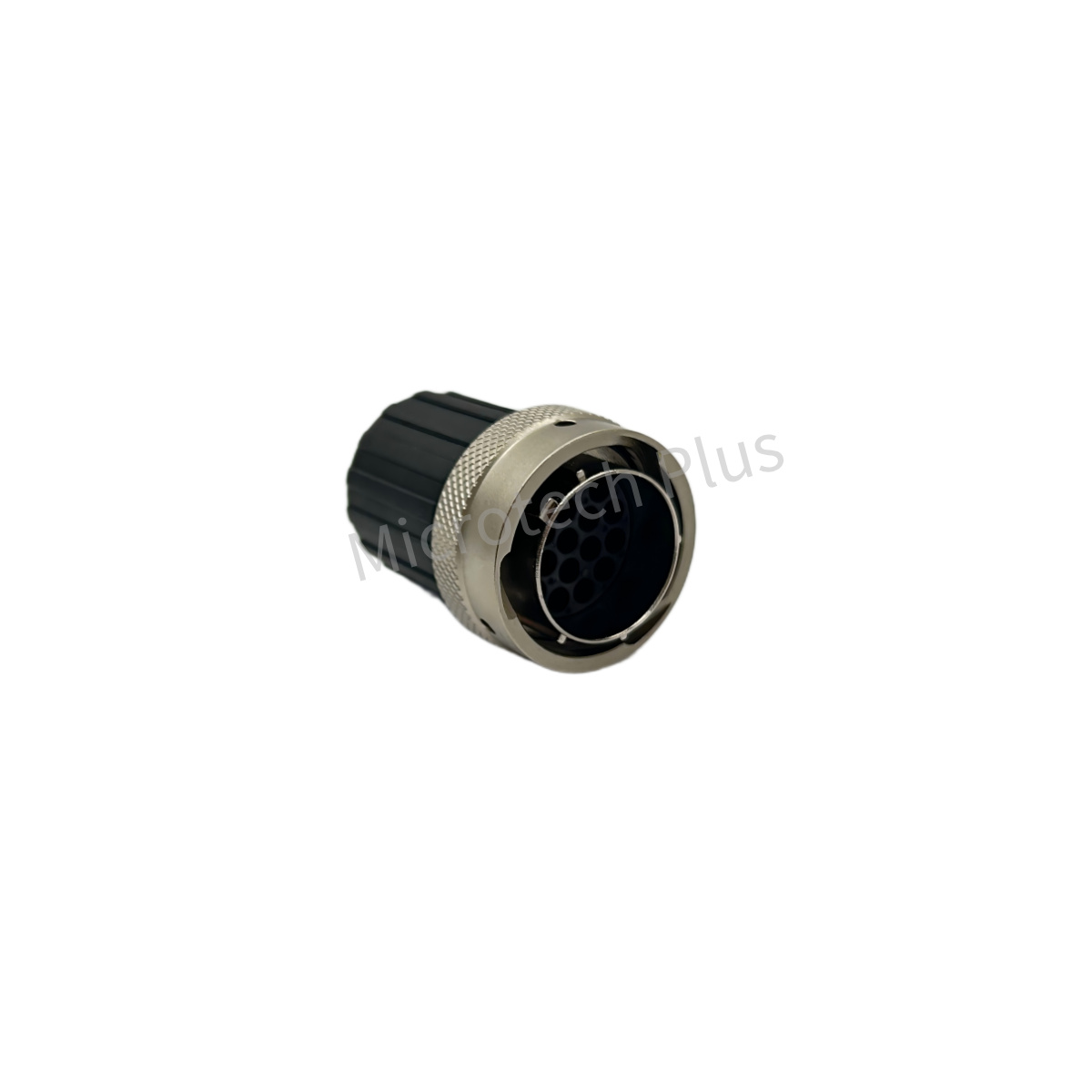

EV Metal 19 Pin 13A Signal Connector-Plug 1-W

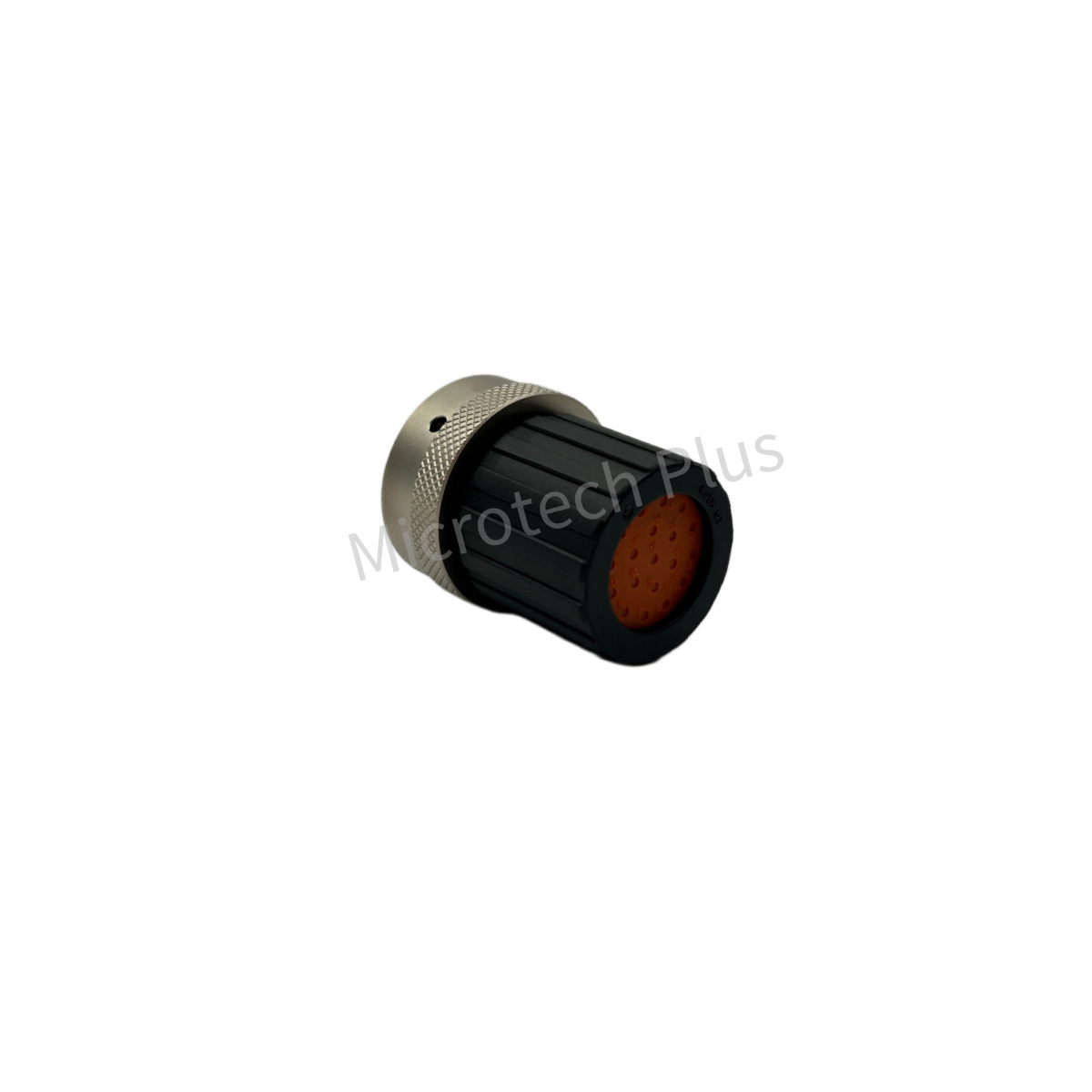

EV Metal 19 Pin 13A Signal Connector-Plug 2-W

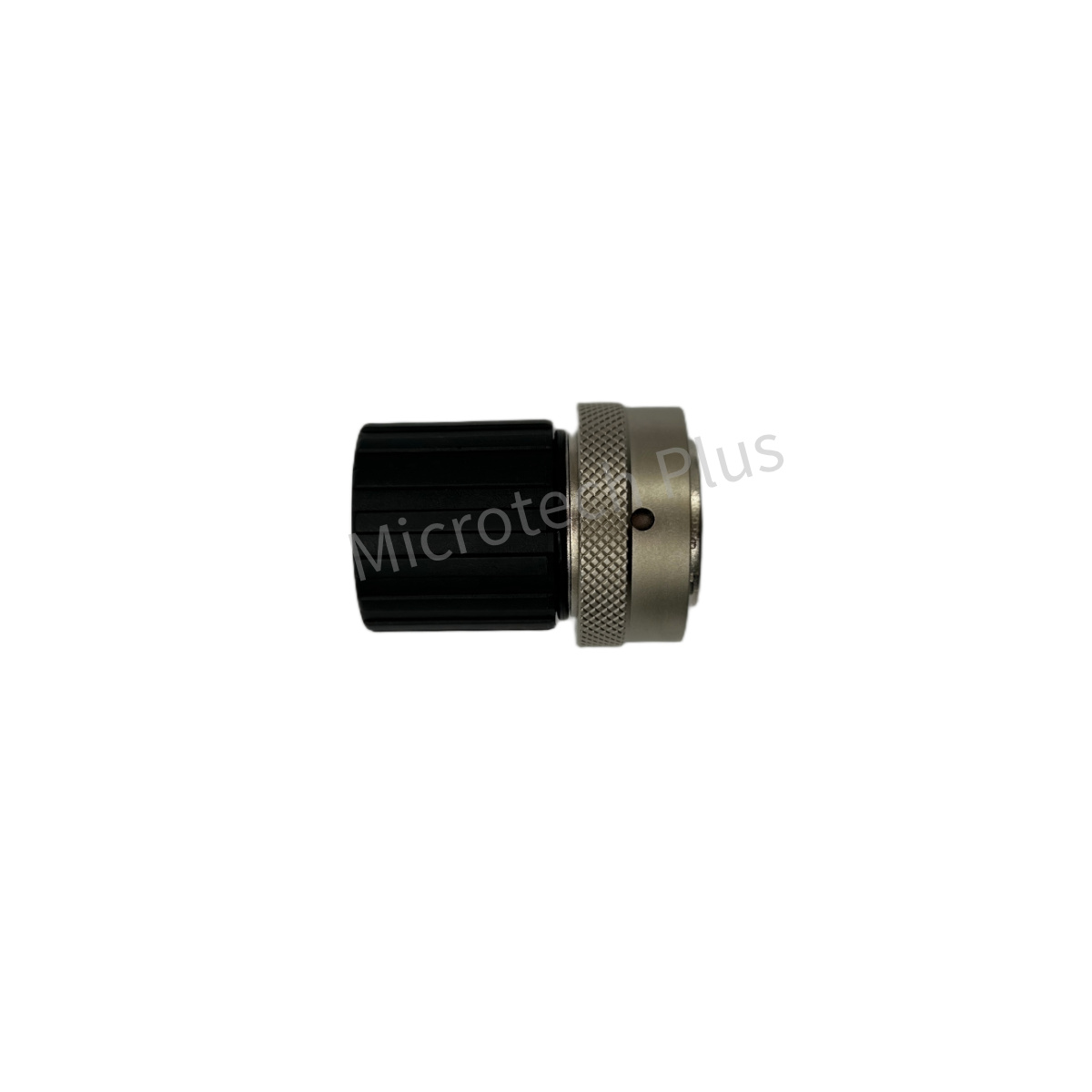

EV Metal 19 Pin 13A Signal Connector-Plug 3-W

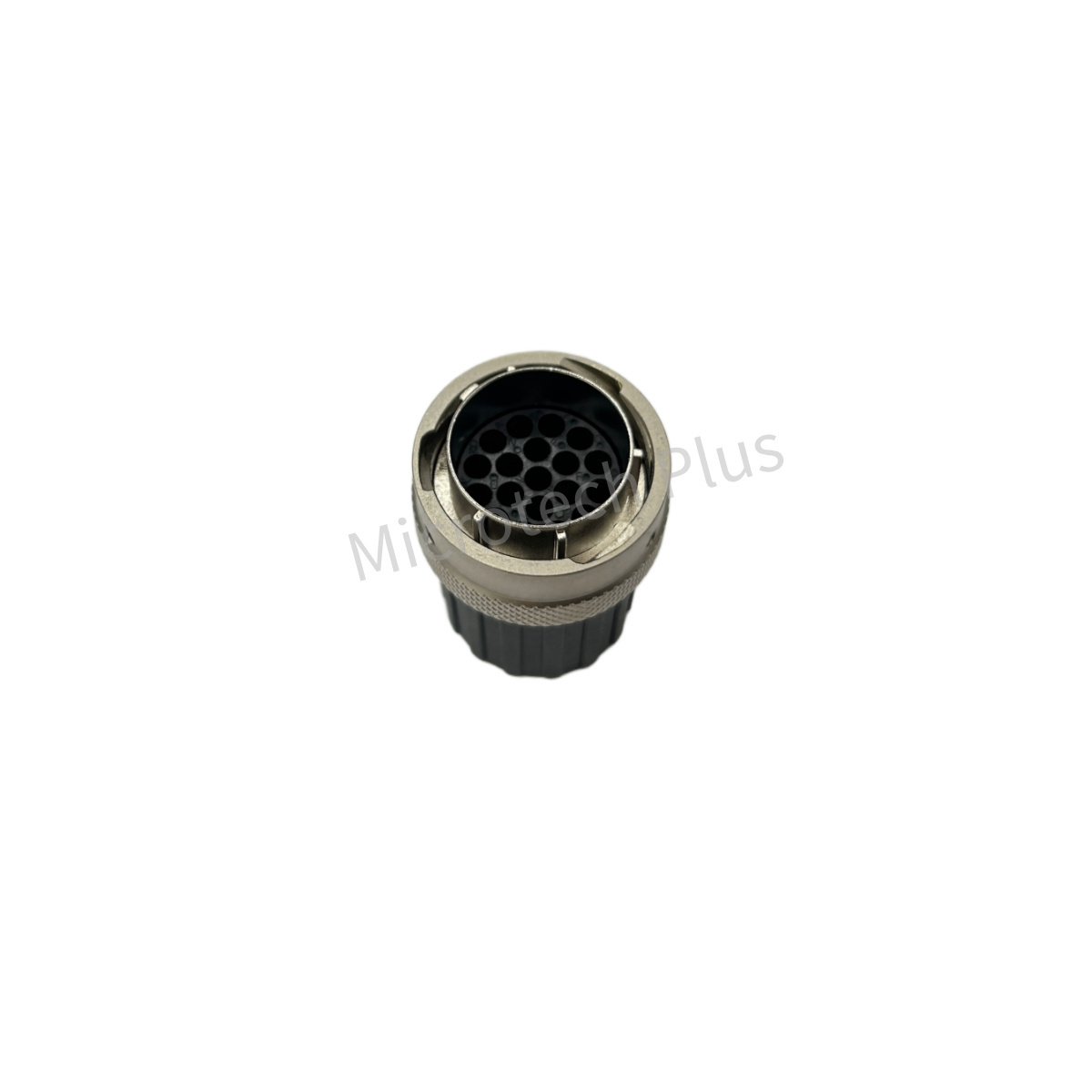

EV Metal 19 Pin 13A Signal Connector-Plug 4-W

Categories EV Connector, EV Metal Signal Connector Tags 13A, 19 pin, Signal Connector

This metal 19 pins signal connector (Plug) is primarily used for signal transmission within electric vehicles, specifically in electronic units such as the PDU, battery, and DCDC converter.

Additional information

Application	Electric Vehicle (EV)
Series Name	W1M
Standard	IEC
Material	Metal
Voltage	300V
Current	13A
Pin No.	19 pins
Signal or Power	Signal
Plug/Receptacle	Plug
Straight or Right Angle	Straight
HVIL or Not	No HVIL
Shielding or Not	No Shield, Shielding or No Shield
IP Degree	IP67

Product Details：

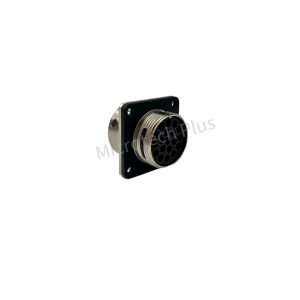

The mated receptacle is as below.

General Information

This metal 19 pins signal connector (Plug) is primarily used for signal transmission within electric vehicles, specifically in electronic units such as the PDU, battery, and DCDC converter.

Features and Advantages

Fast connection and disconnection
High terminal density and compact size.
Environmental resistance and high reliability
Ability to withstand high shock and vibration.

Key Specifications

Rated Voltage: 300V AC/DC
Rated Current: 13A @ambient temperature 30℃
Insulation Resistance: ≥ 5000 MΩ
Withstand Voltage: 2000 V DC
Protection Rating: IP67
Ambient Temperature: -40℃- +125℃
Pin No.: 19 Pins
Wire Gauge:
- Pin type 1 (bigger one): 18~16 awg wire (0.75-1.5 mm²)
- Pin type 2 (smaller one): 22~20 awg wire (0.35-0.5 mm²)
- Socket type 1 (bigger one): 18~16 awg wire (0.75-1.5 mm²)
- Socket type 2 (smaller one): 22~20 awg wire (0.35-0.5 mm²)
Electromagnetic shielding: Yes, 360°
Mechanical Life: 500 times/cycles
Housing Material: Zinc alloy, aluminum alloy
Housing Plating:Nickel plating
Insulator Material: PA66 / PBT
Insulator Flame Retardant Rating: UL94 V-0
Contact (Pin and Socket) Material:Copper alloy.
Contact Plating: Gold Flash
Gasket Material: Silicon Rubber

Ordering Information

This is a 19 pins signal metal connector (plug), please base on below information to choose certain specification and ask quote from us.

Plug Type: 2 types (both with backshell), Male Plug (loaded with pin contact), Female Plug (loaded with socket contact). Drawings are below.
Key: 5 keys, No key, W, X, Y, Z.
Contact and Wire Gauge: Please be noted that the contacts need to be ordered seperately.
- Pin type 1 (bigger one): 18~16 awg wire (0.75-1.5 mm²)
- Pin type 2 (smaller one): 22~20 awg wire (0.35-0.5 mm²)
- Socket type 1 (bigger one): 18~16 awg wire (0.75-1.5 mm²)
- Socket type 2 (smaller one): 22~20 awg wire (0.35-0.5 mm²)

Drawing

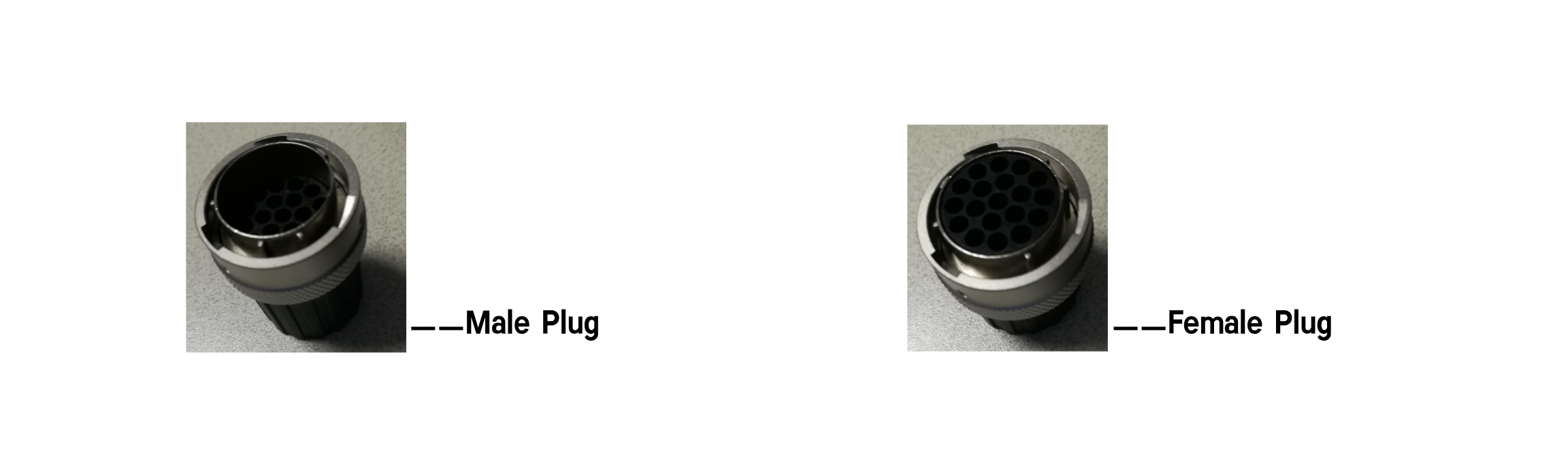

Physical Object Image

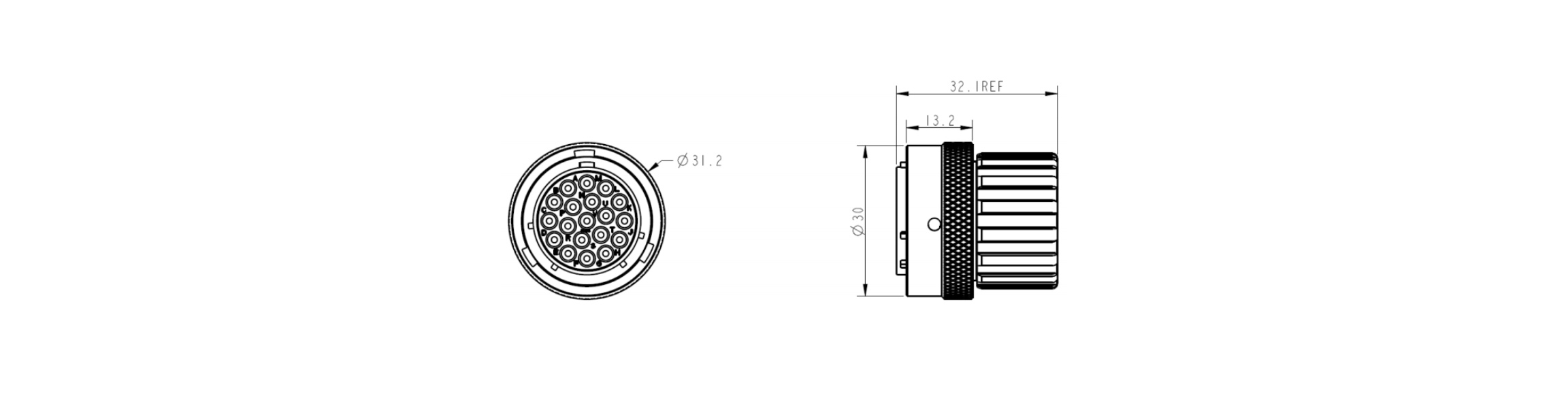

Overall Dimensions

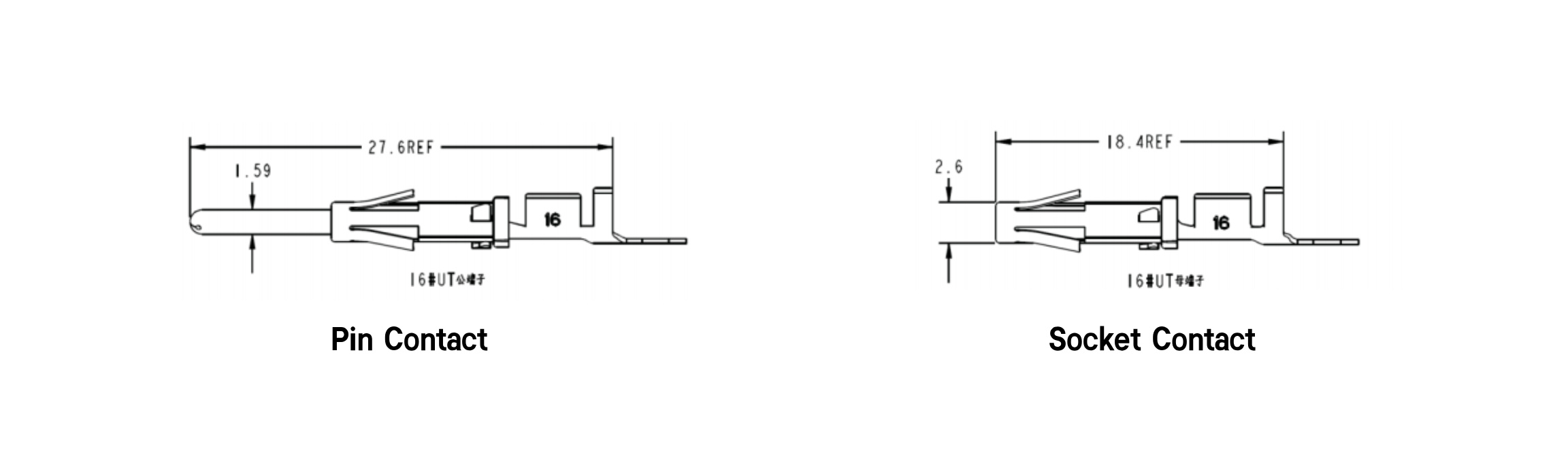

Pin Contact And Socker Contact- Overall Dimensions
